Goodwe HK1000 Quick Installation Manual
Smart meter
Hide thumbs
Also See for HK1000:
- Quick installation manual (9 pages) ,
- Quick installation manual (75 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Goodwe HK1000
Summary of Contents for Goodwe HK1000

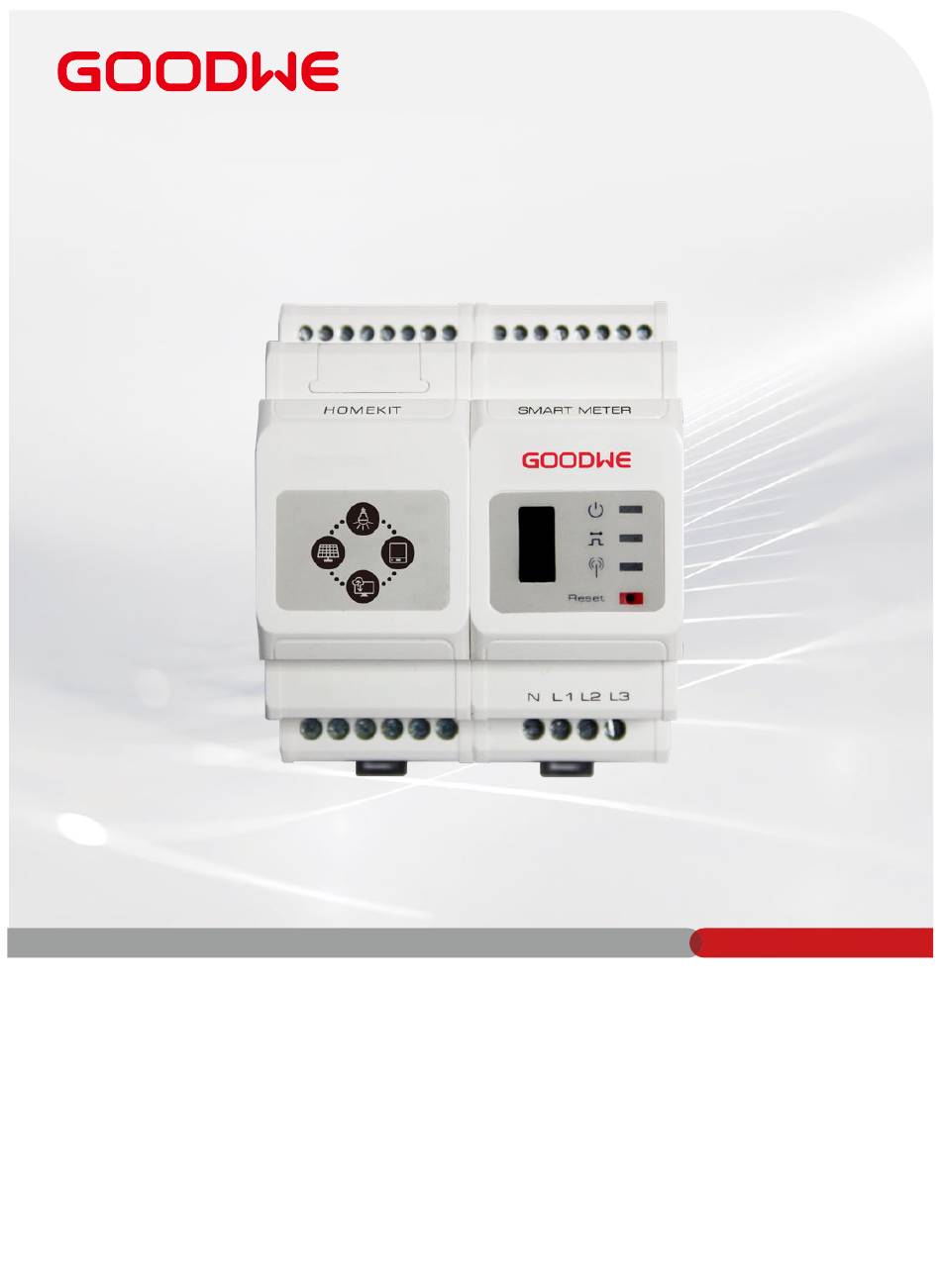

- Page 1 Quick Installation Guide Smart Meter (HK1000/HK3000) V1.1-2022-06-28...
-
Page 2: Safety Disclaimer
Strictly follow the installation, operation, and configuration instructions in this guide and user manual. The manufacturer shall not be liable for equipment damage or personal injury if you do not follow the instructions. For more warranty details, please visit https://en.goodwe.com/warranty. Safety Disclaimer WARINING •... -
Page 3: Eu Declaration Of Conformity
• Restrictions of Hazardous Substances Directive 2011/65/EU and (EU) 2015/863 (RoHS) • Waste Electrical and Electronic Equipment 2012/19/EU • Registration, Evaluation, Authorization and Restriction of Chemicals (EC) No 1907/2006 (REACH) You can download the EU Declaration of Conformity on https://en.goodwe.com. -
Page 4: Technical Parameters
Quick Installation Guide V1.1 -2022 -06-28 Technical Parameters Model HK1000 HK3000 Grid Single phase Three phase Nominal Voltage (Vac) 110/230 230/400 Voltage Range (V) 100-240 Input Voltage Nominal AC Grid 50/60 Frequency (Hz) Current CT In (A) 1CT: 120 3CTs: 120/200... -
Page 5: Product Introduction
Quick Installation Guide V1.1 -2022 -06-28 Product Introduction Indicators Reserved Port Reset Button Note: CT3 - and CT3 + only for HK3000. -
Page 6: Installation
Quick Installation Guide V1.1 -2022 -06-28 Installation Packing List HOMEKIT SMART METER Reset Smart Meter x 1 Screwdriver x 1 USB Plug x 1 PIN terminal x 4 Antenna x 1 installation and Cable Connection... -
Page 7: Wiring System
Quick Installation Guide V1.1 -2022 -06-28 Wiring System HK1000 Inverter Utility Household Grid Meter Loads WiFi Antenna Fuse 0.5A Network Cable Router • Recommended cable connected to the voltage input terminal: 1mm (17AWG). • Do not remove the short circuit wire between L1 and L2. - Page 8 Quick Installation Guide V1.1 -2022 -06-28 HK3000 Inverter Utility Grid Household Meter Loads WiFi Antenna Fuse 0.5A Network Cable Router • Recommended cable connected to the voltage input terminal: 1mm (17AWG). • CT direction: House (K)-->Grid (L).
- Page 9 Quick Installation Guide V1.1 -2022 -06-28 Commissioning Power ON Step 1 Connect the HomeKit cables. Step 2 Power on the inverter and make sure that the inverter is working normally. Then the HomeKit is powered on. Commissioning the HomeKit Connect the HomeKit device to the router via WiFi or LAN. For details about seting related parameters, refer to the Wi-Fi/LAN Kit Quick Installation Guide.
- Page 10 Official Website GoodWe Technologies Co., Ltd. No. 90 Zijin Rd., New District, Suzhou, 215011, China www.goodwe.com service@goodwe.com Local Contacts...
