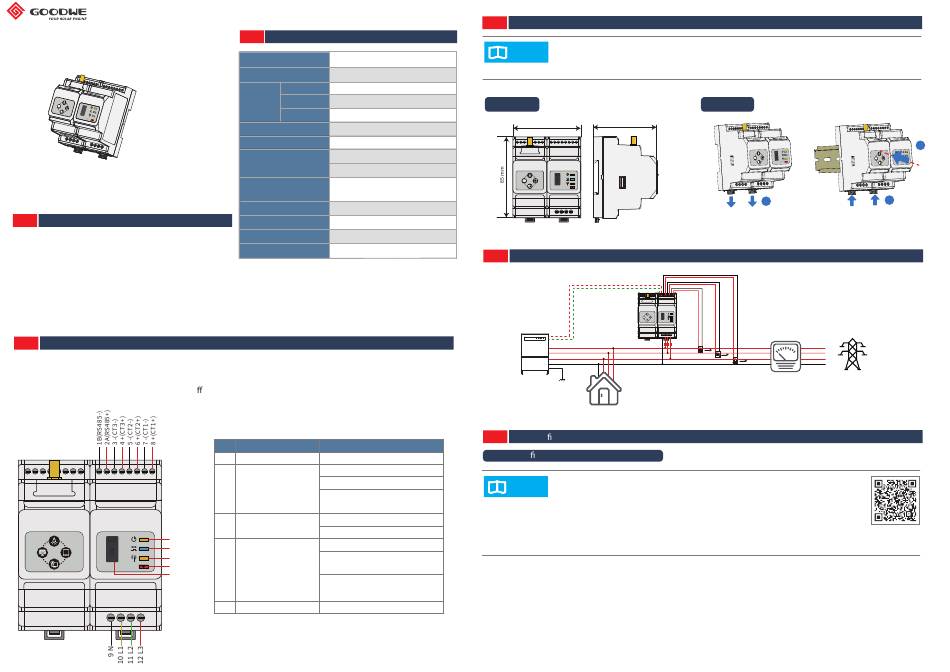

Goodwe HK3000 Quick Installation Instructions

HK3000
Quick Installation Instruction
Ver 1.0
2021-04-06
01 Packing List
1 x HomeKit 3000 (HK3000)
1 x Screwdriver
1 x Quick Installation Instruction
1 x WiFi Antenna
4 x Wiring Terminal
3 x Current Transformer (120A/40mA or 200A/66.7mA CT)
1 x USB Seal
03

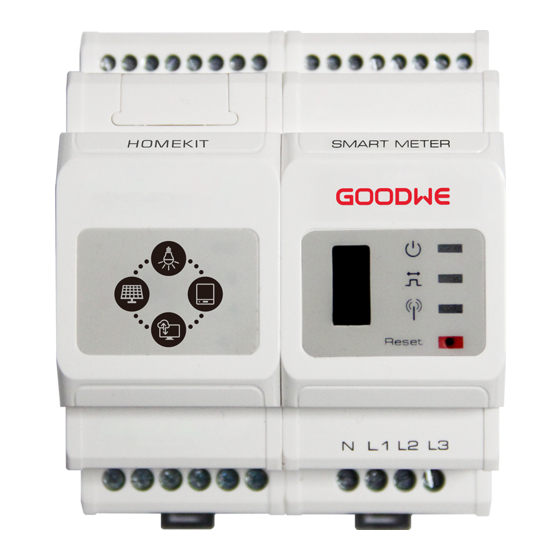

Product Overview
HK3000 is designed as a three-phase meter with three-channel CTs to measure energy power at the grid point.
Together with the measurement of inverter output, you can calculate the household load.
Meanwhile, HK 3000 can upload the data to the cloud server in real time to conduct the measurement, statistics
analysis and management of electric energy at di erent loads. The data cannot be taken as the basis and standard
for electric charging by the grid power company.
HOMEKIT SMART METER
①
②
③
④
⑤
Reset
02 Technical Data
Model
HK3000
Application
Household Loads Monitoring + ARCB
Rated Voltage
3*230V/400V
Voltage Voltage Range
AC 100V~240V
Frequency
50Hz/60Hz
Current Input Range
0.04A~200A
Self-Consumption
< 5W
100M Ethernet
Communication
WiFi
3 LEDs (Power, Energy Consumption,
Interface
Communication), Reset Button
Operating Temperature
-25 ~ +60°C
Storage Temperatute
-30 ~ +70°C
Operating Humidity
< 95%; No Condensation
Altitude
< 2000m
NO. Part Description
Power LED Normal status: ON
1
Consuming: ON
2
Energy consumption LED Steady on: Purchasing from the utility grid
Selling to the utility grid or communicates
3
well with HomeKit: Blinking
Blink once: detecting data transferring
4 Communication LED
Blink 5 times: Reset successfully
Press less than 3s: Meter Reset
Press 5s more or less: Meter Settings
Reset button Initialization
Press more than 10s: Meter Initialize
settings and Clear Energy Data
USB port For after-sales maintenance.
5
04 Equipment Installation
• HK3000 should be installed on a rail and should not be installed outdoors.
NOTE
• When operating the meter, use insulation tools and wear personal protective equipment
to ensure personal safety.
Dimensions
66.5mm
72mm
HOMEKIT SMART METER
Reset
05 Cable Connections
RS485+
RS485-
HK3000
HOMEKIT SMART METER
Inverter
PE
Load
06 APP Con guration
HK3000 Con guration via SolarGo APP
• Search in Google Play/App Store or scan the QR code to download SolarGo
NOTE
APP.
• Make sure the inverter is grid-tied.
• Establish communication between the inverter and SolarGo app via bluetooth
module or WiFi module, and ensure that the communication between them is
normal.
Installation
1
Reset
Grid
Meter
Fuse
L1
CT1
L2
CT2
L3
CT3
N
2
3
SolarGo APP
