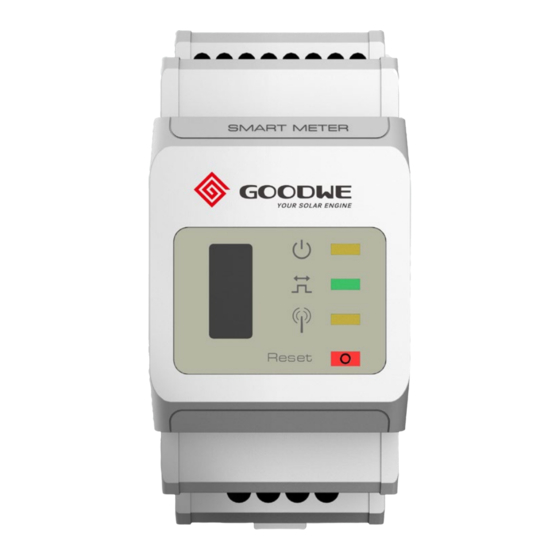

Goodwe GM1000D Quick Installation Manual

Goodwe GM1000D Quick Installation Manual

Smart meter
Hide thumbs Also See for GM1000D:

Advertisement

Quick Installation Guide
Smart Meter
(GM1000D/GM3000/GM1000)
V1.0 -2022-01-25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GM1000D and is the answer not in the manual?

Questions and answers

Summary of Contents for Goodwe GM1000D

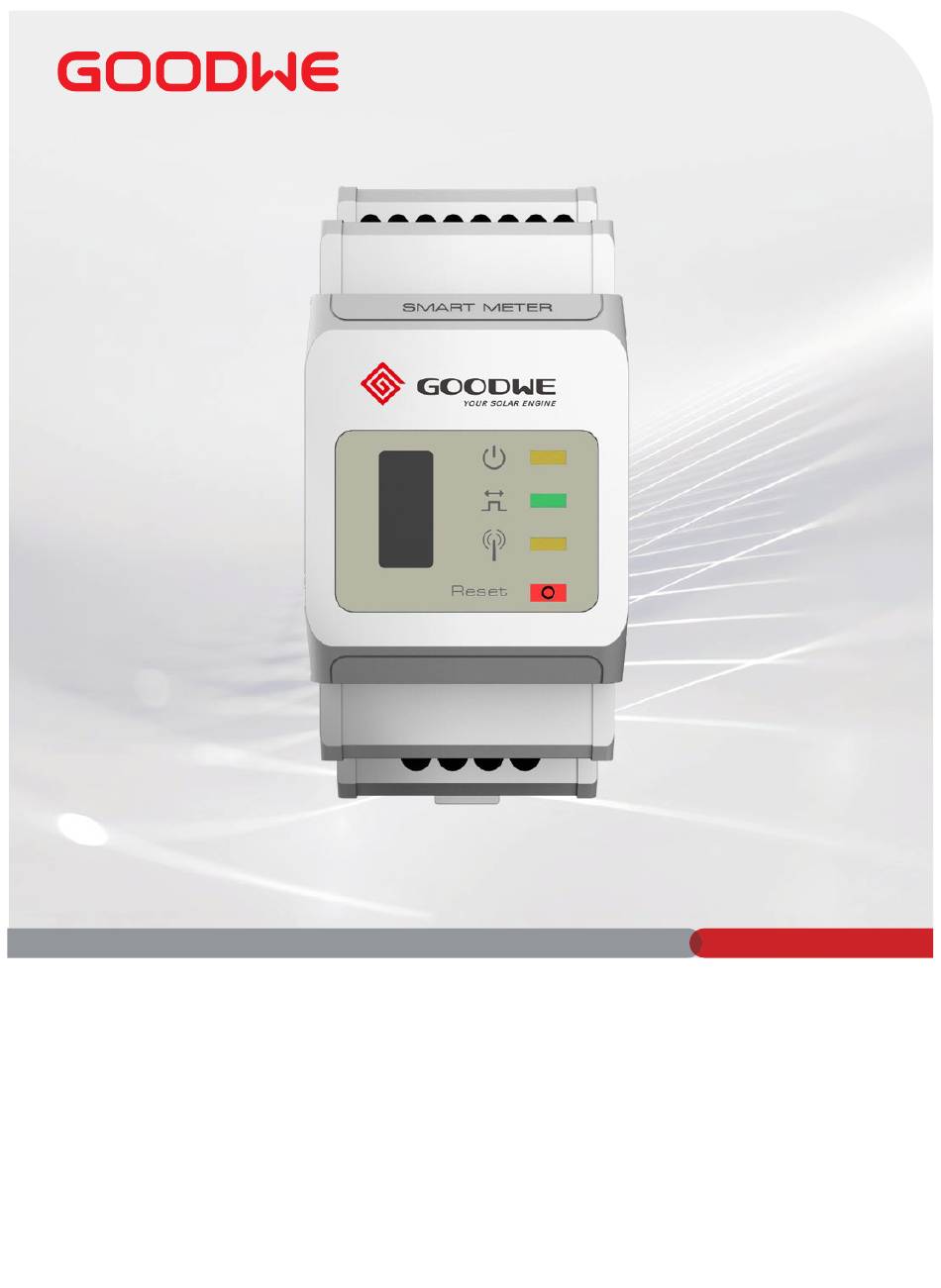

  • Page 1 Quick Installation Guide Smart Meter (GM1000D/GM3000/GM1000) V1.0 -2022-01-25...
  • Page 2: Product Introduction

    Quick Installation Guide V1.0-2022-01-25 Product Introduction Indicators Reserved Port Reset Button...
  • Page 3: Installation

    Quick Installation Guide V1.0-2022-01-25 Installation Packing List PIN terminal Smart Meter x 1 Screwdriver x 1 USB Plug x N x N[2] [1]: For GM1000D and GM3000 only. [2]: GM1000D x 8; GM1000 x 4; GM3000 x 6. Installation and Cable Connection...
  • Page 4: Wiring System

    Quick Installation Guide V1.0-2022-01-25 Wiring System GM1000D Household Utility Grid Meter Grid-Tied AC-Coupled PV Inverter Inverter Loads Fuse 0.5A • Recommended cable connected to the voltage input terminal: 1mm² (17AWG). • CT direction: House (K)-->Grid (L).
  • Page 5 Quick Installation Guide V1.0-2022-01-25 GM1000 Household Meter Inverter Utility Grid Loads Fuse 0.5A • Recommended cable connected to the voltage input terminal: 1mm² (17AWG). • CT direction: House (K)-->Grid (L).
  • Page 6 Quick Installation Guide V1.0-2022-01-25 GM3000 Household Meter Utility Grid Inverter Loads Fuse 0.5A • Recommended cable connected to the voltage input terminal: 1mm² (17AWG). • CT direction: House (K)-->Grid (L).
  • Page 7 Quick Installation Guide V1.0-2022-01-25 Commissioning Power ON Step 1 Connect the smart meter cables. Step 2 Power on the inverter and make sure that the inverter is working normally. Then the smart meter is powered on. Indicator Type Status Description Steady on Power on Power off...
  • Page 8: Technical Parameters

    Quick Installation Guide V1.0-2022-01-25 Technical Parameters Model GM1000D GM1000 GM3000 Application Single-phase Single-phase Three-phase Nominal Voltage 110V/230V 3 x 230V/380V Voltage Voltage Range 100V~240V Frequency 50Hz/60Hz Nominal Current CT in: 120A/40mA Current Input Current Range 0.48A~120A Self-Consumption <3W Current/Voltage/Active Power/Reactive Power/Power...
  • Page 9: Eu Declaration Of Conformity

    • Restrictions of Hazardous Substances Directive 2011/65/EU and (EU) 2015/863 (RoHS) • Waste Electrical and Electronic Equipment 2012/19/EU • Registration, Evaluation, Authorization and Restriction of Chemicals (EC) No 1907/2006 (REACH) You can download the EU Declaration of Conformity on https://en.goodwe.com.
  • Page 10 Official Website GoodWe Technologies Co., Ltd. No. 90 Zijin Rd., New District, Suzhou, 215011, China www.goodwe.com service@goodwe.com Local Contacts...
