Goodwe HomeKit User Manual

HomeKit
USER MANUAL
No. 90 Zijin Rd., New District, Suzhou, 215011, China
service@goodwe.com | www.goodwe.com

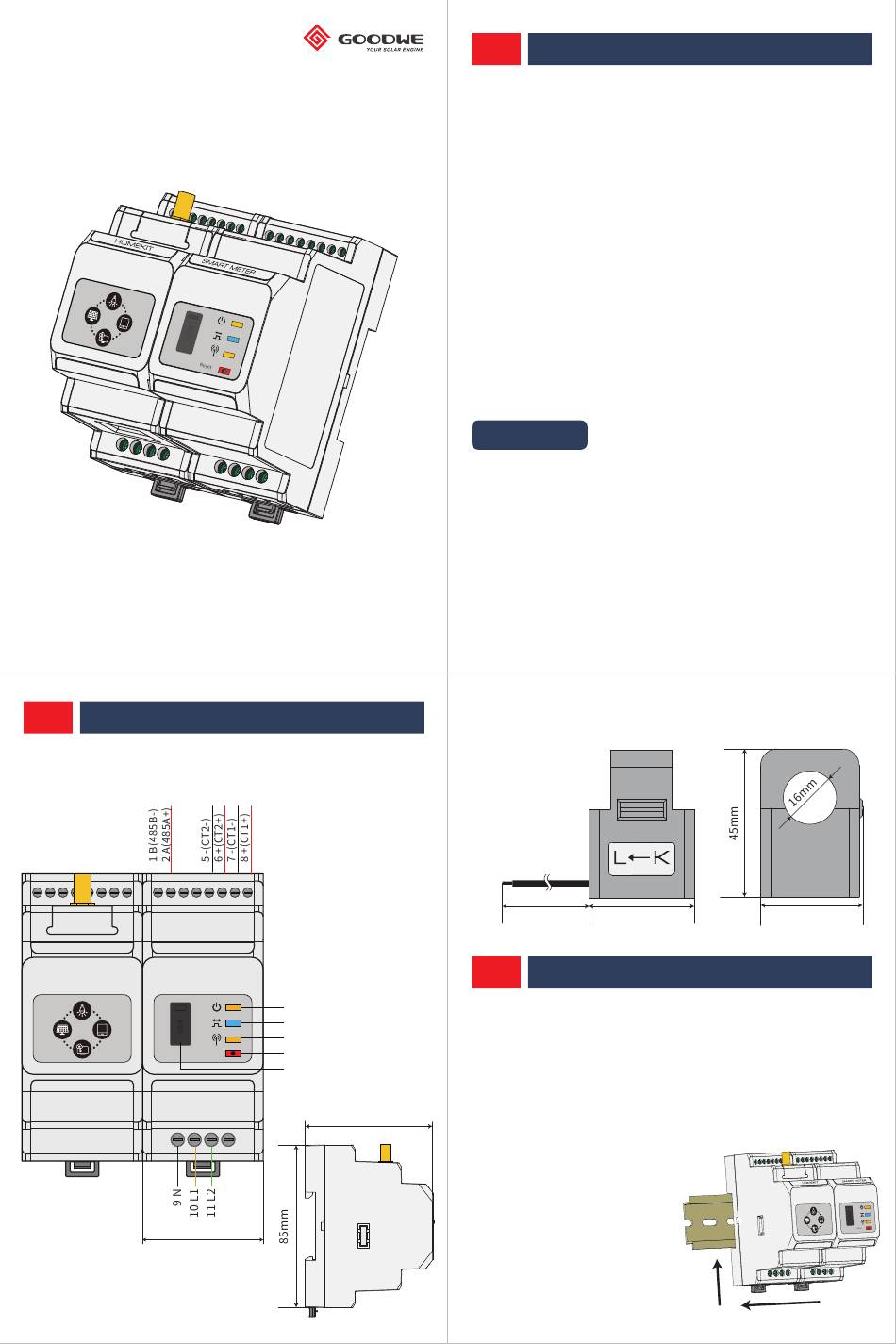

02 OVERVIEW
2.1 HOMEKIT OVERVIEW

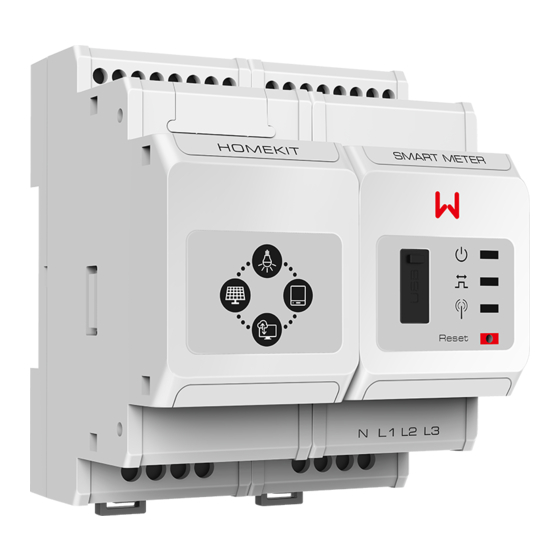

HOMEKIT SMART METER
Reset
36mm
① Power LED
② Energy consumption LED/防逆流指示灯
③ Communications LED
④ Reset Button
⑤ USB Port
66.5mm
01 INTRODUCTION
This product has the advantages of high precision, small
dimensions,convenient operation and installation. It is
equipped with Single-Phase Meter and Two-Channel
External CT to measure and calculate the Power and Energy
at the Inverter Output Point, Grid Point and Household Load
Point, and upload the measurement and calculation datas
to the server in real time over Wi-Fi or an ethernet cable, to
realize the measurement, statistics, analysis andmanage-
ment of electric energy at different loads with the SEMS and
APP system of GoodWe. ( See the following link for more
detail instructions of SEMS and APP :www.semspor-
tal.com/)
PACKING LIST
1*HomeKit
2*CT(Current Transformer)
1*Screw Driver
1*Wi-Fi Antenna
1*HomeKit Network Quick Configuration Guide
2.2 CT OVERVIEW
2M 32mm
03 INSTALLATION INSTRUCITON
3.1 INSTALLATION ENVIROMENT
Protection Class: IP20(for indoor use)
Operating Temperature： -25℃~+60℃
3.2 INSTALLATION (WITH DIN TRACK)
① Pull to release the retaining
clip
② Mount the HomeKit on the
track and push the
retaining clip up(a click
sound indicates it is
installed well)
1*USB Seal
1*Short Wiring
4*Cable Connection Terminal
1*User Manual
35mm
②
①
