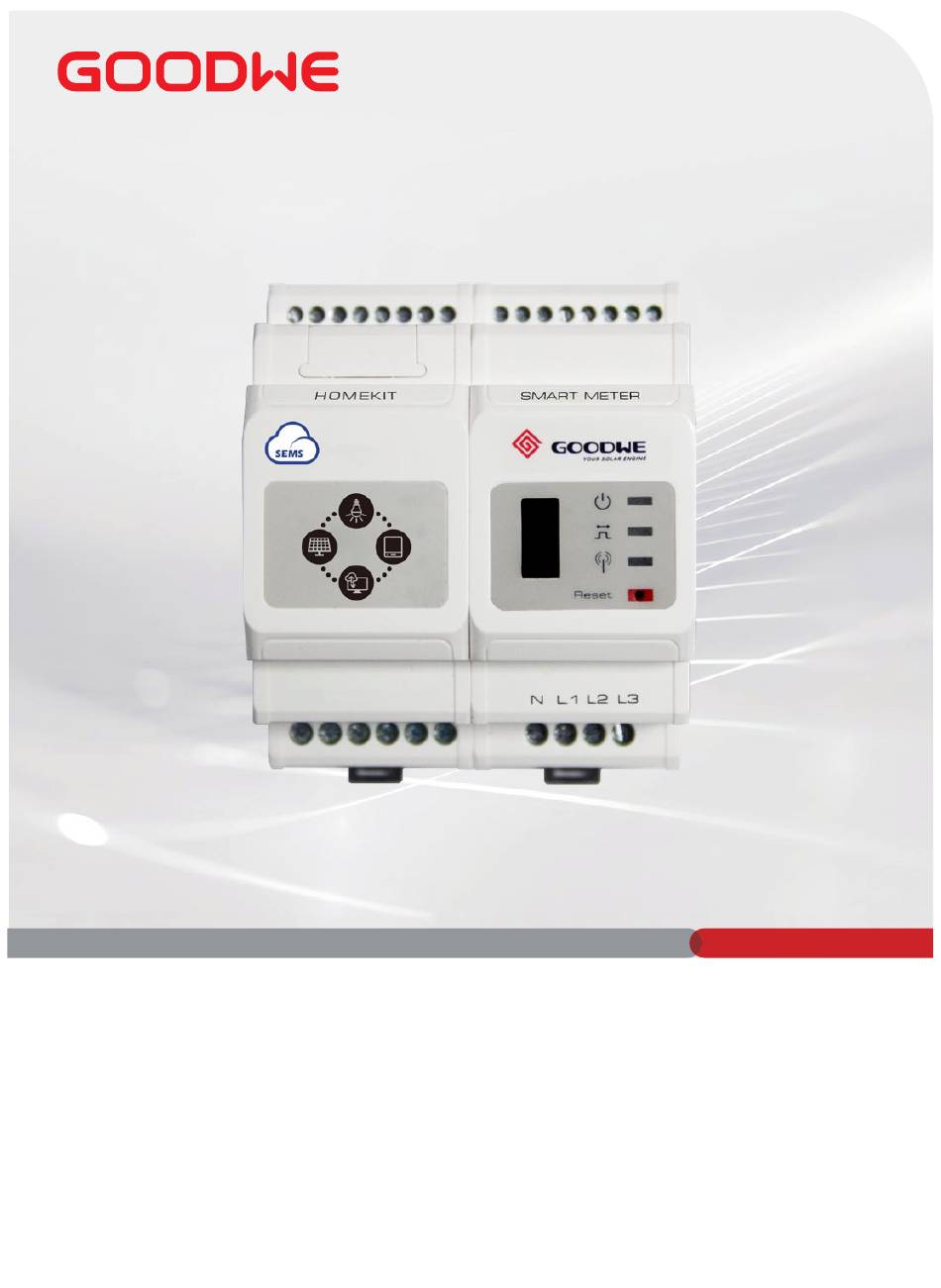

- Page 1 Quick Installation Guide Smart Meter (HK1000/HK3000) V1.0-2022-01-25...

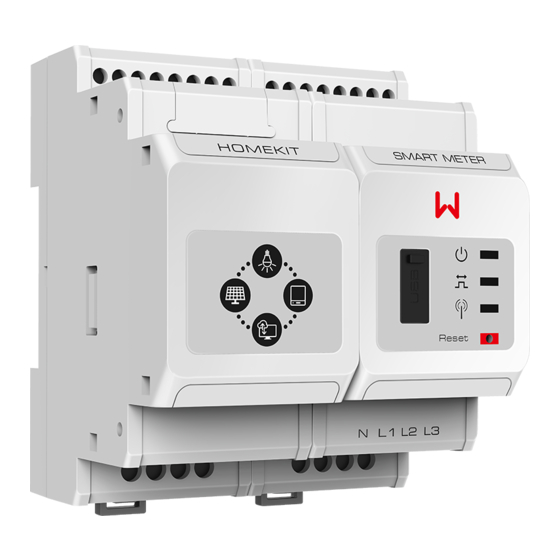

- Page 2 Quick Installation Guide V1.0 -2022 -01-25 Product Introduction Indicators Reserved Port Reset Button Note: CT1 - and CT1 + only for HK3000.
- Page 3 Quick Installation Guide V1.0 -2022 -01-25 Installation Packing List HOMEKIT SMART METER Reset Screwdriver x 1 Smart Meter x 1 USB Plug x 1 PIN terminal x 4 Antenna x 1 installation and Cable Connection...
- Page 4 Quick Installation Guide V1.0 -2022 -01-25 Wiring System HK1000 Antenna Inverter Utility Household Grid Meter Loads Fuse 0.5A Network Cable Router • Recommended cable connected to the voltage input terminal: 1mm (17AWG). • Do not remove the short circuit wire between L1 and L2.
- Page 5 Quick Installation Guide V1.0 -2022 -01-25 HK3000 Antenna Inverter Utility Grid Household Meter Loads Fuse 0.5A Network Cable Router • Recommended cable connected to the voltage input terminal: 1mm (17AWG). • CT direction: House (K)-->Grid (L).
- Page 6 Quick Installation Guide V1.0 -2022 -01-25 Commissioning Power ON Step 1 Connect the HomeKit cables. Step 2 Power on the inverter and make sure that the inverter is working normally. Then the HomeKit is powered on. Indicators Indicator Status Description Steady on Power on Power off...
- Page 7 Quick Installation Guide V1.0 -2022 -01-25 Technical Parameters Model HK1000 HK3000 Application Household Loads Monitoring+ARCB Rated voltage 110V/230V 3x230V/400V Voltage Voltage Range 100V~240V Frequency 50Hz/60Hz CT in: 120A/40mA, Rated Current CT in: 120A/40mA 200A/66.7mA Current Input Current Range 0.48A~120A 0.48A~120A/200A Self-Consumption <5W...
- Page 8 Waste Electrical and Electronic Equipment 2012/19/EU • Registration, Evaluation, Authorization and Restriction of Chemicals (EC) No 1907/2006 (REACH) You can download the EU Declaration of Conformity on https://en.goodwe.com. For more detailed instructions, scan the QR codes below. HK3000 Quick HomeKit Network...
- Page 9 Official Website GoodWe Technologies Co., Ltd. No. 90 Zijin Rd., New District, Suzhou, 215011, China www.goodwe.com service@goodwe.com Local Contacts...
