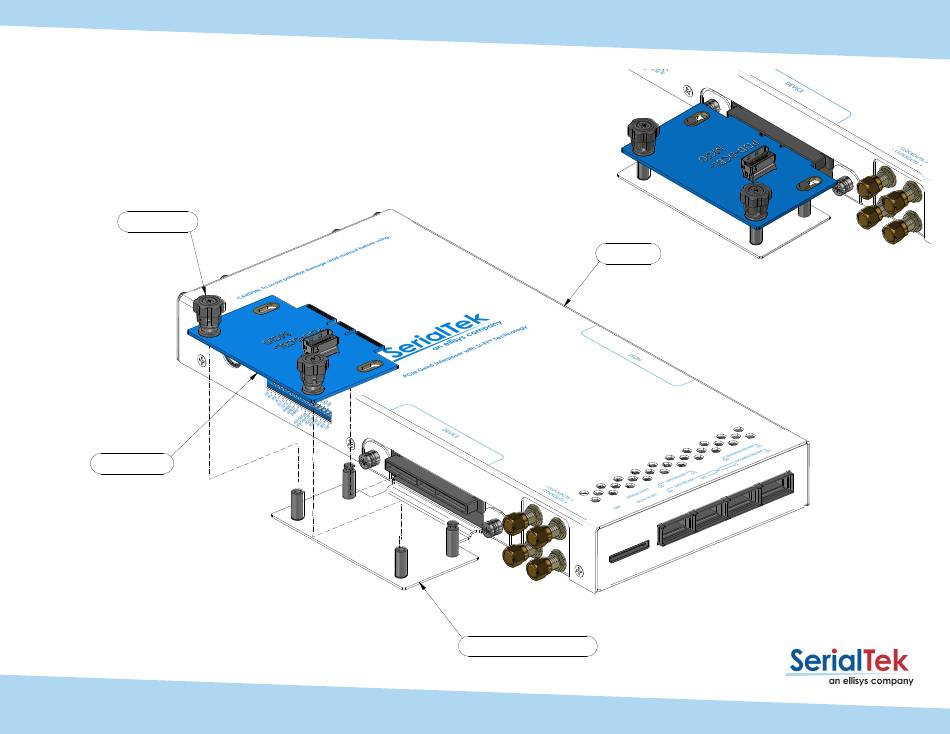

Gen5 POD MCIO Edition Assembly Reference
Raise M3 Captive Screws till it resists and screw thread clears the
underside of PCBA, then slide the MCIO Device PCBA into the
connector on the DEVICE side of the POD Unit and secure in position
on the Host/Device Cable Adaptor Tray with the M3 Captive Screws
M3 Captive Screw
MCIO Device PCBA
0004674 - R1.3
Page 3 of 5
POD Main Unit
Host/Device Cable Adaptor Tray
