FS3000-EVK
Air Velocity Sensor
The FS3000 evaluation kit can display
measurements with the on-board display and log
data via the USB interface to the PC GUI software.
Features
■
USB-to-I2C interface board
■
Data log application
■
USB power or battery operation
■
FS3000 module on adapter board with extension
cable
R36UH0003EU0100 Rev.1.00
Aug 17, 2021
Specifications
■
FS3000-1005 module (0 to 7 meters/sec) or
FS3000-1015 module (0 to 15 meters/sec)
■
Supply voltage – 5V (USB)
■
Battery – 3.3V
Kit Contents
■
1 interface board with OLED display
■
1 extension cable
■
1 micro-USB cable
■
1 FS3000 air velocity module

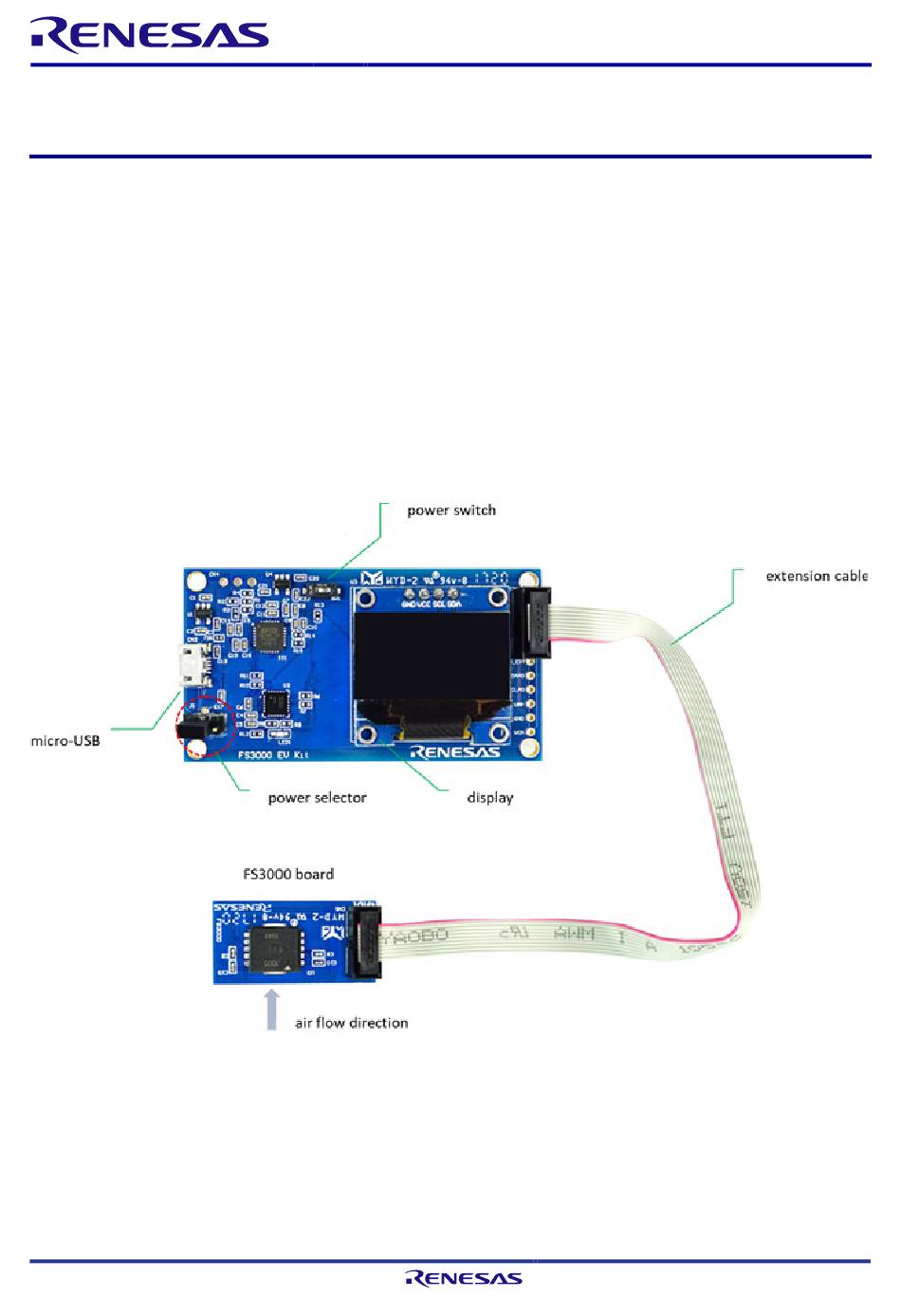

Figure 1. FS3000 Evaluation Kit
Evaluation Kit Manual
© 2021 Renesas Electronics
Page 1
Advertisement
Table of Contents
Related Manuals for Renesas FS3000-EVK
Summary of Contents for Renesas FS3000-EVK
- Page 1 1 interface board with OLED display ■ FS3000 module on adapter board with extension ■ 1 extension cable cable ■ 1 micro-USB cable ■ 1 FS3000 air velocity module Figure 1. FS3000 Evaluation Kit R36UH0003EU0100 Rev.1.00 Page 1 Aug 17, 2021 © 2021 Renesas Electronics...
-
Page 2: Functional Description
FS3000-EVK Evaluation Kit Manual 1. Functional Description The FS3000-EVK allows for quick demonstration of the sensitivity and response of the FS3000 module to air flows. The FS3000 adapter board with extension cable can be placed on application boards, enclosures, air ducts, and custom housings to quickly take measurements without the need to integrate it to the application board. -
Page 3: Power Selection
FS3000-EVK Evaluation Kit Manual Power Selection 1. Select the jumper positions for the USB, battery, or external power (see Figure 3 for USB and Battery selections). 2. The default jumpers are set to USB cable power. When using this mode, connect a micro-USB cable to the board. -
Page 4: Software Installation
FS3000-EVK Evaluation Kit Manual Software Installation To visualize the measurements graphically and to log data: 1. Download the FS3000 Demonstration software from www.renesas.com/flow. 2. Install the Demonstration software on a Windows-compatible PC by unzipping and installing FS3000_Demo.exe. Note: Software is not required to operate the kit. The kit displays the output in counts and correlated velocity in meters/sec. -
Page 5: Board Design
FS3000-EVK Evaluation Kit Manual 2. Board Design Schematic Diagram R36UH0003EU0100 Rev.1.00 Page 5 Aug 17, 2021... -
Page 6: Bill Of Materials
FS3000-EVK Evaluation Kit Manual Bill of Materials Designator Description Comment Quantity Footprint LibRef C1, C3, C20, C22 Cap Ceramic 1uF 10V C0402 CL05A105MP5NNNC X5R 20% SMD 0402 Paper T/R C2, C4, C8, C10, Cap Ceramic 0.1uF 16V 100nF C0402 CL05F104ZO5NNNC... - Page 7 FS3000-EVK Evaluation Kit Manual Designator Description Comment Quantity Footprint LibRef R1, R2, R3, R5, R0402 CRGP0402F10K R4, R13 RES SMD 4.7K OHM 4.7K R0402 RC0402JR-074K7L 1/16W 0402 R6, R7, R8, R9, R0402 CRGP0402F1K0 1.8k R0402 2-2176325-8 R14, R15 RES SMD 27 OHM 1%...
-
Page 8: Board Layout
FS3000-EVK Evaluation Kit Manual Board Layout Figure 5. Top Layer Figure 6. Bottom Layer R36UH0003EU0100 Rev.1.00 Page 8 Aug 17, 2021... -
Page 9: Ordering Information
FS3000-EVK Evaluation Kit Manual 3. Ordering Information Part Number Description FS3000-EVK FS3000-EVK Evaluation Board 4. Revision History Revision Date Description 1.00 Aug 17, 2021 Initial release. R36UH0003EU0100 Rev.1.00 Page 9 Aug 17, 2021... - Page 10 Renesas' products are provided only subject to Renesas' Terms and Conditions of Sale or other applicable terms agreed to in writing. No use of any Renesas resources expands or otherwise alters any applicable warranties or warranty disclaimers for these products.
