TIE DOWN 70853 Assembly Instructions

Collapsible guardrail

Advertisement

www.tiedown.com

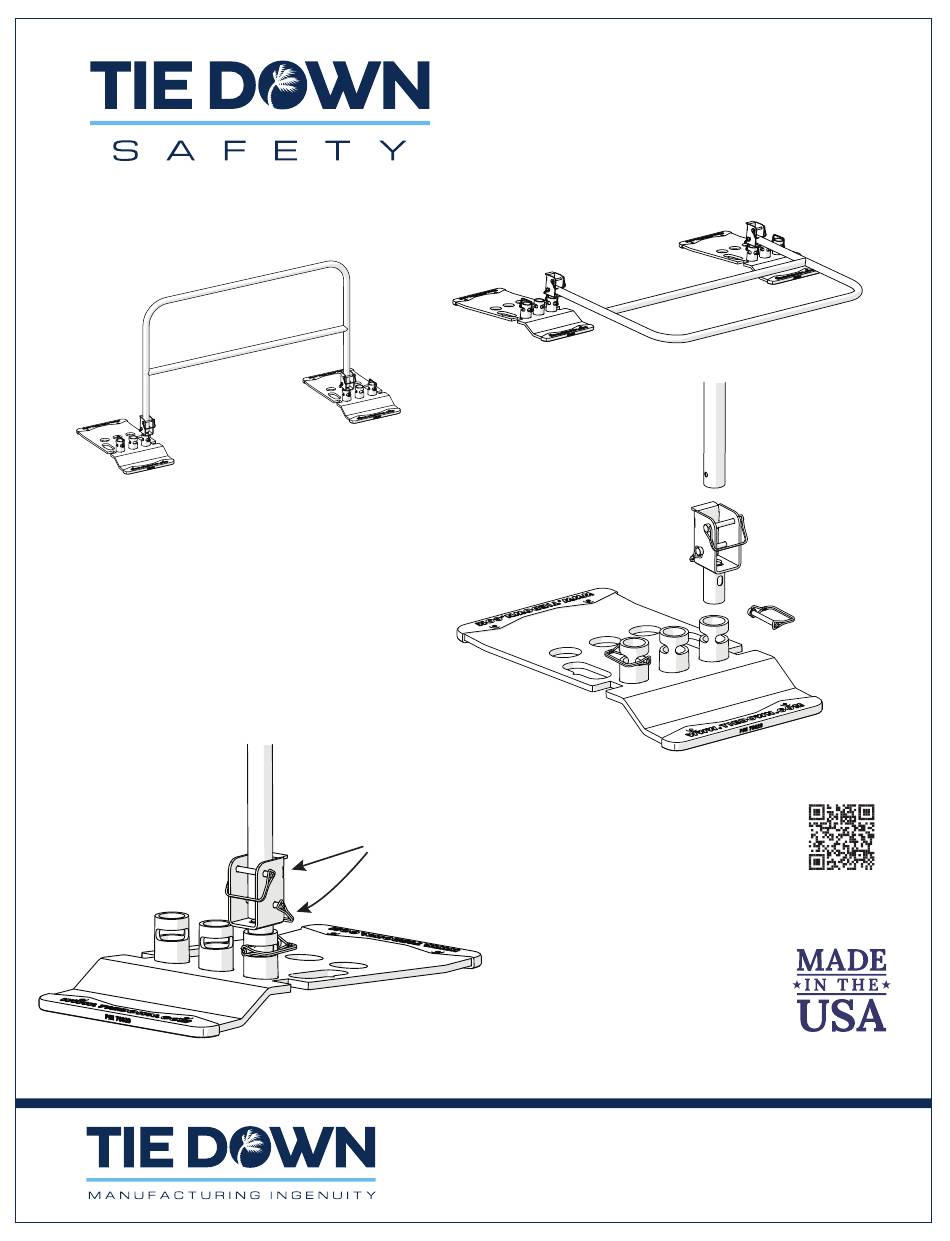

Place the Collapsible Bracket in the outside post on the
zip base. Secure with safety Pin.
Remove the two safety pins from the collapsible bracket.
Lock the guardrail in place
by securing with two
safety pins
Collapsible Guardrail
Assembly Instructions
Collapsible Bracket
with Safety Pins
Zip Base
Place the guardrail into the collapsible
bracket. Align the guardrails with
holes on the collapsible bracket holes.
Secure the guardrail by replacing the
two safety pins
Instructions #08346 (E1762 - Rev. 5/29/20)
404-344-0000 • www.tiedown.com
605 Stonehill Drive SW, Atlanta, GA 30336
roofing@tiedown.com
Guardrail
Safety Pin
On Line
Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 70853 and is the answer not in the manual?

Questions and answers

Summary of Contents for TIE DOWN 70853

  • Page 1 Collapsible Guardrail Assembly Instructions www.tiedown.com Guardrail Collapsible Bracket Step 1 with Safety Pins Place the Collapsible Bracket in the outside post on the zip base. Secure with safety Pin. Safety Pin Remove the two safety pins from the collapsible bracket. Zip Base Lock the guardrail in place by securing with two...
  • Page 2 Replace the upper safety pin. Safety Products Division www.tiedown.com 605 Stonehill Drive SW ISO 9001:2015 Certification Atlanta, Georgia 30336 Intellectual property of TIE DOWN Inc. 800-241-1806 • 404-344-0000 ©2020 TIE DOWN, Inc. Instruction #08346 (E1762 Rev. 5/29/20)
