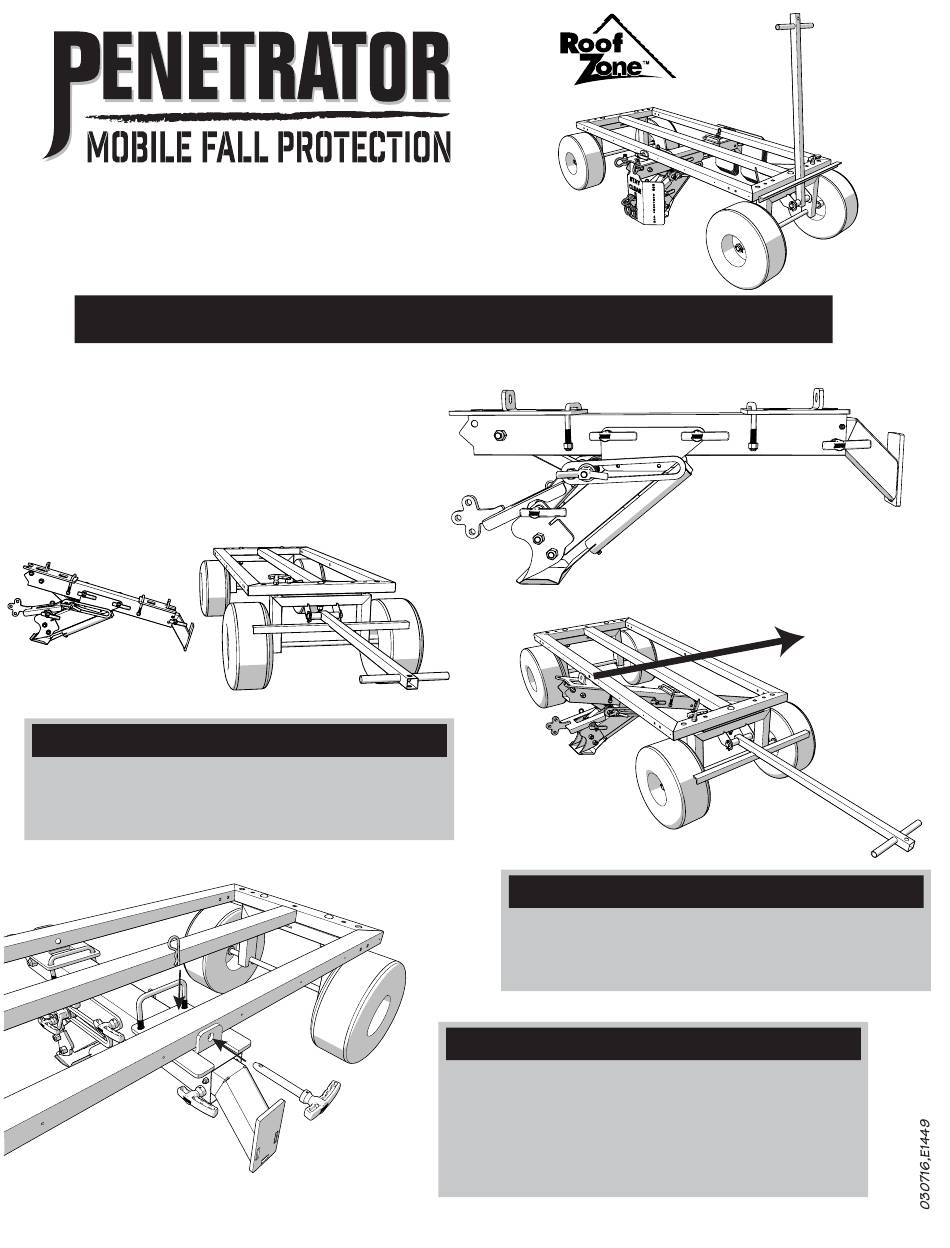

TIE DOWN PENETRATOR Assembly Instructions

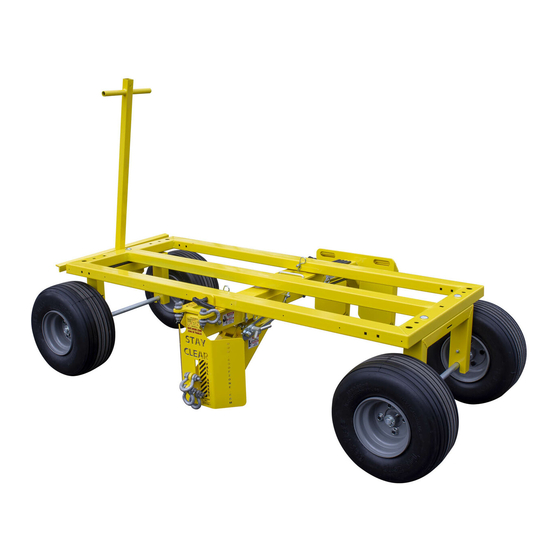

Penetrator and Roof Zone Cart
Assembly Instructions
Important – Please Read These Instructions Fully Before Starting Assembly
When you open the Penetrator Fall Protection
device for the first time, some minor assembly
will be required. The Penetrator device is shipped
as shown to the right. The front guard plate, cleats and
cart assembly must be assembled before use.
Pull from this side

Step 1

Position the Cart and Penetrator as close as possible
to the final assembly. Stand up the Penetrator on its
extension arm and safety plate.

Step 2

Pull the Penetrator device under the cart from the
opposite side of the cart. Stop pulling when the
pull pin stop is aligned with the cart.

Step 3

From the weight side of the Penetrator, lift up on
the pull pin mounting bracket. Align the holes with
the Penetrator and the pull cart. Insert the pull pin
through the bracket and cart. Attach safety pin
to the pull pin.
Instruction Sheet #08264 (E1449 Rev. 3-7-2016)
