TIE DOWN Hippo Anchor 65219 Instruction Manual

Advertisement

Hippo Anchor
Instruction Manual
12 Plate System, 635 lbs.
16 Plate System, 825 lbs.
Counterweight, 45 lbs.
Keep these instructions for
future reference. Read and
understand these instructions
before using this product.

System Specifications:

Capacity: One worker in arrest OR two workers in restraint.
Anchorage:
Fall Arrest: The structure to which the Anchorage Connector is installed on must sustain static loads applied in the directions
permitted by the Fall Arrest System of at least: 5,000 lbs (22.2 kN).
The Hippo Counterweight Anchor must not be used in adverse weather conditions. The roof surface must be free of frost, snow,
standing water, grease or oil, or any other type of lubricating or friction reducing materials.
The Hippo Counterweight Anchor System is approved for use on the following types of roofs: concrete, bitumen, and asphalt sanded.
Static Load:
The roof must be able to support a static load of 1,200 lbs. (334 kg).
Standards:
OSHA 1926.502 or OSHA 1910.140 when configured by a Qualified person as part of a complete fall arrest system.
Purpose: Anchorage Connectors are designed to provide anchorage connection points for Fall Arrest, Fall Restraint, Work
Positioning, and or Rescue systems based on the allowed uses for each product.
This Anchorage Connector is for connection of Fall Protection Equipment. Do not connect Lifting Equipment to the Anchorage
Connector.
Supervision: Use of this equipment must be supervised by a Competent Person.
Training: This equipment must be installed and used by persons trained in its correct application. This manual is to be used as
part of an employee training program as required by ANSI and OSHA, and/or regional regulations. It is the responsibility of the users
and installers of this equipment to ensure they are familiar with these instructions, trained in the correct care and use of
this equipment, and are aware of the operating characteristics, application limitations, and consequences of improper use
WARNING: This product can expose you to chemicals including Nickel, which is known to the
of this equipment.
State of California to cause cancer. For more information go to: www.P65Warnings.ca.gov
WARNING: This product can expose you to chemicals including Nickel, which is known to the
State of California to cause cancer. For more information go to: www.P65Warnings.ca.gov
WARNING: This product can expose you to
chemicals including Nickel, which is known to
the State of California to cause cancer. For more
information go to: www.P65Warnings.ca.gov
WARNING: This product can expose you
to chemicals including Nickel, which is
known to the State of California to
cause cancer. For more information
go to: www.P65Warnings.ca.gov
WARNING: This product can expose you
to chemicals including Nickel, which is
known to the State of California to
cause cancer. For more information
Part ID: 65219
Part ID: 65220
Part ID: 11032
Online Manual
404-344-0000 • www.tiedown.com
605 Stonehill Drive SW, Atlanta, GA 30336
sales@tiedown.com
Instruction Sheet #08371
E1831, Rev. 10/7/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hippo Anchor 65219 and is the answer not in the manual?

Questions and answers

Summary of Contents for TIE DOWN Hippo Anchor 65219

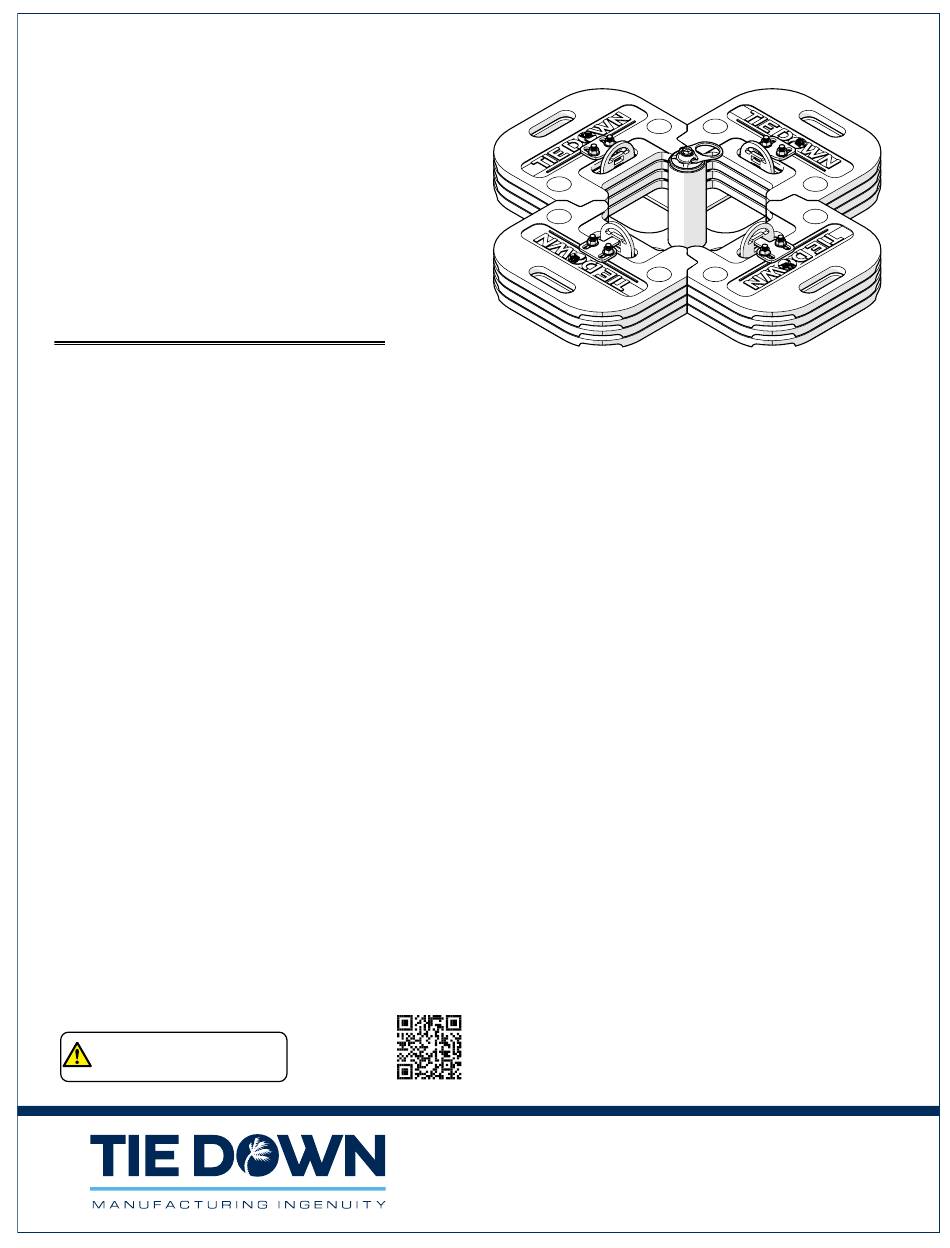

  • Page 1 Hippo Anchor Instruction Manual 12 Plate System, 635 lbs. Part ID: 65219 16 Plate System, 825 lbs. Part ID: 65220 Counterweight, 45 lbs. Part ID: 11032 Keep these instructions for future reference. Read and understand these instructions before using this product. System Specifications: Capacity: One worker in arrest OR two workers in restraint.
  • Page 2 After a Fall: If the Anchorage Connector is subjected to the forces of arresting a fall, it must be removed from service immediately, clearly marked “DO NOT USE”, and then either destroyed or forwarded to Tie Down for replacement or repair.
  • Page 3 Service: Only Tie Down or parties authorized in writing by Tie Down may make repairs to this equipment. Cleaning: Periodically clean the The Hippo Counterweight Anchor metal components with a soft brush, warm water, and a mild soap solution.
  • Page 4 Hippo base security tab. Slide the counterweight/U-bolt down the security tab until it rest on the Hippo Base. Step 3 Repeat Steps 1 & 2 for the remaining three counterweights. TIE DOWN Safety Products Division 800-241-1806 • 404-344-0000 • www.tiedown.com E1831, Rev. 10/7/21...
  • Page 5 Install a nut on each of the U-bolts. Hand tighten all nuts securely. Using tools may result in over-tightening, possibly damaging the system. Repeat for the remaining counterweights. TIE DOWN Safety Products Division 800-241-1806 • 404-344-0000 • www.tiedown.com E1831, Rev. 10/7/21...
  • Page 6 *** Tie Down Engineering, Inc. 404-344-0000 605 Stonehill Drive, SW sales@tiedown.com www.tiedown.com Atlanta, GA 30336 TIE DOWN Safety Products Division 800-241-1806 • 404-344-0000 • www.tiedown.com E1831, Rev. 10/7/21...
  • Page 7 TIE DOWN Safety Products Division 800-241-1806 • 404-344-0000 • www.tiedown.com E1831, Rev. 10/7/21...
  • Page 8 Safety Products Division 605 Stonehill Drive SW, Atlanta, Georgia 30336 404-344-0000 • www.tiedown.com ISO 9001:2015 Certification Intellectual Property of TIE DOWN Inc. ©2020 TIE DOWN, Inc. Instruction #08371 (E1831 Rev. 10/7/21)
