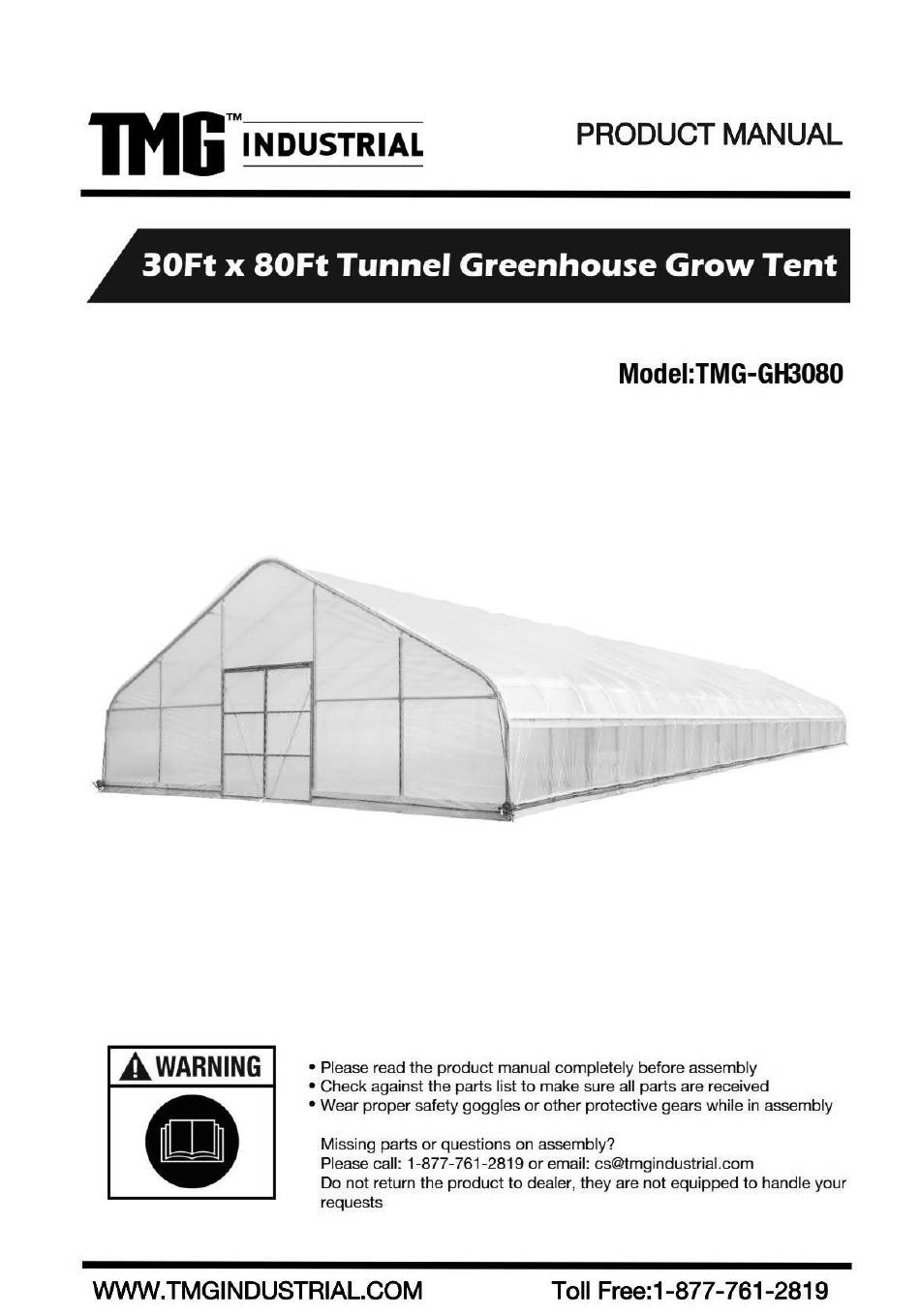

- Page 1 W W W . T M G I N D U S T R I A L . C O M P 0 / 1 2 To l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
-
Page 2: Main Specifications
Main specifications Overall assembled size : W9.15 x L24.7 x H3.66 (m) / W30 x L81 x H12 (ft) Shoulder height : H1.6 (m) / 5ft Door : W2.2 x H2 (m) / 7.2 x 6.6 (ft) Prior to assembly Please read the instructions carefully before installation. - Page 3 TMG-GH3080 Part List Parts Graphical Description code Peak arch tube Upper rafter tube Upper rafter tube (front and rear truss) Lower rafter tube Lower rafter tube (front and rear truss) Shoulder tube Shoulder tube (front and rear truss) Roof purlin...
- Page 4 Connector tube Door cross tubes Door cross tubes Door frame cross pull tube Ceiling cross bar Door frame column tube Door frame column left tube Door frame column right tube Door horizontal tube Reed groove Clip spring Film rolling machine guide tube Roll film tube Roll film tube Door buckle...
- Page 5 Half round head bolt M6x50 Self locking bolt M10x80mm and nuts Self locking bolt M8x70mm and nuts Hex bolt M10x70mm and nuts Hex bolt M10x30mm and nuts Hex bolt M10x120mm and nuts Self tapping screw #12x25 Self tapping screw #12x35 Square plug Round plug（φ25）...
- Page 6 Installation steps Step 1 : Review the whole structure and choose the proper installation site Choose a solid flat level ground area to set up the building. Do not install the building on soft ground, wetland, uneven surfaces, sloped surfaces. ...
- Page 7 Figure 1 Step 2 : Assemble all trusses The building includes 20 trusses : (2) front and rear truss, and (18) middle trusses. Parts used to install the front and rear truss in this step (refer to figure 2) : (1x2) Peak arch tube (#1) (2x2) Upper rafter tube (#2A) (2x2) Lower rafter tube (#3A)
- Page 8 Figure3 Lay down all (20) trusses on the ground as figure 4 when the assembly is all completed and before moving to next step, and then wrap (#33) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
- Page 9 Figure 5 Repeat above step to put up all other trusses (from 2th to 20th truss), and connect all purlins. Now the whole structure is completely up. (refer to figure 6) Parts used in this step : (7x19) Roof purlin (#5) (7x20) Self locking bolt (#22) (4x19) Self locking bolt (#23) Figure 6...
- Page 10 Step 4 : Installation of front and rear trusses (refer to figure 7) (2x2) Vertical tubes (#8) (2x2) Vertical tubes (#8A) (1x2) Door left lower vertical tubes (#9L) (1x2) Door left upper vertical tubes (#9A) (1x2) Door right lower vertical tubes (#9R) (1x2) Door right upper vertical tubes (#9B) (4x2) Connector tube (#9C) (2x2) Door cross tubes (#10)
- Page 11 Step 5 : Installing boards (#36) and reed groove (#14) (refer to figure 8) Fix the board (#36) with self tapping screw (#28). Fix the reed groove (#14) with the self tapping screw (#27). Parts used in this step : (102) Reed groove (#14) (510) Self tapping screw (#27) (224) Self tapping screw (#28)
- Page 12 (1x2) Front and rear door film (#32A) Figure 9 Step 7 : Install the film and roll film system (refer to figure 10) NOTE : The cover must be installed on a windless day. DO NOT attempt to install the cover during windy conditions.
- Page 13 Parts used in this step : (54) Clip spring (#14A) (2) Film rolling machine guide tube (#15) (24) Roll film tube (#16) (2) Roll film tube (#16A) (2) Film rolling machine (#18) (78) Eight clip spring (#19) (40) Pressure film carrier (#20) (2) Hex bolt (#26) (48) Self tapping screw (#27) (6) Round plug (#30)
