AIRFUSION AIRLIE II ECO SERIES
INSTALLATION
OPERATION
MAINTENANCE
WARRANTY INFORMATION
READ INSTRUCTIONS CAREFULLY FOR SAFE
INSTALLATION AND FAN OPERATION.
LUCCI
CEILING FAN
CAUTION
V1.0 –EN Published on 04.2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIRFUSION AIRLIE II ECO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LUCCI Air AIRFUSION AIRLIE II ECO Series

Summary of Contents for LUCCI Air AIRFUSION AIRLIE II ECO Series

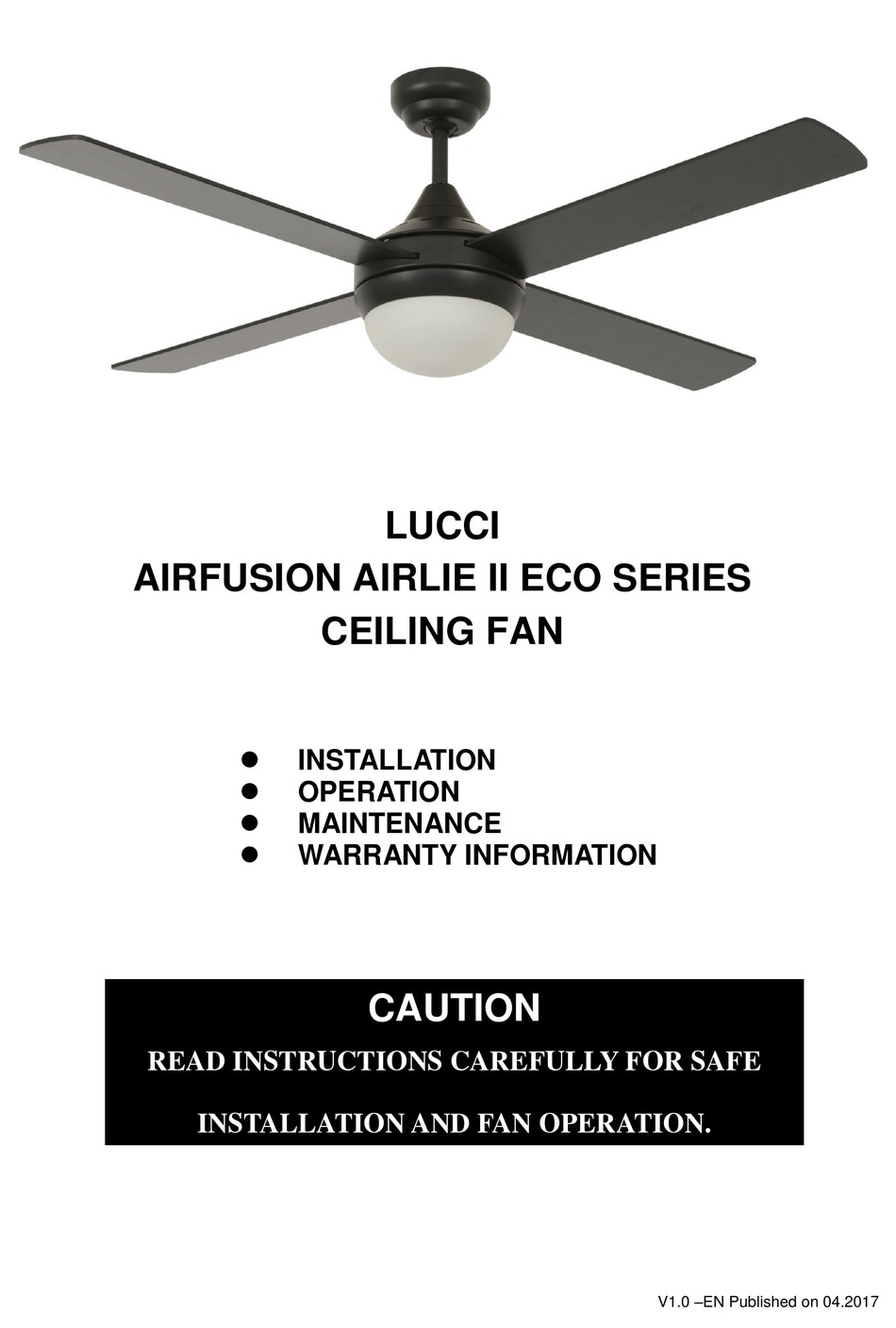

  • Page 1 LUCCI AIRFUSION AIRLIE II ECO SERIES CEILING FAN  INSTALLATION  OPERATION  MAINTENANCE  WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V1.0 –EN Published on 04.2017...

  • Page 2: Safety Precautions

    Airfusion Airlie Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and save all instructions before using the product. SAFETY PRECAUTIONS The information contained in the following pages has been prepared to ensure you of trouble-free operation of your ceiling fan.
  • Page 3 Airfusion Airlie Installation Instructions Example: If a fan is connected to a circuit that can be isolated via an all-pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.

  • Page 4: Before Installation

    Airfusion Airlie Installation Instructions BEFORE INSTALLATION Unpack the fan and carefully identify the parts. Please refer to Fig 1. Fig. 1 AIRLIE II FAN WITH LIGHT AIRLIE II FAN WITHOUT LIGHT Blades x 4 Blades x 4 Pre-assembled Fan motor, down rod, and canopy Pre-assembled Fan motor, down rod, and canopy Glass shade x 1 Bottom cover x 1...

  • Page 5: Installing The Mounting Bracket

    Airfusion Airlie Installation Instructions INSTALLING THE MOUNTING BRACKET  The ceiling fan must be installed in a location so that the blades are a minimum 300mm spacing from the tip of the blade to the nearest objects or walls.  Secure the mounting bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg, with the two long screws provided.

  • Page 6: Hanging The Fan

    Airfusion Airlie Installation Instructions HANGING THE FAN Lift the fan assembly onto the mounting bracket. Ensure the registration slot (A) of the hanger ball is positioned on the stopper (B) of the mounting bracket (C) to prevent the fan from rotating when in operation.

  • Page 7: Electrical Wiring Diagram

    Airfusion Airlie Installation Instructions ELECTRICAL WIRING DIAGRAM WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION MUST BE INCORPORATED IN THE FIXED WIRING IN ACCORDANCE WITH THE WIRING RULES. USE WITH WALL SWITCH WIRING DIAGRAM: Fig.
  • Page 8 Airfusion Airlie Installation Instructions USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold separately) 1/ Remote without plugs Fig. 8 2/ Remote with plugs Fig. 9 8 | P a g e...

  • Page 9: Finishing The Installation

    Airfusion Airlie Installation Instructions FINISHING THE INSTALLATION  After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plug.  Cover the mounting bracket with the canopy. Ensure all electrical wiring is tucked inside the canopy and that the wires are not damaged during this step.

  • Page 10: After Installation

    Airfusion Airlie Installation Instructions Fig. 12 AFTER INSTALLATION WOBBLE: NOTE: ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimetres is quite acceptable and DOES NOT suggest any problem.

  • Page 11: Technical Information

    Airfusion Airlie Installation Instructions TECHNICAL INFORMATION Rated Power Rated Power Ceiling Fan model Rated Voltage (motor) (lamp) 2 X MAX.15W CFL Spiral or LED Airlie II fan with light 220 - 240 VAC Bulbs, E27 Airlie II fan without light 220 - 240 VAC WARRANTY INFORMATION 11 | P a g e...
  • Page 12 Airfusion Airlie Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am &...
  • Page 13 Airfusion Airlie Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME………………………………………………………………………………… ADDRESS…………………………………………………………………………… ……………………………………………………POSTCODE…………………… MODEL NUMBER…………………………………………………………………… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE ……………………………………………………… DATE OF PURCHASE………………………………………………………………...
