Summary of Contents for Elko iNELS Bridge

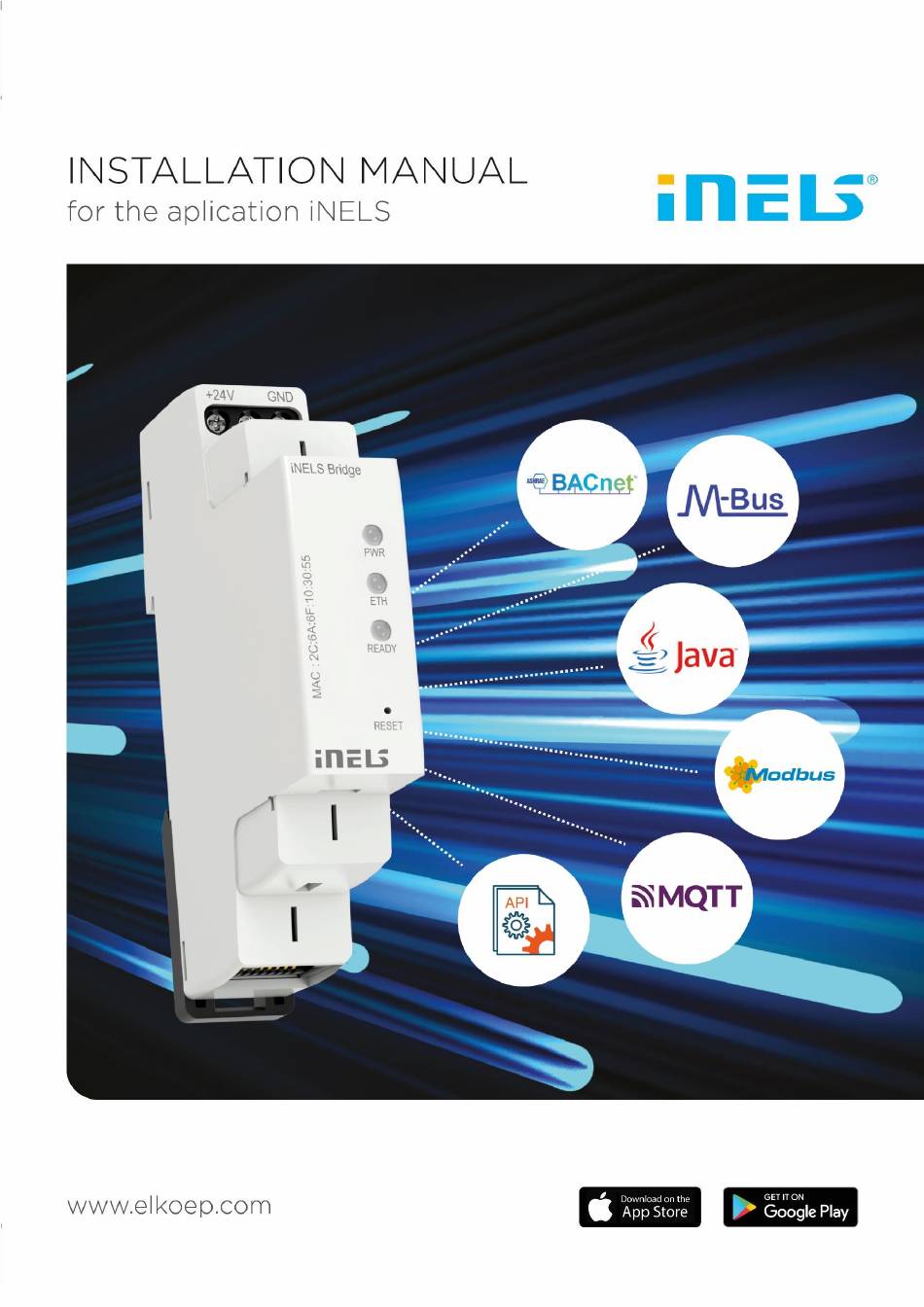

  • Page 1 Installation manual iNELS Bridge...
  • Page 2 Installation manual iNELS Bridge Table of contents INTRODUCTION ............................3 2. INITIAL CONFIGURATION ........................4 WEB INTERFACE – INELS BRIDGE ....................... 4 3.1..............................4 INUX TAB 3.2............................ 5 SSISTANT TAB HARDWARE .............................. 6 4.1................................6 4.2. RESET ............................
  • Page 3 This guide gives you instructions on how to properly set up iNELS Bridge and connect it to your iNELS elements using the MQTT protocol. It will also show you how to use the power of Home Assistant to connect your iNELS devices with elements made by various manufacturers.
  • Page 4 (IP_address:8080 or Ip_address:8123) instead of the bridge.local. You can find the address in your router settings (search for the MAC address indicated on iNELS Bridge box) or by using a third party tool to find devices in the network. For more information, see the Troubleshooting section in this guide.
  • Page 5 This tab is used to update the firmware. Simply select the new firmware version from your computer’s hard drive and press the “Update” button to upload the new version. Following the update, iNELS Bridge must be rebooted using the “Reboot” button. The latest firmware versions are available for download at elkoep.cz.
  • Page 6  Pressing the button >2 sec: Reboots iNELS Bridge  Pressing the button >10 sec: Reboots iNELS Bridge and resets the network to default (DHCP and bridge.local domain name) 5. Home Assistant (HA) The HA platform is available at http://bridge.local:8123.
  • Page 7 Installation manual iNELS Bridge 5.1. Integration of iNELS in HA The HA includes iNELS integration, which can be used to interconnect iNELS RF and BUS. This also allows you to work with competitors’ products (if they support HA). Procedure: 1. First, open Settings -> Devices & Services. Here, select “Add integration”. A list appears, where you can find the iNELS integration and click on it;...
  • Page 8 3. Set a static IP address for IB. 4. Press the “Reboot” button (after reboot, IB is available at the set static address). 6.2. iNELS Bridge cannot be found in a computer network in static IP mode Conditions: IB is connected to a computer network. It has a static IP address set. PWR LED is steady, ETH LED is flashing, READY LED is flashing.
