Summary of Contents for Amart Furniture Signature Nero 63758

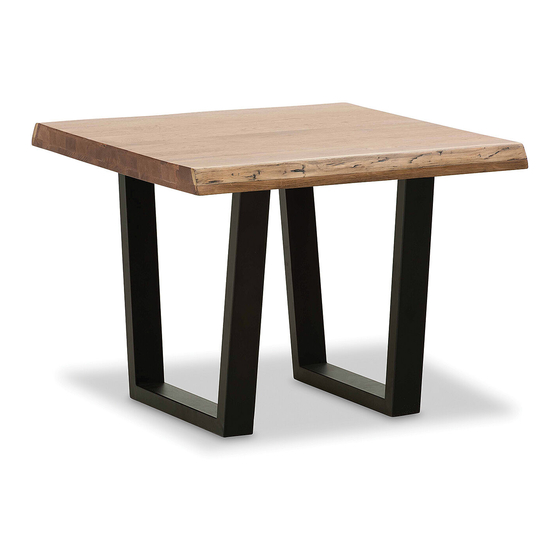

- Page 1 ASSEMBLY INSTRUCTION NERO LAMP TABLE ITEM CODE 63758 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 63758...
- Page 2 suitable and sudden 63758...
-
Page 3: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly. -
Page 4: Parts List
PARTS LIST PARTS LIST QT'Y HARDWARE LIST QT'Y Top table 1 pc Bolt M8x20mm 12 pcs Leg table 2 pcs Flat washer M8 12 pcs Spring washer M8 12 pcs Allen Key 4mm 1 pc Adhesive felt pad 8 pcs 20x20x5mm Tipping Kit Strap 1 pc... - Page 5 STEP 1: Attach legs (2) onto top (1) using the bolts M8x20 (A), flat washers (B) and spring washers (C), tighten it up by using an allen key (D). Attach adhesive felt pad (E) onto the legs (2) (X8) (X12) (X12) (X12) STEP 2: Attach Tipping Kit Strap (F) to the table top (1) by using screw (G) and...
- Page 6 Fixing the strap to the wall As the wall materials vary, screws for fixing to the wall are not included. For advice on suitable screws systems, contact your local specialised dealer. ASSEMBLY IS COMPLETE 63758...
