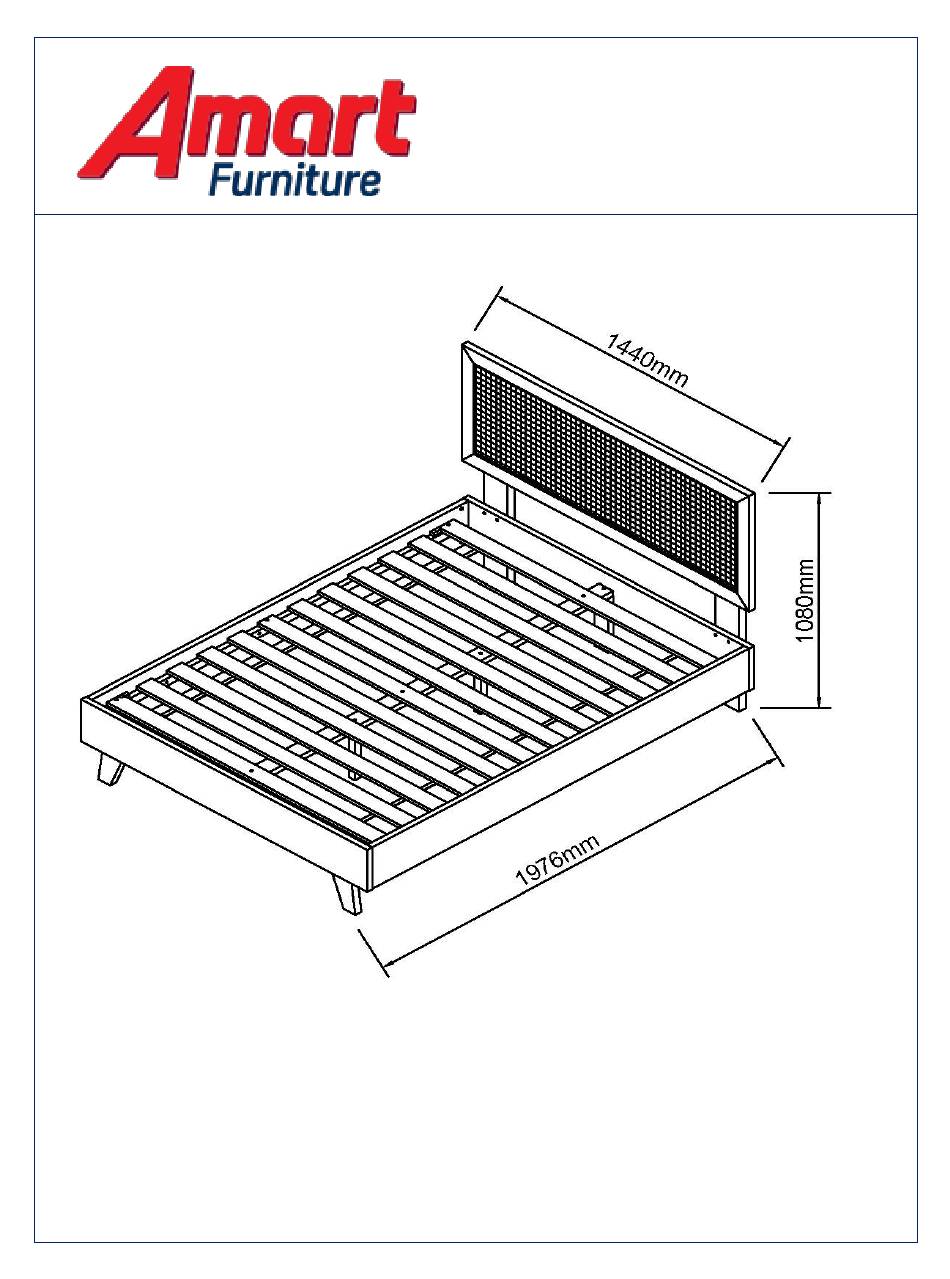

ASSEMBLY INSTRUCTION
NARA DOUBLE BED
ITEM CODE 75900
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please
phone Amart Furniture , Customer Service Free call 1800 351
084
1
ITEM CODE 75900

Advertisement

loading
Need help?

Need help?

Do you have a question about the NARA 75900 and is the answer not in the manual?

Questions and answers

Related Manuals for Amart Furniture NARA 75900

Summary of Contents for Amart Furniture NARA 75900

  • Page 1 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 Imported by Amart Furniture Pty Ltd,Brisbane ,Qld Australia. For any assistance with assembly or for missing parts please phone...

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly.

  • Page 3: Parts List

    PARTS LIST HEADBOARD SUPPORT BOARD SUPPORT BAR SUPPORT LEG FOOTBOARD CENTRE RAIL FOOTBOARD LEG SLATS FOOTBOARD LEG HEADBOARD SIDE RAIL HEADBOARD LEG SIDE RAIL SUPPORT LEG ITEM CODE 75900...
  • Page 4 STEP 1: Attach the footboard legs(3)(4) to footboard(2) with bolt (D) and washer (E) using allen key (G). Note that the footboard legs are divided into left and right, please install them as show in the figure. ITEM CODE 75900...
  • Page 5 STEP 2: Attach the support bar(1)to footboard(2) with bolt (D) and washer (E) using allen key (G). Note the side with a hole in the middle of the bar is upward. STEP 3: Attach headboard legs (13) to headboard (12) with bolt (D) and washer (E)using allen key (G) ITEM CODE 75900...
  • Page 6 STEP 4: Insert dowel (A) to siderails (5)(6) STEP 5: Fix angle irons(F) to siderails (5)(6) with bolt (C) and washer (E) using allen key (G) ITEM CODE 75900...
  • Page 7 STEP 6: Attach siderails (5)(6) to footboard (2) with bolt (C) and washer (E) using allen key (G) STEP 7: Attach the headboard support board(8) to siderails (5)(6) with hexagon socket screw (I) and nut (J) using allen key (K) ITEM CODE 75900...
  • Page 8 STEP 8: Attach support leg (7) to headboard support board (8) with bolt (D) and washer (E) using allen key (G) STEP 9: Attach headboard support board(8) to headboard legs (13) with bolt (D) and washer (E) using allen key(G) ITEM CODE 75900...
  • Page 9 STEP 10: Attach support legs(9) to centre rail(10) with screw (H) using allen key (G). Attach centre rail(10) to support leg(7) and support bar(1) with bolt (D) and washer (E), using allen key (G). ITEM CODE 75900...
  • Page 10 STEP 10: Attach slats (11) to the existing unit using screws (B). ASSEMBLY IS COMPLETE CAUTION Always Lift Your Bed When Moving /Relocating - Do Not Drag. Dragging Can Cause The Centre Support Legs To Bend/Break. ITEM CODE 75900...
  • Page 11 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
