Imported by Amart Furniture Pty Ltd, Brisbane , Qld Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084

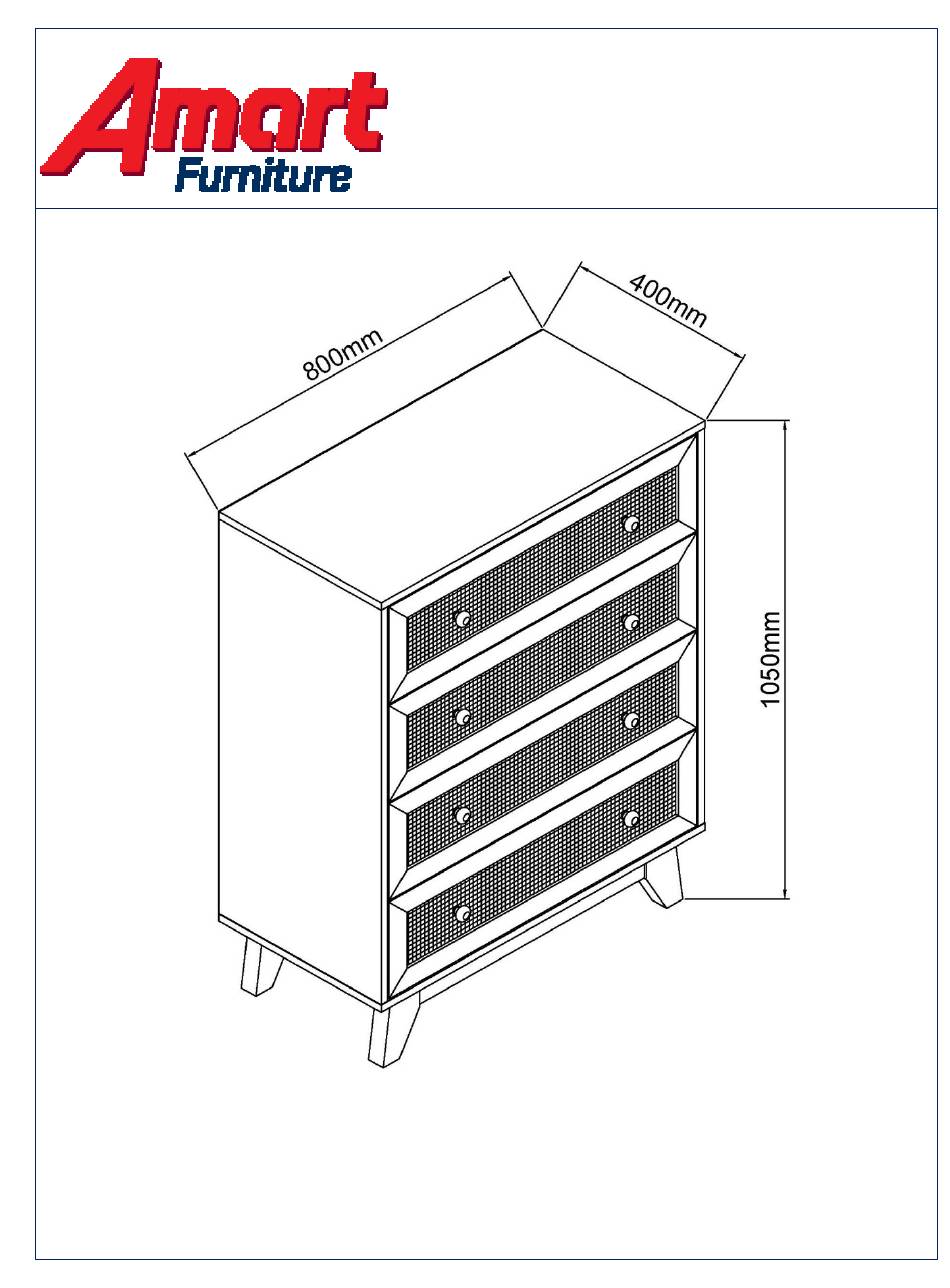

ASSEMBLY INSTRUCTION

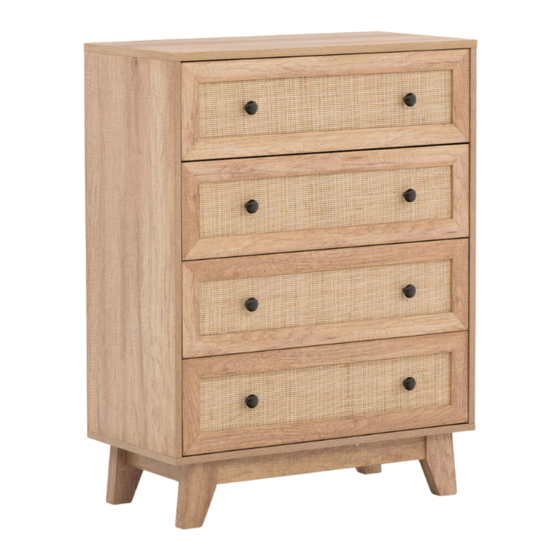

NARA TALL CHEST
ITEM CODE 72814
Imported by Amart Furniture Pty Ltd, Brisbane Qld, ,Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture , Customer Service Free call 1800 351 084
1
ITEM CODE 72814
Advertisement
Related Manuals for Amart Furniture NARA 72814
Summary of Contents for Amart Furniture NARA 72814
- Page 1 Imported by Amart Furniture Pty Ltd, Brisbane Qld, ,Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Brisbane , Qld Australia.
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly. - Page 3 ITEM CODE 72814...
-
Page 4: Parts List
PARTS LIST DRAWER SURFACE BOARD TOP BOARD DRAWER SIDE BOARD SIDE BOARD DRAWER SIDE BOARD SIDE BOARD DRAWER BOTTOM BOARD BACK SUPPORT BAR DRAWER BACK BOARD BOTTOM BOARD DRAWER SUPPORT BOARD FEET CROSSING BAR FEET BACK BOARD BASE BAR BASE BAR ITEM CODE 72814... - Page 5 STEP:1 Insert the dowel(D) to side board (2)(3), back support bar(4) and crossing bar(16) ITEM CODE 72814...
- Page 6 STEP:2 Fix runners (K) to side board (2) with screws(F). Fix runners (M) to side board (3) with screws(F). Note the position of fixing screw as shown in the figure. ITEM CODE 72814...
- Page 7 STEP:3 Fix cam pin (B) to side board (2)(3). Attach crossing bar(16) to side board (2)(3)using cam locks(A) STEP:4 Fix cam pin (B) to top board (1). Attach back support bar(4) to top board(1) using cam locks(A) ITEM CODE 72814...
- Page 8 STEP:5 Attach top board(1) to existing unit with cam locks(A). Attach bottom board (5) to existing unit with screws(G). ITEM CODE 72814...
- Page 9 STEP:6 STEP:7 Attach back board (17) to existing unit with screws(H). ITEM CODE 72814...
- Page 10 STEP:8 Insert the dowel(D) to base bar (8)(9) STEP:9 Fix cam pin (C) to feet (6)(7). ITEM CODE 72814...
- Page 11 STEP:10 Fix base bar (8)(9) and feet (6)(7) with cam locks (A) STEP:11 Attach base to existing unit with screws(G). ITEM CODE 72814...
- Page 12 STEP:12 Attach drawer side board (11)(12)to drawer back board(14) with screw(E). Attach drawer support bar(15) to drawer back board(14) with screw(E). Insert drawer bottom board(13) to the body of drawer. STEP:13 Fix cam pin (B) to drawer surface board(10). Attach drawer surface board(10) to the body of drawer with cam locks(A) ITEM CODE 72814...
- Page 13 STEP:14 Fix runners (L)(N) to drawer body with screws(F). Note the position of fixing screw as shown in the figure. ITEM CODE 72814...
- Page 14 STEP:15 Fix handles (I)to drawer surface board(10) with screw(J). Assemble drawers into the body. ITEM CODE 72814...
- Page 15 ASSEMBLY IS COMPLETE ITEM CODE 72814...
- Page 16 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws. 3.
- Page 17 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish. •...
