Imported by Amart Furniture Pty Ltd, Brisbane , Qld Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084

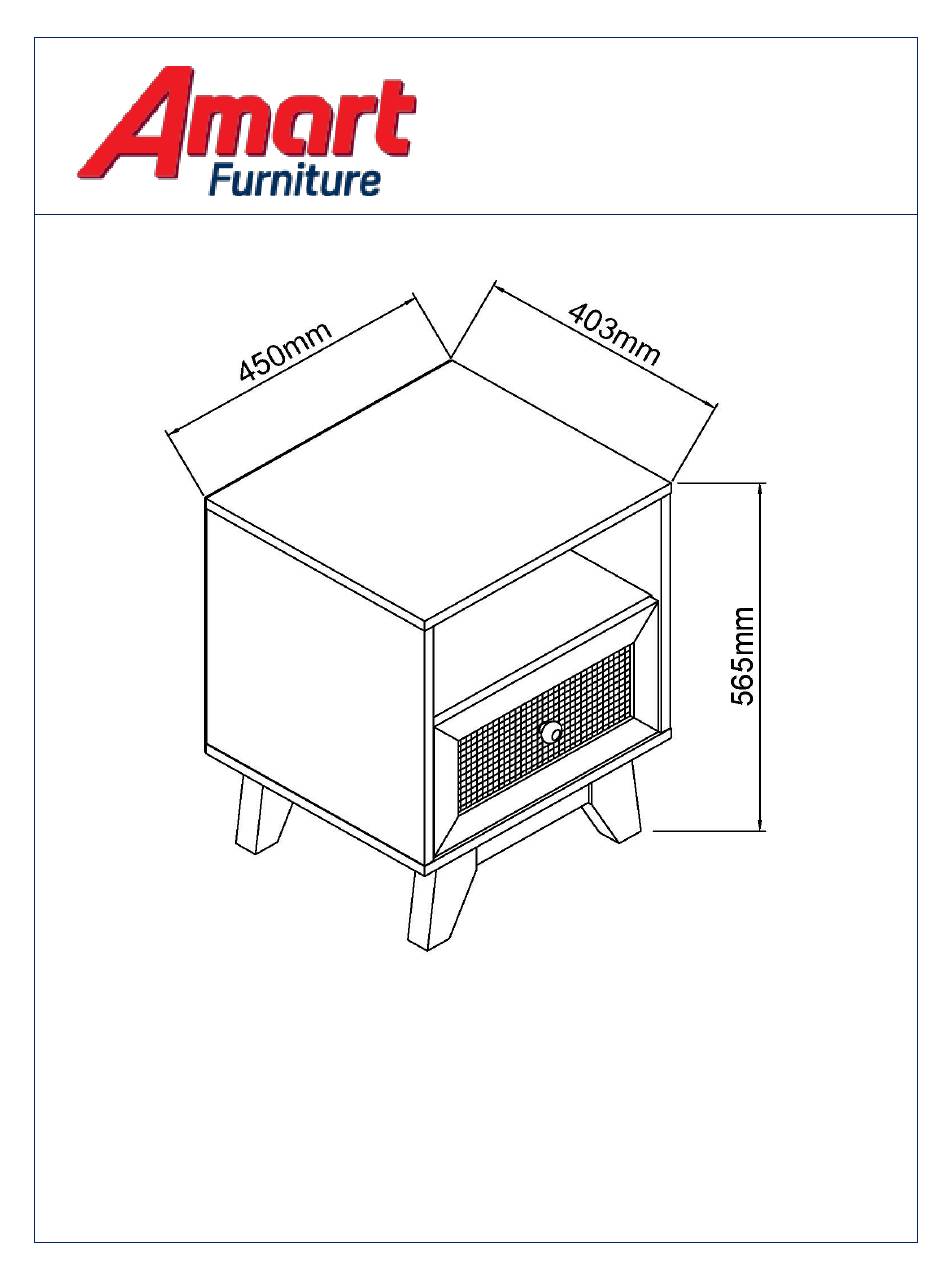

ASSEMBLY INSTRUCTION

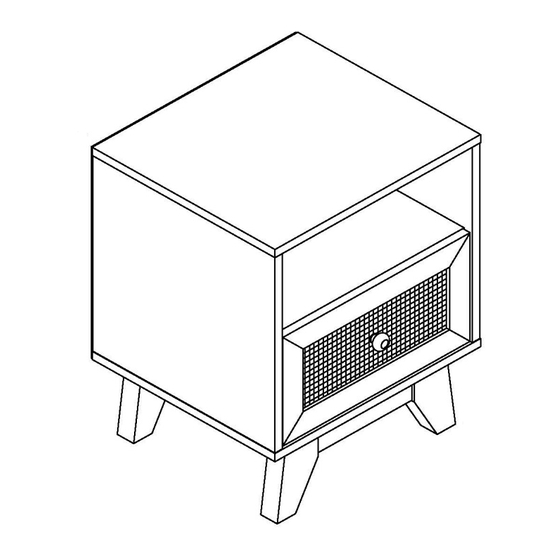

NARA BEDSIDE
ITEM CODE 72813
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please
phone Amart Furniture , Customer Service Free call 1800 351
084
1
ITEM CODE 72813
Advertisement
Related Manuals for Amart Furniture NARA 72813
Summary of Contents for Amart Furniture NARA 72813
- Page 1 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 Imported by Amart Furniture Pty Ltd, Brisbane , Qld Australia. For any assistance with assembly or for missing parts please phone...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly. - Page 3 ITEM CODE 72813...
-
Page 4: Parts List
PARTS LIST BASE BAR TOP BOARD BASE BAR SIDE BOARD DRAWER SURFACE BOARD SIDE BOARD DRAWER SIDE BOARD SHELF DRAWER SIDE BOARD BOTTOM BOARD DRAWER BOTTOM BOARD FEET DRAWER BACK BOARD FEET BACK BOARD ITEM CODE 72813... - Page 5 STEP:1 Insert the dowel(D) to side board (2)(3) and shelf (4). ITEM CODE 72813...
- Page 6 STEP:2 Fix runners (K) to side board (2) with screws(F). Fix runners (M) to side board (3) with screws(F). Note the position of fixing screw as shown in the figure. ITEM CODE 72813...
- Page 7 STEP:3 Fix cam pin (B) to side board (2)(3). STEP:4 Attach side board(2)(3) to shelf (4) using cam locks(A) ITEM CODE 72813...
- Page 8 STEP:5 Fix cam pin (B) to top board (1). Attach top board(1) to existing unit with cam locks(A). STEP:6 Attach bottom board (5) to existing unit with screws(G). ITEM CODE 72813...
- Page 9 STEP:7 Attach back board (15) to existing unit with screws(H). ITEM CODE 72813...
- Page 10 STEP:8 Fix cam pin (C) to feet (6)(7). STEP:9 Insert the dowel(D) to base bar (8) ITEM CODE 72813...
- Page 11 STEP:10 Fix base bar (8)(9) and feet (6)(7) with cam locks (A) STEP:11 Attach base to existing unit with screws(G). ITEM CODE 72813...
- Page 12 STEP:12 Fix cam pin (B) to drawer surface board(10). Attach drawer side board (11)(12)to drawer surface board(10) using cam locks(A) STEP:13 Insert drawer bottom board(13) to the body of drawer. ITEM CODE 72813...
- Page 13 STEP:14 Attach drawer back board(14) to the body of drawer with screws(E) Fix runners (L)(N) to drawer body with screws(F). Note the position of fixing screw as shown in the figure. ITEM CODE 72813...
- Page 14 STEP:15 Fix handles (I)to drawer surface board(10) with screw(J). Assemble drawers into the body. ASSEMBLY IS COMPLETE ITEM CODE 72813...
- Page 15 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws. 3.
- Page 16 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish. •...
