Imported by Amart Pty Ltd,Qld, Brisbane Australia. For any assistance with
assembly or for missing parts please phone Amart Furniture, Customer Service
Freecall 1800 351 084.
Furniture

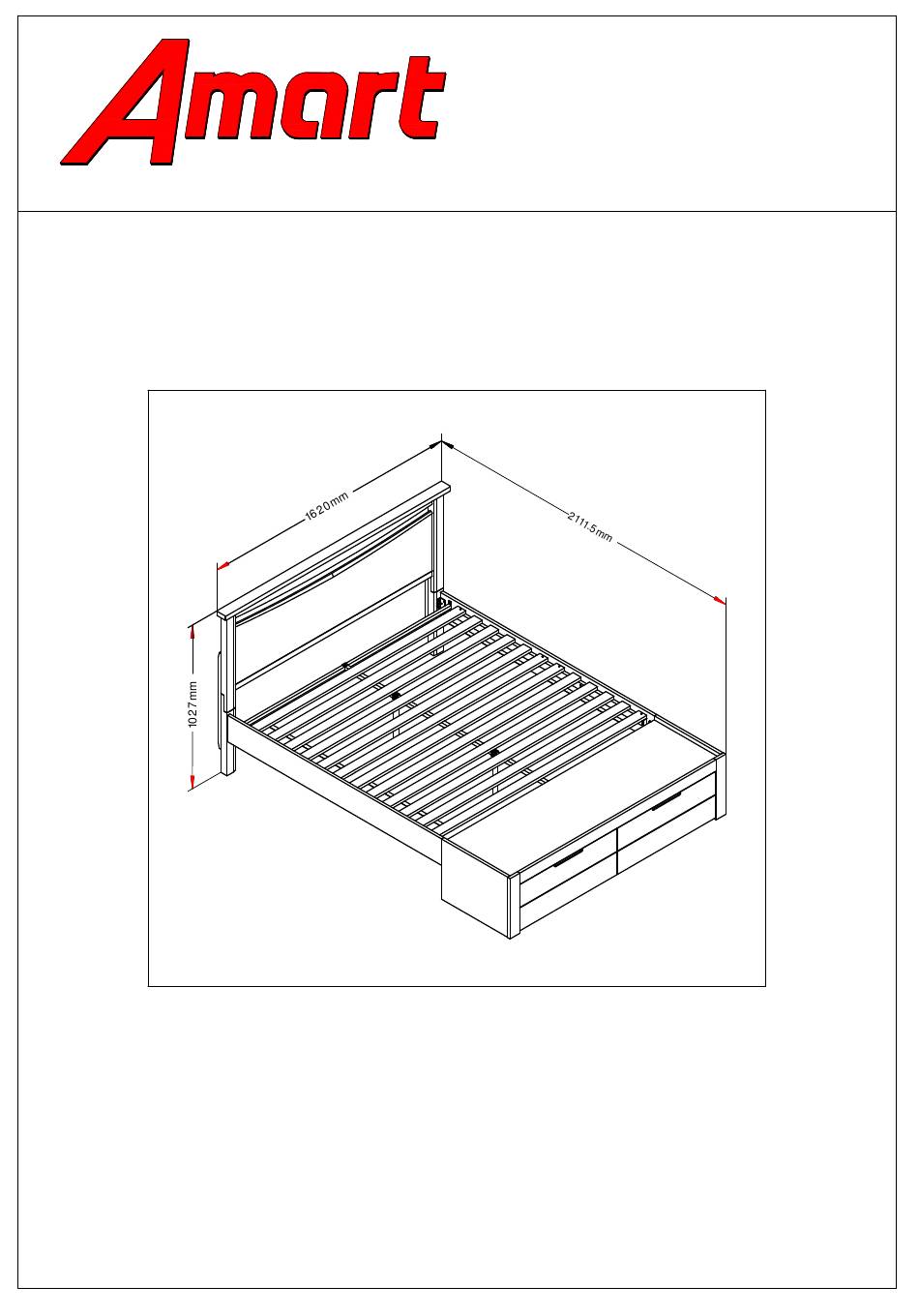

ASSEMBLY INSTRUCTION
NAHLA QUEEN BED
ITEM CODE - 70751
Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Freecall 1800 351 084.
1
70751
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture NAHLA 70751
Summary of Contents for Amart Furniture NAHLA 70751
- Page 1 For any assistance with assembly or for missing parts please phone Furniture Amart Furniture, Customer Service Freecall 1800 351 084. Imported by Amart Pty Ltd,Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Freecall 1800 351 084. 70751...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION BEFORE YOU START..1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product. 2. Check and ensure that you have all required contents for complete assembly. 3. Always read the assembly instructions carefully before beginning assembly. 4. -
Page 3: Parts List
PARTS LIST CENTRE BAR 1 PC HEADBOARD FRAME 1 PC HEADBOARD LEG - LEFT 1 PC SUPPORT LEGS c/w 2 PCS M8 x 40mm JCBB Bolt HEADBOARD LEG - RIGHT 1 PC WOOD SLATS FOOTBOARD FRAME 1 UNIT 12 PCS - 18mm x 59mm x 1523mm SIDE RAILS - L/R 2 PCS... - Page 4 STEP 1 : Attach headboard legs '2' & '3' to the headboard frame '1' using bolts 'D' as shown and tighten with allen key 'H'. After that attach back support '10' using bolts 'C' and dowels 'F' and tighten with allen key 'G'. M6x35mm C-8 Pcs M8x35mm...
- Page 5 STEP 3 : Fix cross bar ' 6 ' to the side rail with bolts ' B ' as shown using allen key ' G '. M6x15mm B-4 Pcs M6- Allen key G-1 Pc STEP 4 : Fix center bar ' 7 ' to the cross bar ' 6 ' and footboard drawer box with bolts ' B ' & ' C ' as shown using allen key ' G '.
- Page 6 STEP 5 : Fix bed support legs ' 8 ' as shown and tighten all bolts using allen key ' H '. M8- Allen key H-1 Pc STEP 6 : Put wood slats ' 9 ' to the side rails support and fix screws ' E ' at hole as shown. IMPORTANT NOTE : ALWAYS LIFT YOUR BED WHEN MOVING/RELOCATING - DO NOT DRAG.
- Page 7 Product Care for Hi-Gloss Items Hi-gloss lacquered furniture is more sensitive to marks and scratching then some other furniture products. It is important to exercise caution and care to maximise the life and beauty of this product. Following the below simple guidelines when using your hi-gloss product will protect your investment for years to come.
