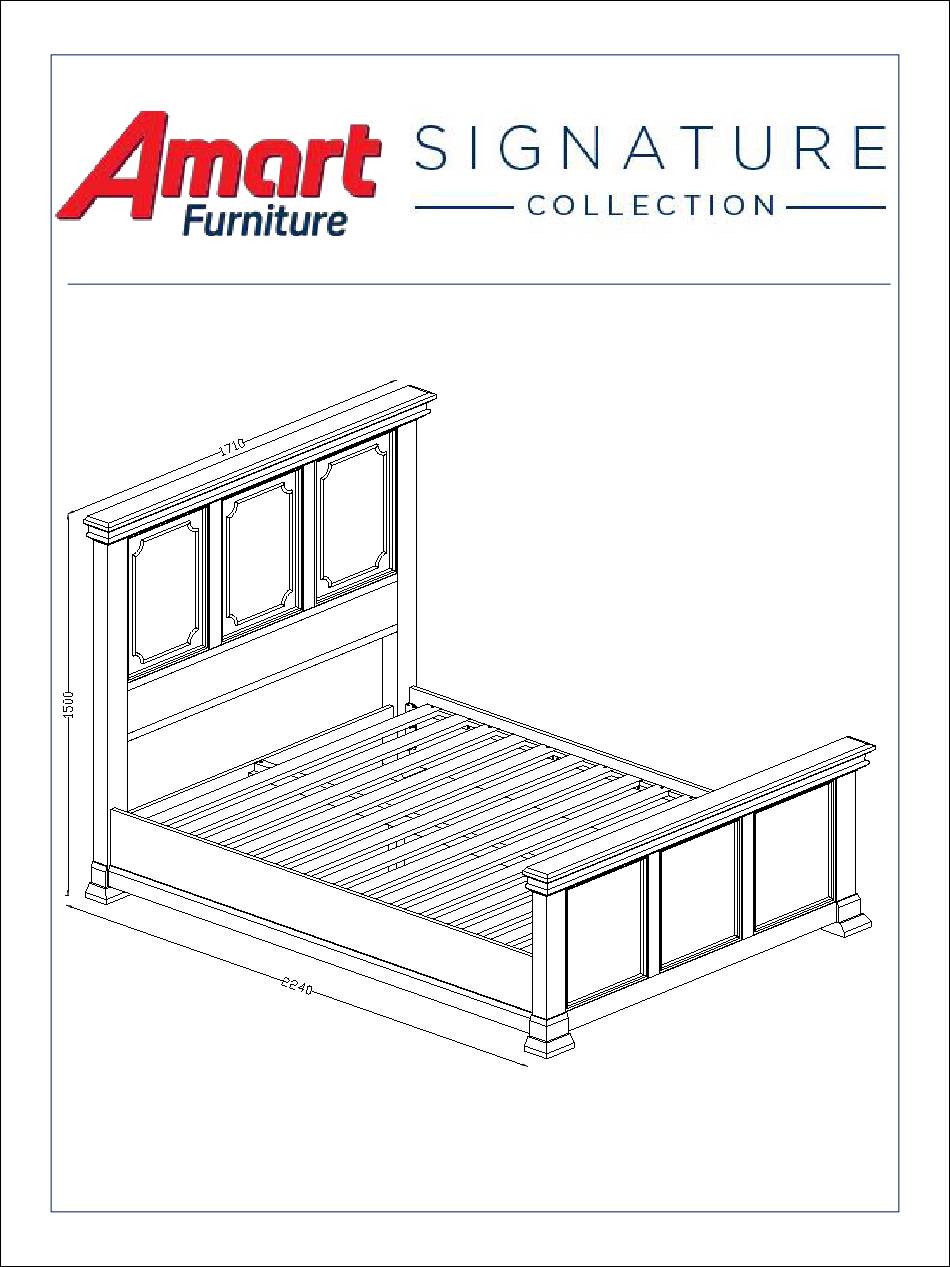

- Page 1 ASSEMBLY INSTRUCTION LA SALLE QUEEN BED ITEM CODE 63808 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 63808...
- Page 2 IMPORTANT: CARE GUIDE FOR YOUR TIMBER FURNITURE • Congratulations! You have just purchased a quality product from Amart Furniture. Please read on for important information regarding your purchase. • A multi-step finish is applied to all our furniture, but all wood comes from nature.
- Page 3 PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.
- Page 4 PARTS LIST Part DESCRIPTION In box Part DESCRIPTION In box HEADBOARD CENTRE RAILS FOOTBOARD SUPPORT LEGS SIDE RAILS SLATS A M6 X 10 BOLT B M6 X 60 BOLT C M5 ALLEN KEY 1 PCE D M4 ALLEN KEY 1 PCE PCES PCES E M4 X 30...
- Page 5 STEP 1: • Attach side rail (3)to headboard (1) and footboard (2) using bolts (a). • Tighten with Allen Key (c). STEP 2: • Attach Support legs (5) to Centre rail (4) with bolts (b) and Flat Washers (g)&(h). • Tighten with Allen Key (d).
- Page 6 STEP 3: • Attach centre rail (4) to Headboard (1) and Footboard (2) using Screw (f). • Use Screwdriver or Power Drill on Low Speed. STEP 4: • Attach Slats (6) to Siderail (3) using Screw (e). • Use Screwdriver or Power Drill on Low Speed. •...
- Page 7 ASSEMBLY IS COMPLETE CAUTION Always Lift Your Bed When Moving/Relocating – Do Not Drag. Dragging Can Cause The Centre Support Legs To Bend/Break 63808...
