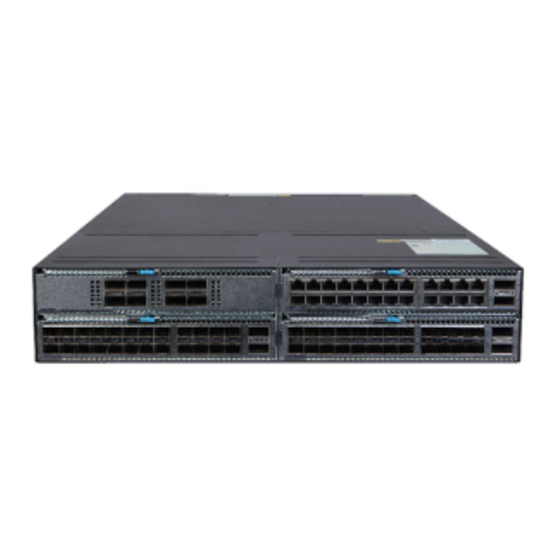

H3C S7500E-XS Series Command Reference Manual
Hide thumbs
Also See for S7500E-XS Series:
- Installation manual (64 pages) ,
- Troubleshooting manual (61 pages) ,
- Command reference manual (42 pages)
Related Manuals for H3C S7500E-XS Series
Summary of Contents for H3C S7500E-XS Series
- Page 1 H3C S7500E-XS Switch Series OpenFlow Command Reference Hangzhou H3C Technologies Co., Ltd. http://www.h3c.com Software version: S7500EXS-CMW710-R7178 Document version: 6W100-20160118...
- Page 2 , H3CS, H3CIE, H3CNE, Aolynk, Care, , IRF, NetPilot, Netflow, SecEngine, SecPath, SecCenter, SecBlade, Comware, ITCMM and HUASAN are trademarks of Hangzhou H3C Technologies Co., Ltd. All other trademarks that may be mentioned in this manual are the property of their respective owners Notice The information in this document is subject to change without notice.
- Page 3 Preface This command reference describes OpenFlow configuration commands. This preface includes the following topics about the documentation: • Audience. • Conventions. • About the H3C S7500E-XS documentation set. • Obtaining documentation. • Technical support. • Documentation feedback. Audience This documentation is intended for: •...
- Page 4 GUI conventions Convention Description Window names, button names, field names, and menu items are in Boldface. For Boldface example, the New User window appears; click OK. Multi-level menus are separated by angle brackets. For example, File > Create > > Folder.
- Page 5 Description Represents a security card, such as a firewall, load balancing, NetStream, SSL VPN, IPS, or ACG card. About the H3C S7500E-XS documentation set The H3C S7500E-XS documentation set includes the following categories of documents: Category Documents Purposes Product description and Marketing brochures Describes product specifications and benefits.
- Page 6 Obtaining documentation Access the most up-to-date H3C product documentation on the World Wide Web at http://www.h3c.com. Click the following links to obtain different categories of product documentation: [Technical Documents]—Provides hardware installation, software upgrading, and software feature configuration and maintenance documentation.
-
Page 7: Table Of Contents
Contents OpenFlow commands ····················································································· 1 active instance ··········································································································································· 1 classification ··············································································································································· 1 controller address ······································································································································· 2 controller connect interval ·························································································································· 3 controller echo-request interval ·················································································································· 4 controller mode ·········································································································································· 5 controller tcp nsr disable ···························································································································· 5 ... -
Page 8: Openflow Commands
OpenFlow commands active instance Use active instance to activate or reactivate an OpenFlow instance. Use undo active instance to deactivate an OpenFlow instance. Syntax active instance undo active instance Default An OpenFlow instance is not activated. Views OpenFlow instance view Predefined user roles network-admin Usage guidelines... -
Page 9: Controller Address
Predefined user roles network-admin Parameters global: Specifies the global mode. vlan: Specifies the VLAN mode. vlan-id: Specifies the VLAN ID in the range of 1 to 4094. vlan-mask: Specifies a VLAN mask in the range of 0 to 4095. The default value is 4095. loosen: Specifies the loosen mode. -
Page 10: Controller Connect Interval
ip ip-address: Specifies the IPv4 address of the controller. ipv6 ipv6-address: Specifies the IPv6 address of the controller. port port-number: Sets the port number used to establish TCP connections to the controller. The value range for the port number is 1 to 65535. The default value is 6633. local address: Specifies the source IP address used to establish TCP connections to the controller. -
Page 11: Controller Echo-Request Interval
Default The reconnection interval is 60 seconds. Views OpenFlow instance view Predefined user roles network-admin Parameters interval-value: Sets a reconnection interval in the range of 10 to 120 seconds. Usage guidelines The OpenFlow switch waits until the reconnection interval has expired before it attempts to reconnect to a controller. -
Page 12: Controller Mode
controller mode Use controller mode to set the controller mode for an OpenFlow instance. Use undo controller mode to restore the default. Syntax controller mode { multiple | single } undo controller mode Default The controller mode is multiple. Views OpenFlow instance view Predefined user roles network-admin... -
Page 13: Datapath-Id
Usage guidelines This command takes effect only on OpenFlow connections that the OpenFlow instance establishes with controllers through TCP. By default, an OpenFlow instance backs up OpenFlow connections established over TCP on the subordinate device. This prevents connection interruption when a master/subordinate switchover occurs. -
Page 14: Description
Default The default action of a table-miss flow entry is to drop packets. Views OpenFlow instance view Predefined user roles network-admin Examples # Configure the default action of a table-miss flow entry to forward packets to the normal pipeline. <Sysname> system-view [Sysname] openflow instance 1 [Sysname-of-inst-1] default table-miss permit description... - Page 15 Predefined user roles network-admin network-operator Parameters instance-id: Specifies an OpenFlow instance by its ID in the range of 1 to 4094. controller-id: Specifies a controller by its ID in the range of 0 to 63. If you do not specify a controller ID, this command displays information about all controllers for an OpenFlow instance.
-
Page 16: Display Openflow Flow-Table
Field Description Type of the connection between the OpenFlow instance and the controller: Connect type TCP or SSL. State of the connection between the OpenFlow instance and the controller: Connect state Idle or Established. Packets sent Number of packets that have been sent to the controller. Packets received Number of packets that have been received from the controller. - Page 17 Flow entry rule 1 information: cookie: 0x0, priority: 1, hard time: 0, idle time: 0, flags: none, byte count: --, packet count: -- Match information: Ethernet destination MAC address: 0000-0000-0001 Ethernet destination MAC address mask: ffff-ffff-ffff VLAN ID: 100, mask: 0xfff Instruction information: Write actions: Output interface: XGE1/1/4...
- Page 18 Instruction information: Set meter: 100 Apply actions: Output interface: XGE1/1/4 Write actions: Output interface: Controller, send length: 128 bytes Table 2 Command output Field Description Table information Information about the flow table. Table type Type of the flow table: MAC-IP or Extensibility. flow entry count Number of flow entries deployed by the controller.
- Page 19 Table 3 Match field types Field Mask field Description Input interface Ingress port (see Table Physical input interface Ingress physical port. Metadata Metadata mask Metadata and mask. Ethernet destination Ethernet destination MAC Ethernet destination MAC address and mask. MAC address address mask Ethernet source MAC Ethernet source MAC...
- Page 20 Field Mask field Description ICMPv6 code ICMPv6 code. Target IP address in an IPv6 Neighbor IPv6 ND target address Discovery message. IPv6 ND source MAC Source link-layer address in an IPv6 Neighbor address Discovery message. IPv6 ND target MAC Target link-layer address in an IPv6 Neighbor address Discovery message.
-
Page 21: Display Openflow Group
Field Description Decrement MPLS TTL Decreases the MPLS TTL by 1. Decrement IP TTL Decreases the IP TTL by 1. Copy TTL inwards Copies the TTL from the outermost header to the second outermost header. Copy TTL outwards Copies the TTL from the second outermost header to the outermost header. Table 5 Ports Port name Ingress port... - Page 22 <Sysname> display openflow instance 100 group Instance 100 group table information: Group count: 2 Group entry 103: Type: All, byte count: 55116, packet count: 401 Bucket 1 information: Action count 1, watch port: any, watch group: any Byte count 55116, packet count 401 Output interface: BAGG100 Bucket 2 information: Action count 1, watch port: any, watch group: any...
-
Page 23: Display Openflow Instance
Field Description Referenced information Information about the group entry referenced by flow entries. Count Total number of flow entries that reference the group entry. Flow table Flow table to which the flow entries that reference the group entry belong. Flow entry Flow entries that reference the group entry. - Page 24 Qinq Network: Disabled Tcp Nsr: Enabled Port information: Ten-GigabitEthernet1/1/3 Active channel information: Controller 1 IP address: 192.168.49.49 port: 6633 Controller 2 IP address: 192.168.43.49 port: 6633 Instance 200 information: Configuration information: Description : test Active status : Active Inactive configuration: None Active configuration: Classification VLAN, total VLANs(4)
- Page 25 TCP DSCP value: 10 Flow table: Table ID(type): 0(MAC-IP) Table ID(type): 1(Extensibility) Flow-entry max-limit: 65535 Datapath ID: 0x0000001234567890 Default table-miss: Permit Forbidden port: VLAN interface Qinq Network: Disabled Tcp Nsr: Enabled Active configuration: None Table 7 Command output Field Description Configuration information Information about the configuration.
-
Page 26: Display Openflow Meter
Field Description QinQ tagging for double-tagged packets passing an extensibility flow table. Qinq Network This field is not supported in the current software version. Whether OpenFlow connection backup is enabled: • Tcp Nsr Enabled. • Disabled. Port information Ports that have been added to the OpenFlow instance. Active channel information Information about active channels. -
Page 27: Display Openflow Summary
Count: 3 Flow table: 0 Flow entry: 1, 2, 3 Meter entry 200 information: Meter flags: KBPS Band 1 information Type: drop, rate: 10240kbps, burst size: 655360kb Byte count: --, packet count: -- Referenced information: Count: 0 Table 8 Command output Field Description Group entry count... -
Page 28: Fail-Open Mode
Predefined user roles network-admin network-operator Examples # Display brief OpenFlow instance information. <Sysname> display openflow summary Fail-Open mode: Se -- secure mode, Sa -- standalone mode Status Datapath-ID Channel Table-num Port-num Reactivate Active 0x0000000100001221 Connected Inactive 4094 Active 0x00000ffe00001221 Failed(Sa) 2 Table 9 Command output Field Description... -
Page 29: Flow-Entry Max-Limit
Default The connection interruption mode is secure after an OpenFlow instance is activated, and the controller deploys the table-miss flow entry (the action is Drop) to the OpenFlow instance. Views OpenFlow instance view Predefined user roles network-admin Parameters secure: Configures the OpenFlow switch to use flow tables for traffic forwarding after it is disconnected from all controllers. -
Page 30: Forbidden Port
Use undo flow-table to restore the default. Syntax flow-table { extensibility extensibility-table-id | mac-ip mac-ip-table-id } undo flow-table Default An OpenFlow instance has an extensibility flow table with ID 0. Views OpenFlow instance view Predefined user roles network-admin Parameters extensibility extensibility-table-id: Specifies an extensibility flow table by its ID in the range of 0 to 254. -
Page 31: In-Band Management Vlan
Parameters vlan-interface: Specifies VLAN interfaces that belong to an OpenFlow instance. vsi-interface: Specifies VSI interfaces that belong to an OpenFlow instance. This keyword does not take effect after it is configured. l3-physical-interface: Specifies Layer 3 Ethernet interfaces that belong to an OpenFlow instance. Examples # Forbid OpenFlow instance 1 to report VLAN interfaces that belong to the OpenFlow instance to controllers. -
Page 32: Mac-Learning Forbidden
Syntax mac-ip dynamic-mac aware undo mac-ip dynamic-mac aware Default An OpenFlow instance ignores dynamic MAC address messages sent from controllers. Views OpenFlow instance view Predefined user roles network-admin Usage guidelines This command configures an OpenFlow instance to support querying and deleting dynamic MAC addresses in only MAC-IP flow tables. -
Page 33: Openflow Instance
openflow instance Use openflow instance to create an OpenFlow instance and enter OpenFlow instance view. Use undo openflow instance to remove an OpenFlow instance. Syntax openflow instance instance-id undo openflow instance instance-id Default No OpenFlow instance exists. Views System view Predefined user roles network-admin Parameters... -
Page 34: Protocol-Packet Filter Slow
protocol-packet filter slow Use protocol-packet filter slow to create a highest-priority flow entry for dropping slow protocol packets. Use undo protocol-packet filter to restore the default. Syntax protocol-packet filter slow undo protocol-packet filter Default An OpenFlow instance does not have a highest-priority flow entry for dropping slow protocol packets. Views OpenFlow instance view Predefined user roles... -
Page 35: Tcp Dscp
tcp dscp Use tcp dscp to set a DSCP value for OpenFlow packets. Use undo tcp dscp to restore the default. Syntax tcp dscp dscp-value undo tcp dscp Default The DSCP value for OpenFlow packets is 10. Views OpenFlow instance view Predefined user roles network-admin Parameters... -
Page 36: Index
Index A C D F I M O P R T fail-open mode,21 flow-entry max-limit,22 active instance,1 flow-table,22 forbidden port,23 classification,1 controller address,2 in-band management vlan,24 controller connect interval,3 controller echo-request interval,4 controller mode,5 mac-ip dynamic-mac aware,24 controller tcp nsr disable,5 mac-learning forbidden,25 datapath-id,6 openflow instance,26...
