H3C S7500E Series Installation, Quick Start

H3C S7500E Switch Series Installation Quick Start-6PW101
H3C S7500E系列交换机 快速安装指南-6PW101
This document provides a brief guide for installing H3C S7500E switch series. For more installation
information, see H3C S7500E Switch Series Installation Guide.
本文档用于为H3CS7500E系列交换机的硬件安装提供简明快捷的操作指导，关于安装过程及注意事项
更全面、完整的介绍，请您参见《H3CS7500E系列交换机安装指导》。
The figures in this document are for illustration only.
设备及各模块外观请以实际发货为准，本文中的图片仅供参考。
The installation procedure is similar for the S7500E switches. The following uses an S7506E switch
as an example unless otherwise specified.
S7500E系列交换机各模块安装步骤类似，如无特殊说明，均以S7506E为例。
Safety recommendations 安全注意事项
To avoid equipment damage or bodily injury, read the following safety recommendations before installation.
Note that the recommendations do not cover every possible hazardous condition.
为了避免在安装交换机过程中对人和设备造成伤害，请您在安装前仔细阅读本节的安全建议。实际情况中包
括但不限于以下安全注意事项：
To prevent ESD damage, always wear an ESD wrist strap and make sure it is reliably grounded
!
before you touch the switch, cards, or PCB.
为防止人体静电损坏敏感元器件，请您在接触设备、单板、IC芯片等之前佩戴防静电腕带，并将防静电
腕带的另一端良好接地。
Do not install the switch, FRUs, or cables when the switch is powered on.
!
禁止带电安装设备、模块和线缆。
To avoid equipment damage or bodily injury, make sure the switch is reliably grounded before
!
powering on the switch.
请确保设备接地后再接通电源，以免危及人身和设备安全。

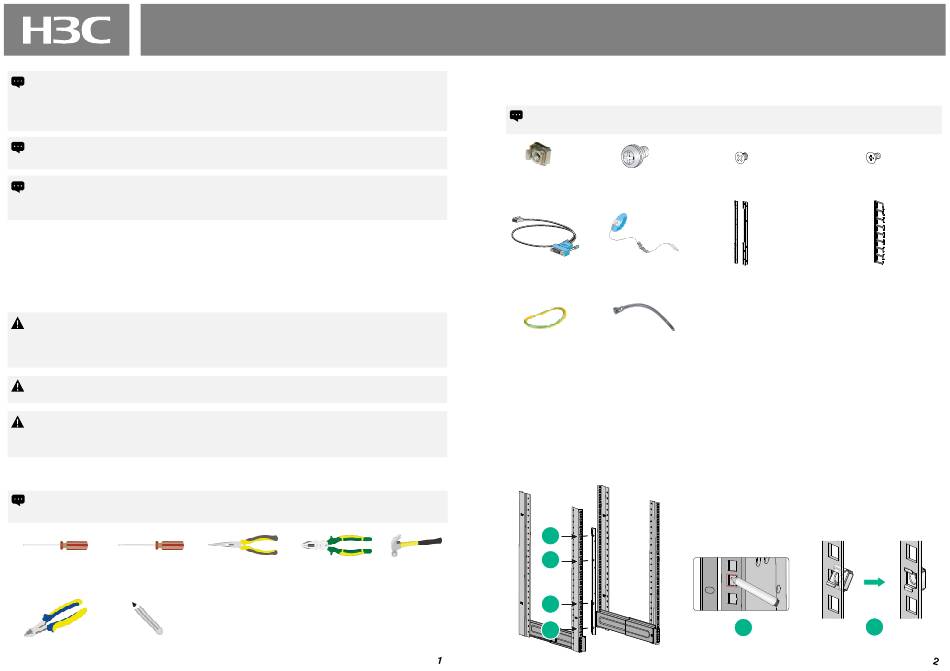

Tool list 工具参考
Prepare the following installation tools yourself as required.
请您根据实际安装需求自己准备安装工具。
Flat-blade screwdriver Phillips screwdriver
一字螺丝刀 十字螺丝刀
Diagonal pliers Marker
斜口钳 记号笔
Needle-nose pliers Wire-stripping pliers
尖嘴钳 剥线钳
Installation accessories 安装附件介绍
This section only lists the most commonly used installation accessories.
本节介绍了安装过程中最常用的安装附件。
Floating nut
浮动螺母
Console cable
配置口电缆
Grounding cable
接地线
Installing the switch 安装交换机
Attaching cage nuts to the rack 安装浮动螺母到机柜
1. Determine the cage nut installation holes
based on the mounting bracket and slide rail
installation positions.
2. Mark the cage nut installation holes.
3. Install cage nuts.
1
1
Claw hammer
羊角锤
1
1
M6 screw
M4 countersunk-head screw
M6 螺钉
M4沉头螺钉
ESD wrist strap Mounting brackets
防静电腕带 挂耳
Removable cable tie
可拆卸式扎带
1. 根据挂耳孔位及滑道的安装位置确定浮动螺母的
安装孔位。
2. 用记号笔在方孔条上标出浮动螺母的安装孔位。
3. 在对应位置安装浮动螺母组件。
2
BOM: 3104A0KB
M3 countersunk-head screw
M3沉头螺钉
Cable management bracket
走线架
