1-Port Gigabit Midspan PoE+ Injector - 802.3at and 802.3af

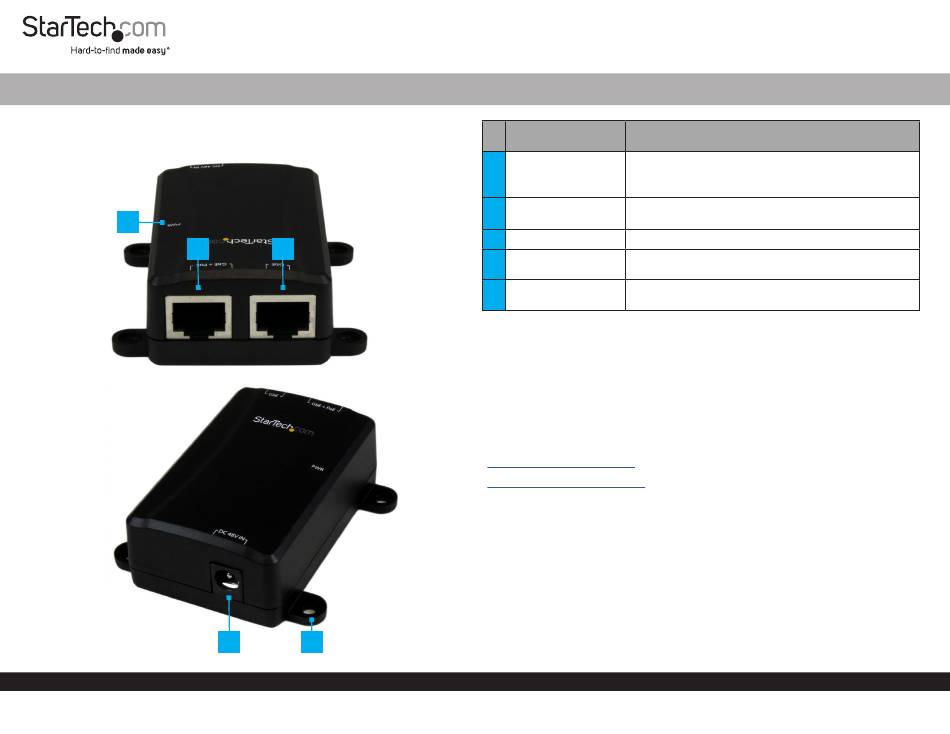

Product Diagram (POEINJ1G / POEINJ1GW)

Front
1
2
Back
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
3
4
5
Port/LED/Connector
• Indicates if power is being supplied
1
Power LED
• Solid Green = On
• Off = Off
• Connect a Network Cable to a PoE or PoE+ device
GbE + PoE Port
2
(Data + Power)
• Supports 1 Gbps, 100 Mbps, and 10 Mbps
3
GbE Port (Data)
• Connect a Network Cable to the PoE Injector
• Connect the PoE Injector to a Power Source using
4
DC Power Port
the included Power Adapter
• Allows for a permanent installation to a flat and stable
5
Mounting Holes
surface

Package Contents

• PoE+ Injector x1
• Mounting Screws x 4
• Power Adapter (NA for POEINJ1G, EU/UK/ANZ for POEINJ1GW) x 1
• Quick-Start Guide x 1

Requirements

For the latest requirements, please visit:
www.startech.com/POEINJ1G
www.startech.com/POEINJ1GW

Installation

Note: Refer to Figure 1 for a typical midspan installation.
1. Connect an Ethernet Cable from the Source Network Device (i.e, computer,
router, non-PoE switch) to the GbE port of the PoE Injector.
2. Connect an Ethernet cable to the GbE + PoE port on the PoE Injector.
3. Connect the other end of the Ethernet Cable used in Step 2 to either a Powered
Device (PD) that is PoE+ or PoE compliant, or to a PoE Splitter to separate Data
and Power.
4. Plug the included Power Adapter to a power source and connect it to the PoE
Injector. Ensure the Power LED is illuminated.
Quick-Start Guide
Function
Manual Revision: February 3, 2023
