Hardware Setup - StarTech.com NETRS232 Quick Installation Manual

2
1. Connect the power supply to the NETRS232 and to AC power.
2. The power (red) LED will light to indicate that the unit is
receiving power.
3. Connect a network cable to the Ethernet RJ-45 jack of the
NETRS232.The other end of the network cable can be attached
to either:
• an Ethernet hub or switch, using a length of standard
Ethernet network cable
• a host PC directly, using an Ethernet cross-over cable.

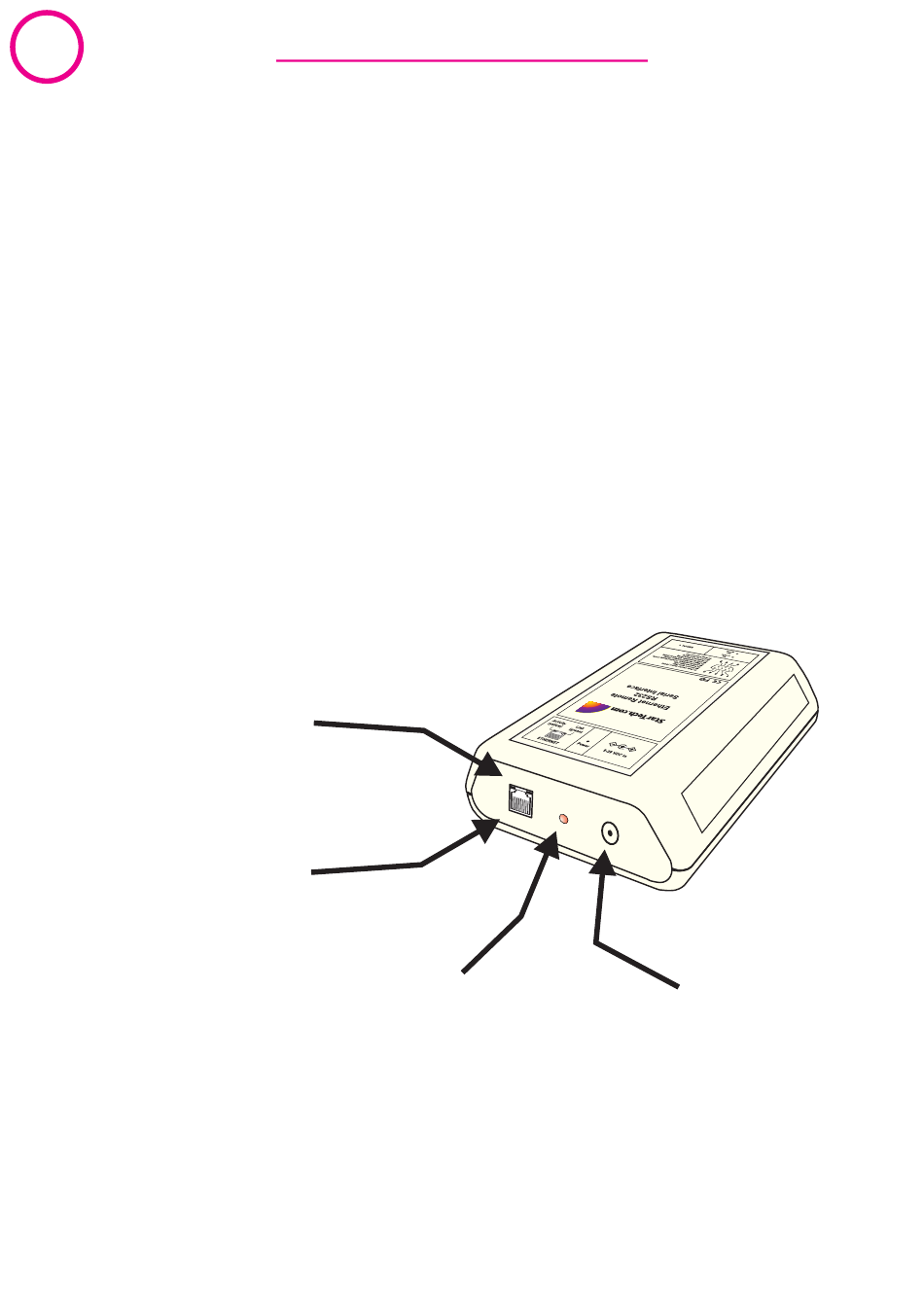

Network
Activity and Link
indicators
connector (RJ-45)
Network status is indicated by two LEDs on the RJ-45 connector.
The left (yellow) LED indicates network activity. It is on by default,
turning off when network activity occurs at the NETRS232.The right
(green) LED indicates a network link. It is off by default, but lights
when a network link exists.

Hardware Setup

Network
indicator
Power
Power
connector
