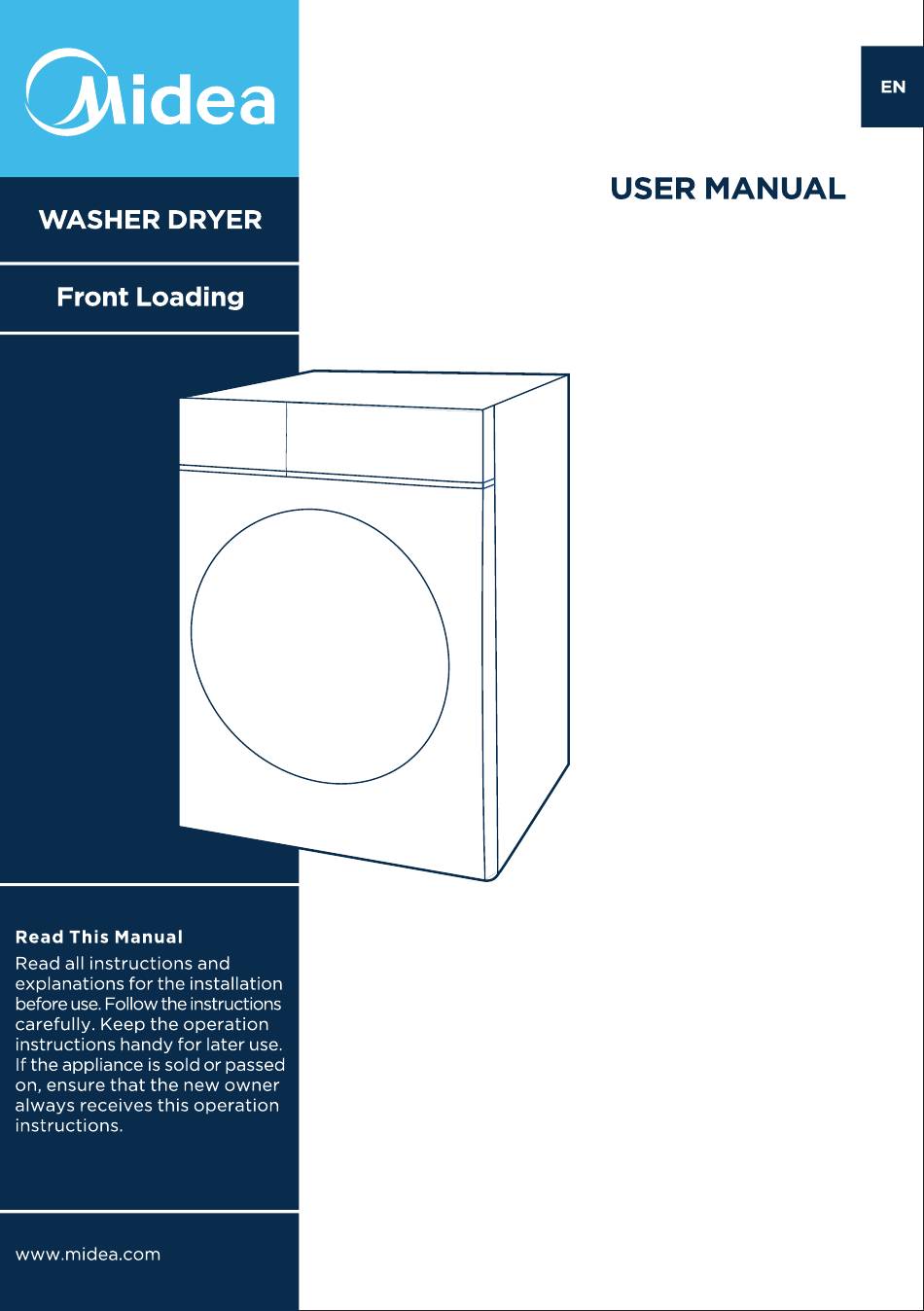

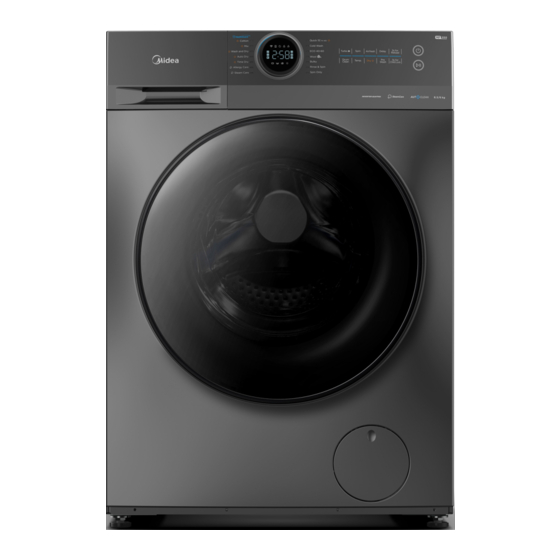

- Page 1 MODEL: MF200D100WB Series MF200D120WB Series...
- Page 2 Therefore, we reserve the right to make changes to the design, features and accessories of all types and models without prior notice. On our website www.midea.com you can also download the user manual in digital form and discover other products. We hope you enjoy using your machine.
-
Page 3: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS ....4 MAINTENANCE ........Safety Instructions ......4.1 Cleaning and Care ....... Cleaning the Cabinet......INSTALLATION ........Cleaning the Drum ......Product Description ...... Cleaning the Door Seal and Glass.. Accessories ........Cleaning the Inlet Filter ..... 2.2 Installation ...... -
Page 4: Safety Instructions
1 SAFETY INSTRUCTIONS INTENDED USE The product is intended only for home use and for textiles in household amounts suitable for washing and drying. This appliance is for indoor use only and not intended for built in use. Only use according to these instructions. - Page 5 1 SAFETY INSTRUCTIONS Warning! ELECTRIC SHOCK HAZARD • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.
- Page 6 1 SAFETY INSTRUCTIONS INSTALLATION LOCATION AND SURROUNDING All washing and additional substances are to • be kept in a safe place out of the reach of children. • Do not install the machine on a carpet floor. • The obstruction of the openings by a carpet can damage the machine.
- Page 7 1 SAFETY INSTRUCTIONS INSTALLATION • Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result. • This appliance is equipped with a single inlet valve and can be connected to the cold water supply only. •...
- Page 8 1 SAFETY INSTRUCTIONS regulations. • Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer’s instructions and local safety regulations. Warning! • Don´t use multiple plugs or extension cords. • The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
- Page 9 1 SAFETY INSTRUCTIONS Do not remove the drain pump filter while there • is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water. OPERATION AND MAINTENANCE Warning! •...
- Page 10 1 SAFETY INSTRUCTIONS backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine. • Fabric softeners or similar products should be used are recommended in their instructions. • Never try to open the door forcefully. •...
- Page 11 1 SAFETY INSTRUCTIONS when lifting. The machine door can not be used as a handle. ENVIRONMENT Disposal of old appliances (Only for EU countries) This appliance is labelled in accordance with the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). The directive provides the framework for the EU-wide take-back and recycling of waste equipment.
-
Page 12: Installation
2 INSTALLATION 2.1 Product Description Service flap Control panel Door Drain hose Power supply cord Detergent dispenser Note! • The product picture is for illustration only, please refer to real product as reference. Accessories 4 x Cover 1 x Owner’s Acoustic sponge 1 x Supply hose (optional) -
Page 13: Installation
2 INSTALLATION 2.2 Installation Tools Needed If Installation By Yourself (not include) Installation area Warning! • Stability is important to prevent the product from wandering! • Make sure the machine is standing leveled and stable. • Make sure that the product does not stand onto the power cord. •... -
Page 14: Unpacking The Machine
2 INSTALLATION Unpacking the machine Warning! • Packaging material (e.g. Films, Styrofoam) can be dangerous for children. • There is a risk of suffocation ! Keep all packaging well away from children. 1. Remove the cardboard box and styrofoam packing. 2. -
Page 15: Levelling The Machine
2 INSTALLATION Levelling the machine Warning! • The lock nuts on all four feet must be screwed tightly against the housing. 1. Loosen the lock nut. 2. Turn the foot until it reaches the floor. 3. Adjust the legs and lock the nuts with a spanner. -
Page 16: Acoustic Sponge
2 INSTALLATION There are two ways to place the end of drain hose: Water trough 1.Put it into the water trough. 2.Connect it to the branch drain pipe of the trough. Acoustic Sponge Note! • Please make sure to assemble the acoustic sponges, which can effectively reduce the noise caused by the machine while working, in order to provide you with a more peaceful and quiet living environment. -
Page 17: Operation
3 OPERATION 3.1 Quick Start Caution! • Before washing, please make sure the washing machine is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use. - Page 18 3 OPERATION 2. Washing Power on Select programme Press Start/Pause to Select function or remain start the program default settings 3. After Washing Buzzer beep and “End” on display.
-
Page 19: Before Each Washing
3 OPERATION 3.2 Before Each Washing • The ambient temperature of the machine should be 5 °C -40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use. -
Page 20: Detergent Dispenser
3 OPERATION 3.3 Detergent Dispenser Pre wash Main wash Softener Release button to pull out the dispenser Caution! • Detergent only need to be added in compartment I ”after “ selecting pre-wash function. • Do not put laundry beads into the detergent dispenser. Programme Programme Quick 15’... -
Page 21: Control Panel
3 OPERATION 3.4 Control Panel On/Off Turn the appliance on and off. Start/Pause Start or pause your programme. Option This allows you to select additional functions and will light when selected. Programmes Available according to the laundry type. Display The display shows settings, estimated remaining time, options and status messages. -
Page 22: Display
3 OPERATION 3.5 Display Display Wash Time Delay Time Speed Error Temp. Delay Remote Control Child Lock Door Lock AutoClean SteamCare Wash Pre Wash Spin Rinse Time Dry Airfresh WiFi... -
Page 23: Programmes
3 OPERATION 3.6 Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made Cotton of cotton or linen. Mixed load consisting of textiles made of cotton and synthetics. Auto Dry This program is designed for drying clothes automatically to achieve the best dry performance. - Page 24 3 OPERATION Drum Clean Specially set in this machine to clean the drum and tube. It applys 90 °C high temperature sterilization to make the clothes washing more green. When this programme is performed, the clothes or other washing cannot be added.
- Page 25 3 OPERATION Programme Display Time Washing Load/Dry load(kg) 10.0/7.0 12.0/8.0 10.0/12.0 Cotton 10.0/7.0 12.0/8.0 3:49 10.0/7.0 12.0/8.0 1:30 6.0/6.0 5:31 Wash and Dry 5.0/5.0 4:33 Auto Dry --/7.0 --/8.0 Time Dry --/0.5 --/0.5 0:40 2:38 Allergy Care 1:57 Steam Care 0:15 Quick 15’...
- Page 26 3 OPERATION 3.7 Option Default Default spin Additional Cycle speed in rpm Temp.(℃) functions 1400 Quick 15’ Cold 1h WD – 1000 20℃ 1000 ECO 40-60 Wool 1000 Bulky 1000 Rinse & Spin 1000 Spin Only Steam Care Allergy Care Time Dry 1400 Auto Dry...
- Page 27 3 OPERATION Temp. When needed, the washing temperature can be adjusted by pressing the temperature button in the following steps: Cold - 20°C - 30°C - 40°C - 60°C - 90°C. Spin When needed, the spinning speed can be adjusted pressing the Speed button in the following steps: 1400：0-400-600-800-1000-1200-1400.
- Page 28 3 OPERATION Reload This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To Press [3s for Reload]3sec.
- Page 29 3 OPERATION AutoClean The self-clean function will be automatically activated during every washing cycle. Hygiene Pro system will keep your laundry always clean. Environmentally save time and ease your laundry. Turbo The function can decrease the washing time. SteamCare SteamCare is the function added before main wash, which will generate warm steam to sterilization and greater washing performance especially for cold wash.
-
Page 30: Maintenance
4 MAINTENANCE 4.1 Cleaning and Care Warning! • Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. -
Page 31: Cleaning The Inlet Filter
4 MAINTENANCE Cleaning the Inlet Filter Note! • Diminishing water flow is a sign that the filter need to be cleaned. 1. Close the tap and 2. Clean the filter with remove the water a brush. supply hose from it. 3. -
Page 32: Cleaning The Detergent Dispenser
4 MAINTENANCE Cleaning the Detergent Dispenser 1. Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush. 2. Lift the softener cover off the dispenser drawer and wash both items with water. -
Page 33: Cleaning The Drain Pump Filter
4 MAINTENANCE Cleaning the Drain Pump Filter Warning! • Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. • Be careful of hot water. Wait for water cooling down. Risk of scalding! •... -
Page 34: Emergency Door Release
4 MAINTENANCE Emergency Door Release In case of power failure or other circumstances and door cannot be opened. If it is necessary to open the door under this circumstances, please pull down the pull cord inside emergency door and restore the pull cord after opening the door. -
Page 35: Trouble Shooting
4 MAINTENANCE 4.2 Trouble Shooting Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible cause Solution Appliance does Door is not closed Close the door properly not start properly.Clothes are... -
Page 36: Customer Service
4 MAINTENANCE 4.3 Customer service Spare part for your appliance are available for a minimum of 10 years. In case of questions, please contact our local customer service center. Warning! Risk of electric shock • Never try repair an appliance which is defective of presumed to defective. -
Page 37: Technical Specification
5 TECHNICAL SPECIFICATION Model MF200D100WB Series Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa Washing/Dry Capacity 10.0/7 kg 12.0/8.0kg Dimension 595mm 595mm 850mm 850mm 535mm 595mm Weight 66kg 73kg Rated Power 1900W 1900W... -
Page 38: Smart Function
6 SMART FUNCTION Use Your Appliance with the MSmartHome App Before you start, make sure that: 1. Your smartphone is connected to home WiFi network,and you know the network password. 2. Make sure you are near the home appliance. 3. The 2.4GHz band wireless signal is enabled on your wireless router. Follow the below steps to enter the remote control state Download the MSmartHome app On an app market (Google Play Store, Apple App Store), search for... - Page 39 7 SMART FUNCTION 4:If a message of "Smart devices discovered nearby" appears, click to add. 5:If no message appears, select "+" on the page and select your device in the list of nearby devices available. If your device is not listed, please add your device manually by the device category and device model.
- Page 40 7 SMART FUNCTION WiFi Status Light Slowly flashing Waiting for connection Connecting Quickly flashing Quickly flashing solid Connected to your wireless router Notes Make sure your devices are powered on. Keep your mobile phone close enough to your device when you are connecting network to your device.
- Page 42 V1.0 16238000A *****...
