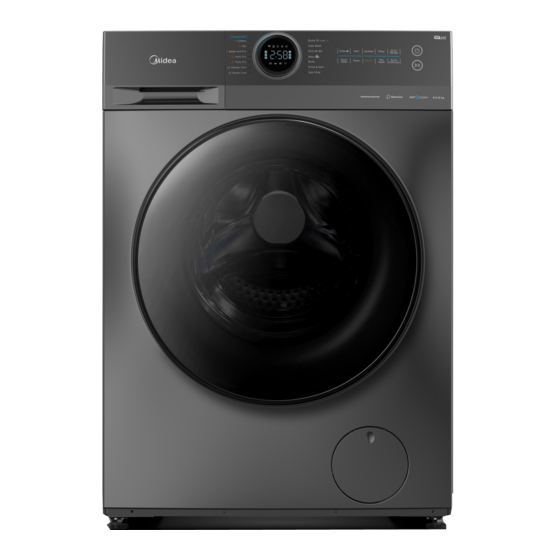

Midea MF200D85 Owner's Manual
  1. Manuals
  2. Brands
  3. Midea Manuals
  4. Washer/Dryer
  5. MF200D85
  6. Owner's manual

Midea MF200D85 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Washing Machine
Washer Dryer
Read This Manual
Read all instructions and explanations for the installation before use.
Follow the instructions carefully. Keep the operation instructions
handy for later use. If the appliance is sold or passed on, ensure that
the new owner always receives this operation instructions.
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !
Washer Dryer
OWNER'S MANUAL
MODEL:
MF200D85B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MF200D85 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Midea MF200D85

Summary of Contents for Midea MF200D85

  • Page 1 Washing Machine Washer Dryer Washer Dryer OWNER’S MANUAL MODEL: MF200D85B Read This Manual Read all instructions and explanations for the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the appliance is sold or passed on, ensure that the new owner always receives this operation instructions.

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS Safety Instructions ........... INSTALLATION Product Description ........Installation ............OPERATION Quick Start ............Before Each Washing ........Detergent Dispenser ........Control Panel ............Programmes............Option..............MAINTENANCE Cleaning and Care ........... Trouble Shooting ..........Technical Specifications ........

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Safety Instructions Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty. Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in...
  • Page 4 SAFETY INSTRUCTIONS •The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 5: Installation

    SAFETY INSTRUCTIONS •Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see „Maintenance - Cleaning of drain pump filter“) to avoid damages caused by frost.
  • Page 6 SAFETY INSTRUCTIONS •Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer‘s instructions and local safety regulations. Warning! •Don´t use multiple plugs or extension cords. •The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
  • Page 7 SAFETY INSTRUCTIONS OPERATION AND MAINTENANCE Warning! ！ •Never stop the washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat can dissipate. •The washer dryer is not to be used if industrial chemicals have been used for cleaning.
  • Page 8 SAFETY INSTRUCTIONS •Always unplug the appliance and close the water tap before cleaning and maintenance and after each use. •Never pour water over the appliance for cleaning purpose. Risk of electric shock! •Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Page 9 SAFETY INSTRUCTIONS Packaging Old appliance This marking indicates that this product should not be disposed with other household wastes throughout the EU.To prevent possible harm to the environment or human health from uncontrolled waste disposal,recycle it responsibly to promote the sustainable reuse of material resources.To return your used device, please use the collection systems or contact the retailer where the product was purchased.

  • Page 10: Product Description

    INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service flap Drain hose Note! • The product picture is for illustration only, please refer to real product as reference. Accessories 4 x Cover caps 1 x Owner’s manual 1 x Supply hose cold water...

  • Page 11: Installation

    INSTALLATION Installation Installation area Warning! ！ • Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable. • Make sure that the product does not stand onto the power cord. W> 20mm •...
  • Page 12 INSTALLATION Remove transport bolts Warning! ！ • You must remove the transport bolts from the backside before using the product. Loosen the 4 Remove the bolts Close the holes transport bolts with including the rubber using the cover a spanner. parts and keep them caps.
  • Page 13 INSTALLATION Drain Hose Warning! ！ • Do not kink or protract the drain hose. • Position drain hose properly ,otherwise damage might result of water leakage. There are two ways to place the end of drain hose: 2.Connect it to the branch drain pipe of 1.Put it into the water trough.

  • Page 14: Operation

    OPERATION Quick Start Caution! • Before washing, please make sure the washer dryer is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use.
  • Page 15 OPERATION 1. Before Washing earth terminal Main wash Softener Prewash Load Close door Add detergent Plug in Open tap Note! • Detergent need to be added in compartment I if the pre-wash function is selected. 2. Washing Power on Select programme Select function or Press remain default Start/Pause to...

  • Page 16: Before Each Washing

    OPERATION Before Each Washing • The ambient temperature of the washer dryer should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.

  • Page 17: Detergent Dispenser

    OPERATION Detergent Dispenser Pre wash Main wash Softener Release button to pull out the dispenser Caution! • Detergent only need to be added in "compartment I “after selecting pre-wash function. Programme Programme Quick 15’ Cotton Cold Wash Wash and Dry ECO 40-60 Auto Dry Wool...
  • Page 18 OPERATION Detergent Recommendation Recommended washing Washing Type of laundry and textile Wash cycles detergent temp. Heavy-duty detergent with bleaching agents and White laundry made from 20/30 Cotton,ECO 40-60,Mix,Bulky optical brighteners boil-proof cotton or linen 40/60 Coloured laundry made Colour detergent without Cotton,ECO40-60,Mix,Bulky, Cold/20/ from cotton or linen...

  • Page 19: Control Panel

    OPERATION Control Panel On/Off Start/Pause Turn the appliance on and off. Start or pause your programme. Programmes Option Available according to the laundry type. This allows you to select additional functions and will light when selected. Display The display shows settings, estimated remaining time, options and status messages. Display Wash Time Delay Time...

  • Page 20: Programmes

    OPERATION Programmes Programme Display Time Washing Load/Dry load(kg) Cotton 8.5/6.0 3:49 8.5/6.0 1:30 Wash and Dry 6.0/6.0 5:04 Auto Dry --/6.0 4:14 Time Dry --/0.5 0:40 Allergy Care 2:38 Steam Care 1:57 Quick 15’ 0:15 Cold Wash 0:58 ECO 40-60 3:35 Wool 1:07...
  • Page 21 OPERATION Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton or Cotton linen. Mixed load consisting of textiles made of cotton and synthetics. Auto Dry This program is designed for drying clothes automatically to achieve the best dry performance.
  • Page 22 OPERATION Option Default spin speed in rpm 1400 Quick 15’ Cold 1h WD – Cold Wash Cold ECO 40-60 1400 Wool Bulky 1000 1000 Rinse & Spin 1000 Spin Only Steam Care Allergy Care 1400 Time Dry 1400 Auto Dry 1400 Wash and Dry 1400...
  • Page 23 OPERATION Spin Speed Speed When needed, the spinning speed can be adjusted pressing the Speed button in the following steps: 1400: 0-400-600-800-1000-1200-1400 Delay Delay 1. Select a programme 2.Press the Delay button to choose the delaying time 0-24h 3.Press [Start/Pause] to start the delay operation Delay Setting time Start...
  • Page 24 OPERATION Press the Dry button continuously to choose the dry level: Gentle Dry(Soft) Normal Dry(Normal)/ Extra Dry,and Time Dry. Gentle Dry(Soft): Clothes are dried to damp state for ironing. Normal Dry(Normal): Clothes are ready for storing in the wardrobe. Extra Dry: Clothes are dried complete to be worn directly. Timed Dry:Drying your laundry and finish within given time.
  • Page 25 OPERATION Reload This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To Press [3s for Reload]3sec.

  • Page 26: Maintenance

    MAINTENANCE Cleaning and Care Warning! • Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary.
  • Page 27 MAINTENANCE Cleaning the Inlet Filter Note! • Diminishing water flow is a sign that the filter need to be cleaned. 1. Close the tap and remove the water supply hose from it. 2. Clean the filter with a brush. 3. Unscrew the water supply hose from the backside of the machine.
  • Page 28 MAINTENANCE Cleaning the Drain Pump Filter Warning! • Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. • Be careful of hot water. Allow the water to cool down. Risk of scalding! •...
  • Page 29 MAINTENANCE Emergency Door Release In case of power failure or other circumstances and door cannot be opened. If it is necessary to open the door under this circumstances, please pull down the pull cord inside emergency door and restore the pull cord after opening the door. Emergency door pull cord pen filter door 2.Useing a straght screwdriver...

  • Page 30: Trouble Shooting

    MAINTENANCE Trouble Shooting Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible cause Solution Appliance does Door is not closed properly. Close the door properly and not start Clothes are stuck.

  • Page 31: Technical Specifications

    MAINTENANCE Customer service Spare part for your appliance are available for a minimum of 10 years. In case of questions please contact our customer service at: Warning! Risk of electric shock • Never try repair an appliance which is defective of presumed to be defective. You may put your own and future users' lives in danger.Only authorised specialists are allowed to carry out this repair work.
  • Page 32 QUESTIONS OR COMMENTS Country Contact Center Web Site Thailand +6621077799 http://www.midea.com/th Myanmar +09260367229 https://www.gbs.com.mm/en/about/vsk/ Cambodia +85523212435 http://bluemidea.com http;//vn.midea.com Vietnam +1800588863 Philippines +63288635522 http://www.mideaph.com http://id.midea.com Indonesian +628001888523 Malaysia https://www.midea.com/my/ +60392211033 Singapore +62222536 https://www.midea.com/sg/ This product is RoHS compliant.
  • Page 33 V1.0 16138100A30890...
