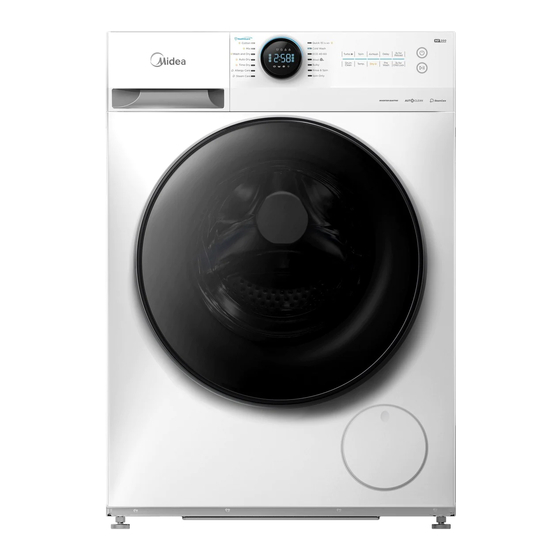

Midea MFL80D14 Owner's Manual
  1. Manuals
  2. Brands
  3. Midea Manuals
  4. Washer/Dryer
  5. MFL80D14
  6. Owner's manual

Midea MFL80D14 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Washer Dryer
OWNER'S MANUAL
MFL80D14
Read This Manual
Read all instructions and explanations for the
installation before use. Follow the instructions
carefully. Keep the operation instructions handy
for later use. If the appliance is sold or passed
on, ensure that the new owner always receives
this operation instructions.
This manual is for reference only, the factory specifications shall prevail.
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MFL80D14 and is the answer not in the manual?

Questions and answers

Related Manuals for Midea MFL80D14

Summary of Contents for Midea MFL80D14

  • Page 1 Washer Dryer OWNER’S MANUAL MFL80D14 Read This Manual Read all instructions and explanations for the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the appliance is sold or passed on, ensure that the new owner always receives this operation instructions.

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATION Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Programmes............Option..............MAINTENANCE Cleaning and Care ..........Trouble Shooting ............ Customer service ........... Technical Specifications .........

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Safety Instructions Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty. Explanation of the symbols: Warning! This combination of symbol and signal word indicates...
  • Page 4 SAFETY INSTRUCTIONS •The appliance can be used by children aged from 8 years old or above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 5: Installation

    SAFETY INSTRUCTIONS •Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see “Maintenance - Cleaning of drain pump filter“) to avoid damages caused by frost.
  • Page 6 SAFETY INSTRUCTIONS •Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer‘s instructions and local safety regulations. Warning! •Don´t use multiple plugs or extension cords. •The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
  • Page 7 SAFETY INSTRUCTIONS OPERATION AND MAINTENANCE Warning! ！ •Never stop the washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat can dissipate. •The washer dryer is not used if industrial chemicals have been used for cleaning.
  • Page 8 SAFETY INSTRUCTIONS •Always unplug the appliance and close the water tap before cleaning, maintenance and after each use. •Never pour water over the appliance for cleaning purpose. Risk of electric shock! •Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Page 9 SAFETY INSTRUCTIONS Packaging/Old appliance Effective from 31 December 2018, the disposal licensing control, import and export permit control and landfill disposal ban in respect of abandoned regulated electrical equipment (REE) have commenced. Any person who is engaged in the storage, treatment, reprocessing or recycling of abandoned REE must obtain a waste disposal licence;...

  • Page 10: Product Description

    INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories 4 x Transport 1 x Owner’s manual 1 x Supply hose hole plug...

  • Page 11: Installation

    INSTALLATION Installation Installation area Warning! ！ • Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable. • Make sure that the product does not stand onto the power cord. W> 20mm •...
  • Page 12 INSTALLATION Remove transport bolts Warning! ！ • You must remove the transport bolts from the backside before using the product. Loosen the 4 transport Remove the bolts Close the holes using the bolts with a spanner. including the rubber parts transport hole plugs.
  • Page 13 INSTALLATION Drain Hose Warning! Warning! ！ ！ • Do not kink or protract the drain hose. • Position drain hose properly ,otherwise damage might result of water leakage. There are two ways to place the end of drain hose: 1.Put it into the water trough. 2.Connect it to the branch drain pipe of the trough.

  • Page 14: Operation

    OPERATION Quick Start Caution! • Before washing, please make sure the washer dryer is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use.
  • Page 15 OPERATION 1. Before Washing earth terminal Main wash Softener Prewash Close door Plug in Open tap Load Add detergent Note! • Detergent need to be added in case I if the pre-wash function is selected. 2. Washing Power on Select programme Select function or Press remain default Start/Pause to...

  • Page 16: Before Each Washing

    OPERATION Before Each Washing • The ambient temperature of the washer dryer should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.

  • Page 17: Detergent Dispenser

    OPERATION Detergent Dispenser Pre wash Main wash Softener Release button to pull out the dispenser Caution! • Detergent only need to be added in "case I “after selecting pre-wash function. Programme Programme Cotton Quick 15’ Cold Wash ECO 40-60 Wash and Dry Wool Auto Dry Time Dry...
  • Page 18 OPERATION Detergent Recommendation Recommended washing Washing Type of laundry and Wash cycles detergent temp. textile Heavy-duty detergent with White laundry made from bleaching agents and 20/30 Cotton,ECO 40-60,Mix,Bulky boil-proof cotton or linen optical brighteners 40/60 Coloured laundry made Colour detergent without Cotton,ECO40-60,Mix,Bulky, Cold/20/ from cotton or linen...

  • Page 19: Control Panel

    OPERATION Control Panel Power Start/Pause Product is switched on/off. Press the button to start or pause the washing cycle. Programmes Option Available according to the laundry type. This allows you to select additional functions and will light when selected. Display The display shows settings, estimated remaining time, options and status messages for your washer.

  • Page 20: Programmes

    OPERATION Programmes Programme Display Time Washing Load/Dry load(kg) Cotton 8.0/6.0 3:49 8.0/6.0 1:30 Wash and Dry 6.0/6.0 5:04 Auto Dry --/6.0 4:14 Time Dry --/0.5 0:40 Allergy Care 2:38 Steam Care 1:57 Quick 15’ 0:15 Cold Wash 0:58 ECO 40-60 3:35 Wool 1:07...
  • Page 21 OPERATION Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton or Cotton linen. Mixed load consisting of textiles made of cotton and synthetics. Auto Dry This program is designed for drying clothes automatically to achieve the best dry performance.
  • Page 22 OPERATION Option Default spin speed in rpm 1400 Quick 15’ Cold 1h WD – Cold Wash Cold ECO 40-60 1400 Wool Bulky 1000 Rinse & Spin 1000 Spin Only 1000 Steam Care Allergy Care Time Dry 1400 Auto Dry 1400 Wash and Dry 1400 Cotton...
  • Page 23 OPERATION Spin Spin When needed, the spinning speed can be adjusted by pressing the Spin button in the following steps: 1400: 0-400-600-800-1000-1200-1400 Delay 1. Select a programme 2.Press the Delay button to choose the delaying time 0-24h 3.Press [Start/Pause] to start the delay operation Delay Setting time Start...
  • Page 24 OPERATION Press the Dry button continuously to choose the dry level: Gentle Dry Normal Dry/ Extra Dry,and Time Dry. Gentle Dry: Clothes are dried to damp state for ironing. Normal Dry: Clothes are ready for storing in the wardrobe. Extra Dry: Clothes are dried complete to be worn directly. Time Dry:Drying your laundry and finish within given time.
  • Page 25 OPERATION Reload This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To Press [3s for Reload]3sec.

  • Page 26: Maintenance

    MAINTENANCE Cleaning and Care Warning! • Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary.
  • Page 27 MAINTENANCE Cleaning the Inlet Filter Note! • Diminishing water flow is a sign that the filter need to be cleaned. 1. Close the tap and remove the water supply hose from it. 2. Clean the filter with a brush. 3. Unscrew the water supply hose from the backside of the machine.
  • Page 28 MAINTENANCE Cleaning the Drain Pump Filter Warning! • Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. • Be careful of hot water. Allow the water to cool down. Risk of scalding! •...
  • Page 29 MAINTENANCE Emergency Door Release In case of power failure or other circumstances and door cannot be opened. If it is necessary to open the door under these circumstances, please pull down the pull cord inside emergency door and restore the pull cord after opening the door. Emergency door pull cord pen filter door 2.Using a straight screwdriver...

  • Page 30: Trouble Shooting

    MAINTENANCE Trouble Shooting Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible cause Solution Appliance does Door is not closed properly. Close the door properly and not start Clothes are stuck.

  • Page 31: Customer Service

    • This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle. Technical Specifications Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa Model MFL80D14 Washing Capacity 8.0kg Drying Capacity 6.0kg Dimension(W*D*Hmm) 595*475*850 Net Weight 65kg...
