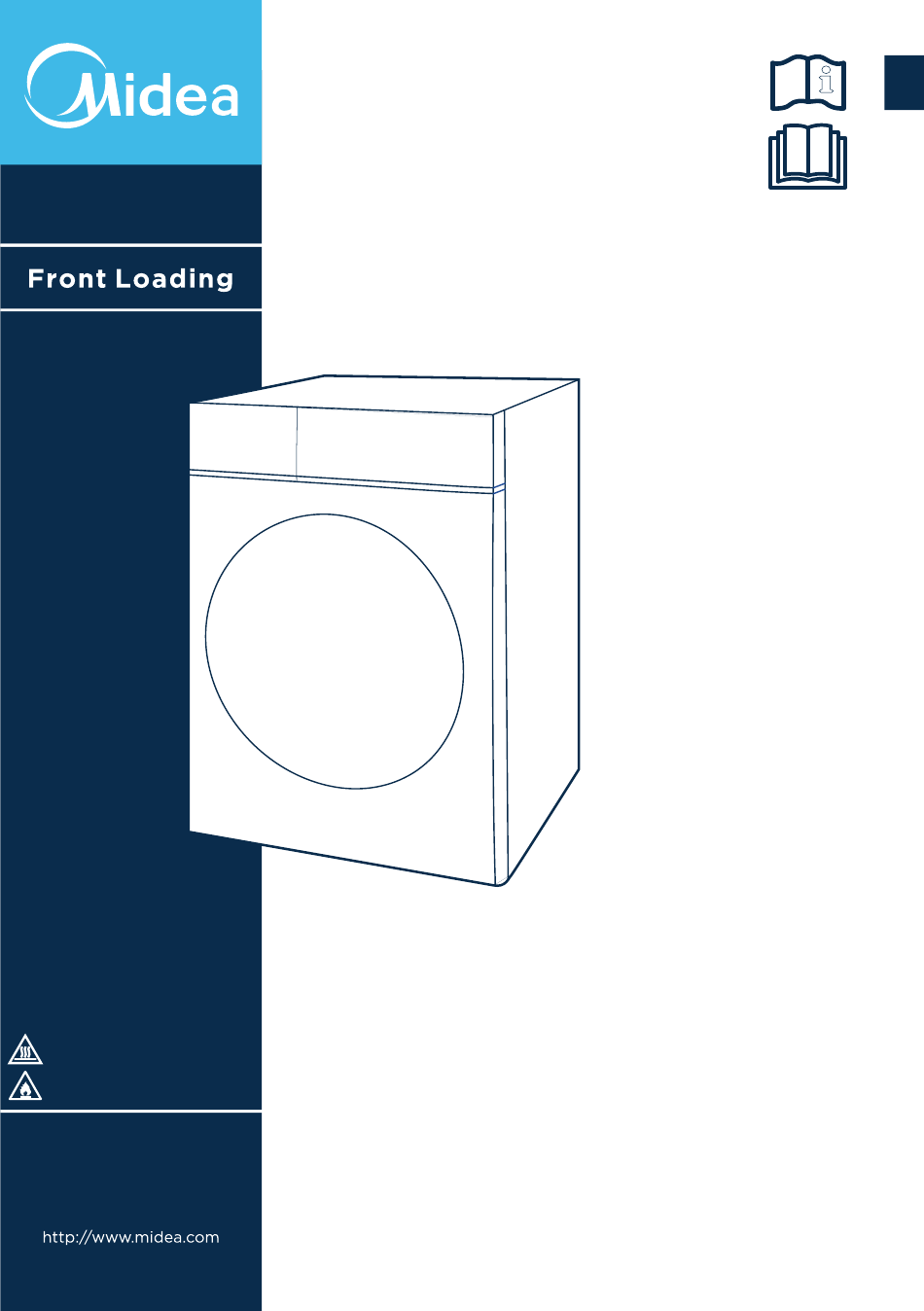

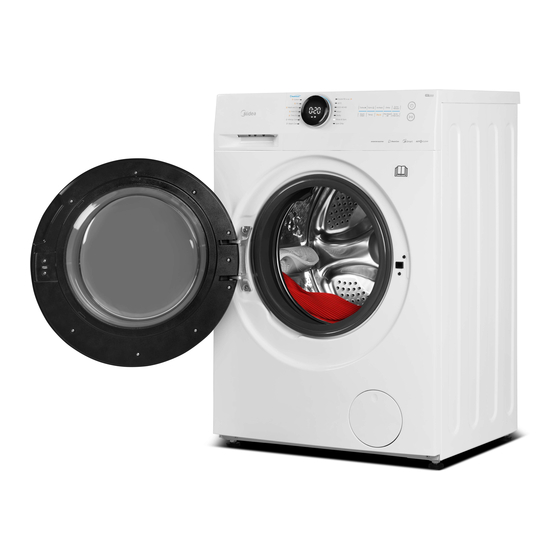

WASHER DRYER
Read This Manual
Use all instructions and explanations on
delete installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
product is sold or passed on then ensure
that the new owner always receives this
manual.
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !
USER MANUAL
MODEL:
MF20ED80WB
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MF20ED80WB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Midea MF20ED80WB

Summary of Contents for Midea MF20ED80WB

  • Page 1 Follow the instructions carefully. Keep the operation instructions handy for later use. If the product is sold or passed on then ensure that the new owner always receives this manual. CAUTION: HOT SURFACE ! CAUTION: RISK OF FIRE ! MODEL: MF20ED80WB...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATION Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Programmes............Option..............MAINTENANCE Cleaning and Care ..........Trouble Shooting ............ Technical Specifications ......... Maintenance ............

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Safety Instructions Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty. Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in...
  • Page 4 SAFETY INSTRUCTIONS •The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 5: Installation

    SAFETY INSTRUCTIONS •Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see “Maintenance - Cleaning of drain pump filter“) to avoid damages caused by frost.
  • Page 6 SAFETY INSTRUCTIONS •Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer‘s instructions and local safety regulations. Warning! •Don´t use multiple plugs or extension cords. •The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
  • Page 7 SAFETY INSTRUCTIONS OPERATION AND MAINTENANCE Warning! ！ •Never stop the washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat can dissipate. •The washer dryer is not to be used if industrial chemicals have been used for cleaning.
  • Page 8 SAFETY INSTRUCTIONS •Always unplug the appliance and close the water tap before cleaning and maintenance and after each use. •Never pour water over the appliance for cleaning purpose. Risk of electric shock! •Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Page 9 SAFETY INSTRUCTIONS Packaging/Old appliance This marking indicates that this product should not be disposed with other household wastes throughout the EU.To prevent possible harm to the environment or human health from uncontrolled waste disposal,recycle it responsibly to promote the sustainable reuse of material resources.To return your used device, please use the collection systems or contact the retailer where the product was purchased.

  • Page 10: Product Description

    INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service flap Drain hose Note! • The product picture is for illustration only, please refer to real product as reference. Accessories 4 x Cover caps 1 x Owner’s manual Acoustic sponge 1 x Supply hose...

  • Page 11: Installation

    INSTALLATION Installation Installation area Warning! ！ • Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable. • Make sure that the product does not stand onto the power cord. W> 20mm •...
  • Page 12 INSTALLATION Remove transport bolts Warning! ！ • You must remove the transport bolts from the backside before using the product. Loosen the 4 transport Remove the bolts Close the holes using the bolts with a spanner. including the rubber parts cover caps.
  • Page 13 INSTALLATION Drain Hose Warning! Warning! ！ ！ • Do not kink or protract the drain hose. • Position drain hose properly ,otherwise damage might result of water leakage. • It is not allowed to remove the buckle of drain pipe. There are two ways to place the end of drain hose: 1.Put it into the water trough.

  • Page 14: Operation

    OPERATION Quick Start Caution! • Before washing, please make sure the washer dryer is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use.
  • Page 15 OPERATION 1. Before Washing earth terminal Main wash Softener Prewash Close door Plug in Open tap Load Add detergent Note! • Detergent need to be added in compartment I if the pre-wash function is selected. 2. Washing Power on Select programme Select function or Press remain default Start/Pause to...

  • Page 16: Before Each Washing

    OPERATION Before Each Washing • The ambient temperature of the washer dryer should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.

  • Page 17: Detergent Dispenser

    OPERATION Detergent Dispenser Pre wash Main wash Softener Release button to pull out the dispenser Caution! • Detergent only need to be added in "compartment I “after selecting pre-wash function. Programme Programme Cotton Quick 15’ 20℃ ECO 40-60 Wash and Dry Wool Auto Dry Time Dry...
  • Page 18 OPERATION Detergent Recommendation Type of laundry and textile Heavy-duty detergent with White laundry made from bleaching agents and 20/30 Cotton,ECO 40-60,Mix,Bulky boil-proof cotton or linen optical brighteners 40/60 Coloured laundry made Colour detergent without Cotton,ECO40-60,Mix,Bulky, Cold/20/ from cotton or linen bleaching agent and optical 20℃...

  • Page 19: Control Panel

    OPERATION Control Panel On/Off Start/Pause Power on or off machine. Start or pause your program. Program Option Press buttons to change program Choose appropriate program according parameters or select additional functions. to the laundry type. Display The display shows settings, estimated remaining time, options and status messages. Display Wash Time Delay Time...

  • Page 20: Programmes

    OPERATION Programmes Programme Display Time Washing Load/Dry load(kg) Cotton 8.0/6.0 3:49 8.0/6.0 1:30 Wash and Dry 6.0/6.0 5:04 Auto Dry --/6.0 4:14 Time Dry --/0.5 0:40 Allergy Care 2:38 Steam Care 1:57 Quick 15’ 0:15 ℃ 1:01 ECO 40-60 3:38 Wool 1:07 Bulky...
  • Page 21 OPERATION Programmes • The above data is for reference only, and the data may change due to different actual use conditions. • The values given for programmes other than the ECO 40-60 programme and the Wash and Dry cycle are indicative only. •...
  • Page 22 OPERATION The highest temperature reached by the laundry in the wash cycle for at least 5 minutes. 2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved. 3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle.
  • Page 23 OPERATION Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton or Cotton linen. Mixed load consisting of textiles made of cotton and synthetics. Auto Dry This program is designed for drying clothes automatically to achieve the best dry performance.
  • Page 24 OPERATION Option Default spin speed 1400 Quick 15’ Cold 1h WD – 1000 ℃ ECO 40-60 1400 Wool Bulky 1000 Rinse & Spin 1000 Spin Only 1000 Steam Care Allergy Care Time Dry 1400 Auto Dry 1400 Wash and Dry 1400 Cotton 1200...
  • Page 25 OPERATION Spin When needed, the spinning speed can be adjusted pressing the Speed button in the following steps: 1400：0-400-600-800-1000-1200-1400. Remote Control Turn on the WiFi function and control remotely by pressing the button for 3 seconds, please refer to the MSmartLife instructions (page 28, 29, 30) for more information. Pre Wash Extra washing function before the main washing cycle starting to increase the washing performance.
  • Page 26 OPERATION Press the Dry button continuously to choose the dry level: Gentle Dry(Soft) Normal Dry(Normal)/ Extra Dry,and Time Dry. Gentle Dry(Soft): Clothes are dried to damp state for ironing. Normal Dry(Normal): Clothes are ready for storing in the cupboard. Extra Dry: Clothes are dried complete to be worn directly. Timed Dry:Drying your laundry and finish within given time.
  • Page 27 OPERATION Reload This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To Press [3s for Reload]3sec.
  • Page 28 Use Your Appliance with the MSmartLife App Before you start, make sure that: 1.Your smartphone is connected to home wifi network,and you know the network password. 2. Make sure you are near the home appliance. 3. The 2.4GHz band wireless signal is enabled on your wireless router. Follow the below steps to enter the remote control state 1.
  • Page 29 4. Connect to the network by following the guidance First, please make sure that you have already connected your smartphone to home wifi network, so that you can enter your home WiFi password here. Next, rotate the knob randomly to indicate one of the programs, and press [ ] continuously until “AP”...
  • Page 30 SSID name. A large number of devices on the WiFi router can affect network stability, there is no way that Midea can advise a specific number limitation as this depends on router quality and many other factors.

  • Page 31: Maintenance

    MAINTENANCE Cleaning and Care Warning! • Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary.
  • Page 32 MAINTENANCE Cleaning the Inlet Filter Note! • Diminishing water flow is a sign that the filter need to be cleaned. 1. Close the tap and remove the water supply hose from it. 2. Clean the filter with a brush. 3. Unscrew the water supply hose from the backside of the machine.
  • Page 33 MAINTENANCE Cleaning the Drain Pump Filter Warning! • Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. • Be careful of hot water. Wait for water cooling down. Risk of scalding! •...
  • Page 34 MAINTENANCE Emergency Door Release In case of power failure or other circumstances and door cannot be opened. If it is necessary to open the door under this circumstances, please pull down the pull cord inside emergency door and restore the pull cord after opening the door. Emergency door pull cord pen filter door 2.Using a straight screwdriver...

  • Page 35: Trouble Shooting

    MAINTENANCE Trouble Shooting Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible cause Solution Appliance does Door is not closed properly. Close the door properly and not start Clothes are stuck.

  • Page 36: Technical Specifications

    • This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle. Technical Specifications Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa MF20ED80WB Model Power Supply 220-240V~,50Hz Washing Capacity 8.0kg Drying Capacity 6.0kg...

  • Page 37: Maintenance

    MAINTENANCE MF20ED80WB 51.9 0.472 1350 1350 1350...
  • Page 38 MAINTENANCE 10:10 7:10 2.00 Dry level:d-3,Extra Dry.
  • Page 39 MAINTENANCE 1) The actual energy consumption will depend on how the appliance is used. 2) The actual water consumption will depend on how the appliance is used and on the hardness of the water. 3) Delivery of the spare parts within 15 working days after having received the order. Product Data Sheet concerning (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341.
  • Page 40 16138100A30891...
