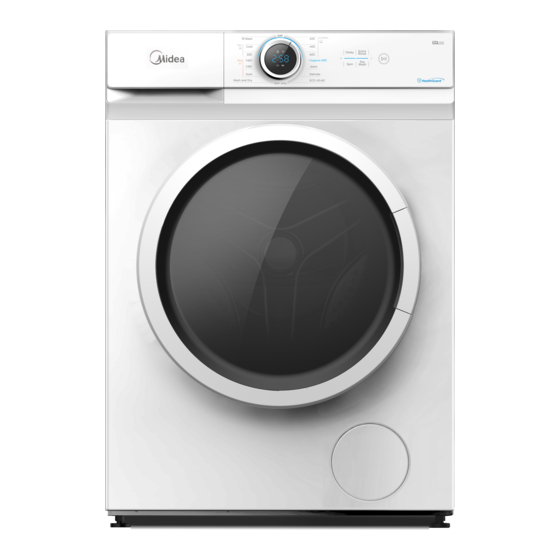

Washing Machine
Washer Dryer
Read This Manual
Use all instructions and explanations of the installation before use.
Follow the instructions carefully. Keep the operation instructions
handy for later use. If the application is sold or passed on then
ensure that the new owner always receives those operation
instructions.
Washer Dryer
OWNER'S MANUAL
MODEL:
MF100D85B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Midea MF100D85B
Summary of Contents for Midea MF100D85B
- Page 1 Washer Dryer Washer Dryer OWNER’S MANUAL MODEL: MF100D85B Read This Manual Use all instructions and explanations of the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the application is sold or passed on then ensure that the new owner always receives those operation instructions.
-
Page 2: Table Of Contents
CONTENTS Safety Instructions Safety Instructions ..........Installation Product Description ..........Installation ..............Operations Quick Start ..............Before Each Washing ..........Detergent Dispenser ..........Control Panel ............. Option................Other Functions ............Programmes............... Washing Programmes Table ......Maintenances Cleaning And Care ..........Trouble Shooting ............ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions • This appliance is not intended for use by persons(includingchildren) with reduced physical,sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •... - Page 4 SAFETY INSTRUCTIONS Safety Instructions For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: ！ Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in...
- Page 5 SAFETY INSTRUCTIONS • Before any maintenance the device, unplug the appliance from the mains. • Always unplug the machine and turn off the water supply after use. The max. inlet water pressure, in pascals. The min. inlet water pressure, in pascals. •...
- Page 6 SAFETY INSTRUCTIONS • Do not use any socket with rated current less than that of appliance.Never pull out power plug with wet hand. Risk to children! • Children of less than 3 years should be supervised to ensure that they do not play with appliance. •...
- Page 7 SAFETY INSTRUCTIONS • It isn't intended to be built-in using. • Washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases. • Remove all packages and transport bolts before using the appliance.
- Page 8 SAFETY INSTRUCTIONS 6.A precaution indicates that the appliance shall not be installed at a humid place. • Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the clothes are put in or distributed well. •...
-
Page 9: Product Description
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport Owner’s manual Supply hose hole... -
Page 10: Installation
INSTALLATION Installation Installation area ！ Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... - Page 11 INSTALLATION Levelling the washing machine ！ Warning! • The lock nuts on all four feet must be screwed tightly against the housing. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts. 2.Loosen the lock nut turn the feet until it closely contacts with the floor.
- Page 12 INSTALLATION Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise. water supply hose water Inlet valve Drain Hose ！ Warning! • Do not kink or protract the drain hose. •...
-
Page 13: Operations
OPERATIONS Quick Start Caution! • Before washing, please make sure it’s installed properly. • Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. 1. Before Washing Main wash Softener... -
Page 14: Before Each Washing
OPERATIONS Before Each Washing • The working condition of the washer should be(0-40)°C.If used under 0°C,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0°Cor less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 15: Detergent Dispenser
OPERATIONS Detergent Dispenser Pre wash detergent Main wash detergent Softener Pull out the dispenser Caution! • Detergent only need to be added in "case I “after selecting pre-washing for product with this function. Programme Programme Cotton 20℃ Wash and Dry Dry Auto Cotton 40℃... -
Page 16: Control Panel
OPERATIONS Control Panel Note! • The chart is for reference only, Please refer to real product as standard. Start Pause Product is switched Power. Press the button to start or pause the washing cycle. Programmes Option Available according to the laundry type. This allows you to select an additional function and will light when selected. - Page 17 OPERATIONS Option Pre Wash The Prewash function can get an extra wash before main wash,it is suitable for washing the dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it. Extra Rinse The laundry will undergo extra rinse once after you select it.
-
Page 18: Other Functions
OPERATIONS Other functions Child Lock This function is meant to keep children from misusing the controls. Extra Press [Extra Rinse] and [Pre Wash] simultaneously for 3 sec Rinse Wash until the buzzer beep. The child lock indicator switches on. Caution! When the Child Lock is activated, the display will alternately show “CL”... - Page 19 OPERATIONS Mute the buzzer Spin Delay Start Press the [Delay]&[Spin] button for 3sec. the buzzer is mute. To act the buzzer function, press the two buttons again for 3 seconds. The setting will be kept until the next reset. Caution! •...
-
Page 20: Programmes
OPERATIONS Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton or Cotton linen. Washing the baby’s clothes, it can make the baby's wear cleaner Hygiene 90℃ and make the rinse performance better to protect the baby skin. Select it to dry clothes, the temperature is different .The drying time according to the load . -
Page 21: Washing Programmes Table
OPERATIONS Washing Programmes Table Programme Load(kg) Default Time 8.5kg Wash/Dry Cotton 20℃ 2:20 2:40 Cotton 40℃ 3:00 Cotton 60℃ 2:18 Hygiene 90℃ 1:48 Jeans 0:50 Delicate 3:53 ECO 40-60 0:12 Spin only 5:04 Wash and Dry 8.5/ 5.0 3:00 Dry Auto --/5.0 1:40 Dry 90’... -
Page 22: Maintenances
MAINTENANCES Cleaning And Care ！ Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. - Page 23 MAINTENANCES Cleaning The Inlet Filter Note! • Inlet filter must be cleaned if there is less water. Washing the filter in the tap 1.Close the tap. 2.Remove the water supply hose from the tap. 3.clean the filter. 4.Reconnect the water supply hose Washing the filter in washing machine: Screw off the inlet pipe from the backside of the machine.
- Page 24 MAINTENANCES Cleaning The Drain Pump Filter ！ Warning! • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing.
-
Page 25: Trouble Shooting
MAINTENANCES Trouble Shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Description Reason Solution Washing machine Restart after the door is closed Door is not closed properly cannot start up Check if the clothes is stuck... -
Page 26: Technical Specifications
MAINTENANCES Technical Specifications Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa MF100D85B Model Power Supply 220-240V~,50Hz Washing Capacity 8.5kg Drying Capacity 5.0kg Dimension(W*D*H) 595*565*850 Weight 74kg Rated Power 2000W Drying Power 1350W... - Page 27 QUESTIONS OR COMMENTS Country Contact Center Web Site Thailand +6621077799 http://www.midea.com/th Myanmar +09260367229 https://www.gbs.com.mm/en/about/vsk/ Cambodia +85523212435 http://bluemidea.com http;//vn.midea.com Vietnam +1800588863 Philippines +63288635522 http://www.mideaph.com http://id.midea.com Indonesian +628001888523 Malaysia https://www.midea.com/my/ +60392211033 Singapore +62222536 https://www.midea.com/sg/ This product is RoHS compliant.
- Page 28 V1.0 16238000A ***** 注:1.说明书版本号从V1.0开始计，每变更一次自动+1 2.虚线框内印刷物料编码,由供应商按照订单需求自行添加,字体:Arial, 大小:8pt,相对位置参照图号右对齐 3.此注意内容及虚线框无需印刷...
