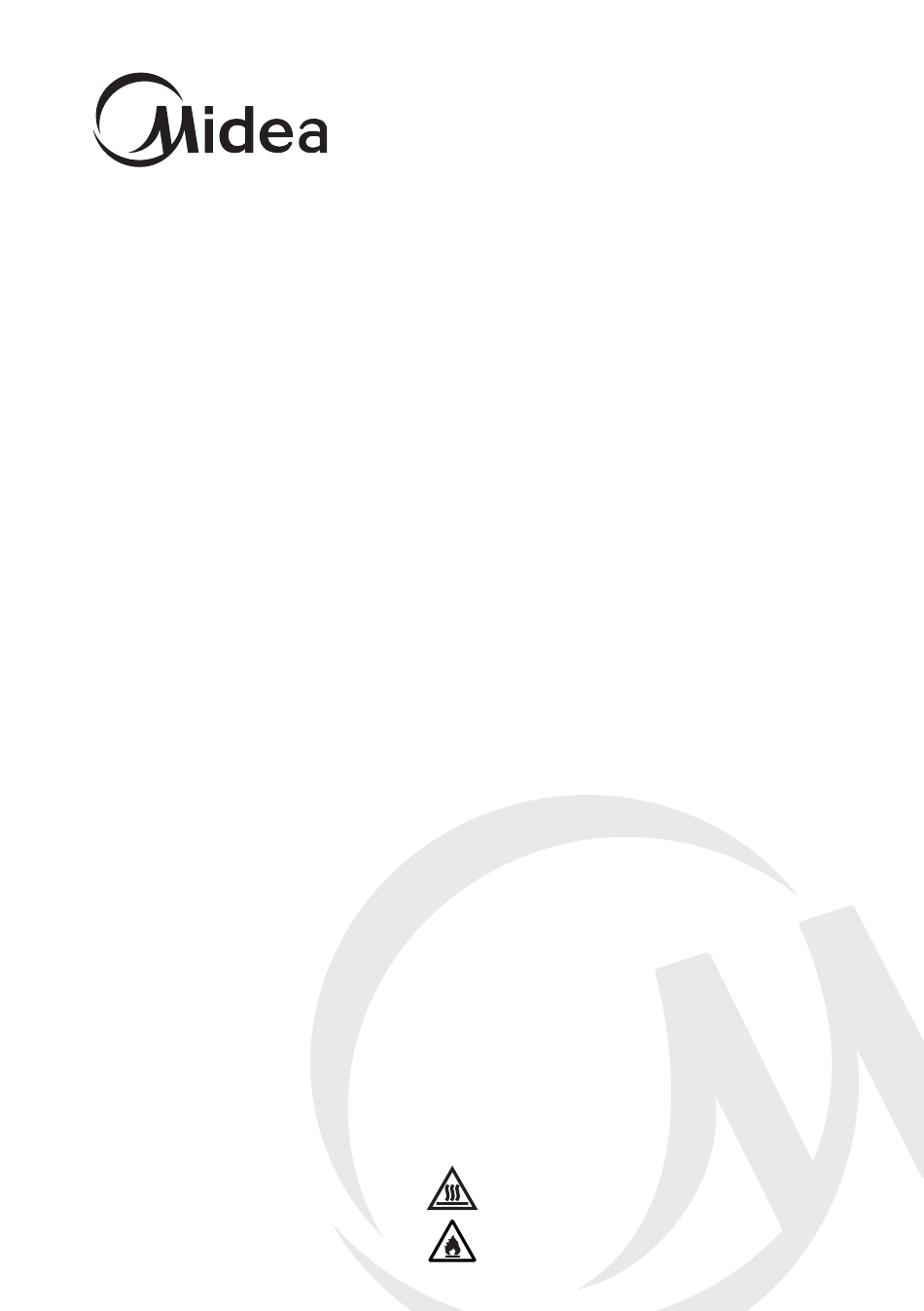

Washer Dryer
OWNER'S MANUAL
MFC80-DR1400
Read This Manual
Use all instructions and explanations of
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
application is sold or passed on then ensure
that the new owner always receives those
operation instructions.
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Midea MFC80-DR1400
Summary of Contents for Midea MFC80-DR1400
- Page 1 Washer Dryer OWNER’S MANUAL MFC80-DR1400 Read This Manual Use all instructions and explanations of the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the application is sold or passed on then ensure that the new owner always receives those operation instructions.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATIONS Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Option..............Other Functions ............Programmes............Washing Programmes Table ........MAINTENANCES Cleaning And Care ..........Trouble Shooting ............ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: ！ Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in... - Page 4 SAFETY INSTRUCTIONS • Always unplug the machine and turn off the water supply after use. The max. inlet water pressure, in pascals. The min. inlet water pressure, in pascals. • To ensure your safety, power plug must be inserted into an earthed three-pole socket.
- Page 5 SAFETY INSTRUCTIONS • Glass door may be very hot during the operation. Keep kids and pets far away from the machine during the operation very wet rooms as well as in the rooms with explosive or caustic gas. • Remove all packages and transport bolts before using the appliance.
-
Page 6: Installation
SAFETY INSTRUCTIONS hot water and cold water supply. • Plug must be accessible after installation. • The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer dryer. •... - Page 7 SAFETY INSTRUCTIONS • Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside. • Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc.Shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for drum.
- Page 8 SAFETY INSTRUCTIONS • Items such as foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine. • Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
-
Page 9: Product Description
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport Supply hose Supply hose hot Drain hose... -
Page 10: Installation
INSTALLATION Installation Installation area ！ Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... - Page 11 INSTALLATION Levelling the washer dryer ！ Warning! • The lock nuts on all four feet must be screwed tightly against the housing. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts. 2.Loosen the lock nut turn the feet until it closely contacts with the floor.
- Page 12 INSTALLATION Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise. water supply hose water Inlet valve Drain Hose ！ ！ Warning! Warning! • Do not kink or protract the drain hose. •...
-
Page 13: Operations
OPERATIONS Quick Start Caution! • Before washing, please make sure it’s installed properly. • Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. 1. Before Washing Main wash Softener... -
Page 14: Before Each Washing
OPERATIONS Before Each Washing • The working condition of the washer should be(0-40) °C .If used under 0 °C ,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0 °C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 15: Detergent Dispenser
OPERATIONS Detergent Dispenser Pre wash detergent Main wash detergent Softener Dam-board Dam-board Liquid detergent Powder detergent Pull out the dispenser Caution! • Detergent only need to be added in "case I “after selecting pre-washing for machines with this function. Programme Programme Dry Only Cotton... -
Page 16: Control Panel
OPERATIONS Control Panel 1 1 1 Note! • The chart is for reference only, Please refer to real product as standard. • The programme with can be choose speed wash function. On/Off Start/Pause Product is switched on or off. Press the button to start or pause the washing cycle. -
Page 17: Option
OPERATIONS Option Pre Wash The Prewash function can get an extra wash before main wash,it is suitable for washing the dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it. Extra Rinse The laundry will undergo extra rinse once after you select it. - Page 18 OPERATIONS Programme Option Delay Speed Wash Extra Rinse Anti-crease Perwash Extra Wash Soak Cotton ECO Sport Wear Quick Delicate Wool Colors Jeans Spin Only Rinse&Spin Dry Only Baby Care Synthetic Cotton 1 Hour W/D ○ Means optional...
-
Page 19: Other Functions
OPERATIONS Other functions Reload This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To press [Start/Pause] for 3 sec. - Page 20 OPERATIONS Temp. ℃, Press the button to regulate the temperature(Cold,20 30℃, 40℃,60℃,90℃) Speed Speed Press the button to change the spin speed. Programme Programme Default Speed(rpm) Default Speed(rpm) 1400 1600 1400 1600 Cotton ECO Rinse&Spin 1200 1400 1000 1600 Sport Wear Dry Only 1200 1600...
- Page 21 OPERATIONS Mute the buzzer Spin Temp. Temp. Press the [Temp.]&[Spin] or [Dry]&[Temp.] On/Off Start/Pause button for 3sec.the buzzer is mute. To act the buzzer function, press the two buttons again for 3 seconds. The setting will be kept until the next reset. Caution! •...
-
Page 22: Programmes
OPERATIONS Programmes Programmes are available according to thelaundry type. Programmes Cotton Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Cotton ECO To increase the washing effects, washing time is increased. Synthetic Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles. -
Page 23: Washing Programmes Table
OPERATIONS Washing Programmes Table Washing/Drying Load Programme Temp. °C Default Time (H) (kg) 10.0 12.0 10.0 12.0 Default 1400 1600 1400 Cotton ECO 10.0 12.0 4:52 3:59 4:29 Sport Wear 0:45 0:45 0:45 Quick Cold 0:15 0:15 0:15 Delicate 0:50 0:50 0:50 Wool... -
Page 24: Maintenances
MAINTENANCES Cleaning And Care ！ Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. - Page 25 MAINTENANCES Cleaning The Inlet Filter Note! • Inlet filter must be cleaned if there is less water. Washing the filter in the tap 1.Close the tap. 2.Remove the water supply hose from the tap. 3.clean the filter. 4.Reconnect the water supply hose Washing the filter in washer dryer: 1.Screw off the inlet pipe from the backside of the machine.
- Page 26 MAINTENANCES Cleaning Drain Pump Filter ！ Warning! • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing.
-
Page 27: Trouble Shooting
MAINTENANCES Trouble Shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Description Reason Solution Washer dryer Restart after the door is closed Door is not closed properly cannot start up Check if the clothes is stuck... -
Page 28: Technical Specifications
MAINTENANCES Technical Specifications MAX.Current Standard Water Pressure 0.05MPa~1MPa Model MFC80-DR1400 Power Supply 220-240V~,50Hz Washing Capacity 8.0kg Drying Capacity 6.0kg Dimension(W*D*H) 595*470*850 Weight 64kg Rated Power 2050/1900W Drying Power 1350/1300W 10 24 10 27...
Need help?
Do you have a question about the MFC80-DR1400 and is the answer not in the manual?
Questions and answers

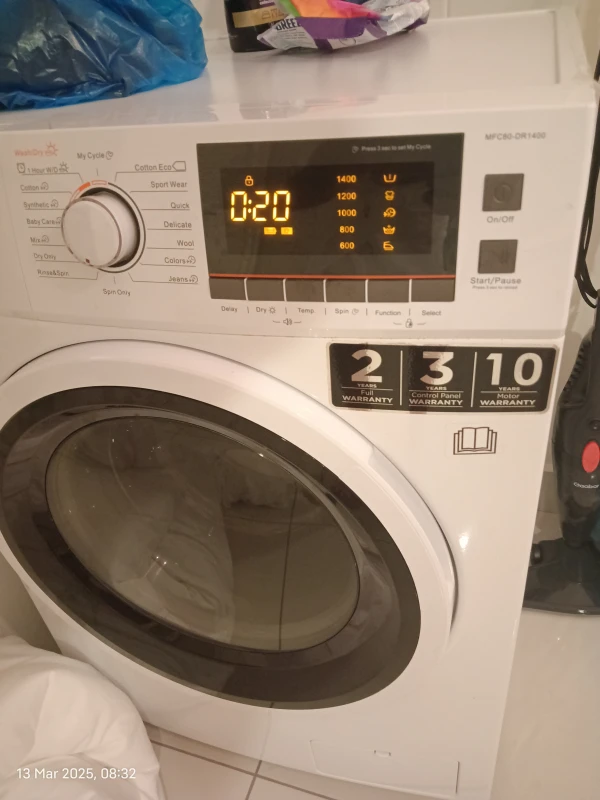

How to control water temperature?
To control the water temperature on the Midea MFC80-DR1400, select a washing program from the control panel. Each program has a preset temperature, for example:
- Cotton ECO: 60°C
- Sport Wear: 40°C
- Delicate: 30°C
- Wool: 40°C
- Quick and Colors: Cold
Choose the desired program based on your needs to set the corresponding water temperature.
This answer is automatically generated

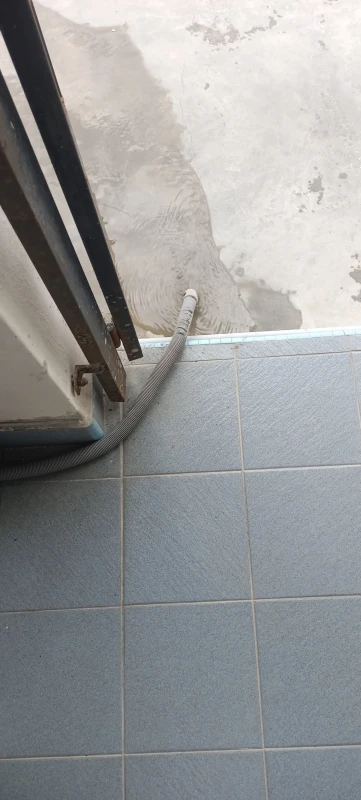

the water still out
Water may still be coming out of the Midea MFC80-DR1400 due to a blocked drain hose or water overflow. Check if the drain hose is blocked and restart the washer. If the problem continues or other alarm codes appear, contact the service line.
This answer is automatically generated
I can't open door
If the door of the Midea MFC80-DR1400 washer dryer does not close properly or cannot be opened, follow these steps:
1. Ensure the Door is Fully Closed – Check if any clothes are stuck in the door that may prevent it from closing properly.
2. Restart the Appliance – If the washer dryer does not start, try closing the door firmly and restarting the machine.
3. Check for Safety Lock Activation – If the door cannot be opened, the washer's safety protection may be active.
4. Disconnect Power – Turn off the appliance and unplug it from the power source.
5. Restart the Machine – After a few minutes, plug it back in and restart to see if the issue is resolved.
If the problem persists, contact the service center.
This answer is automatically generated
