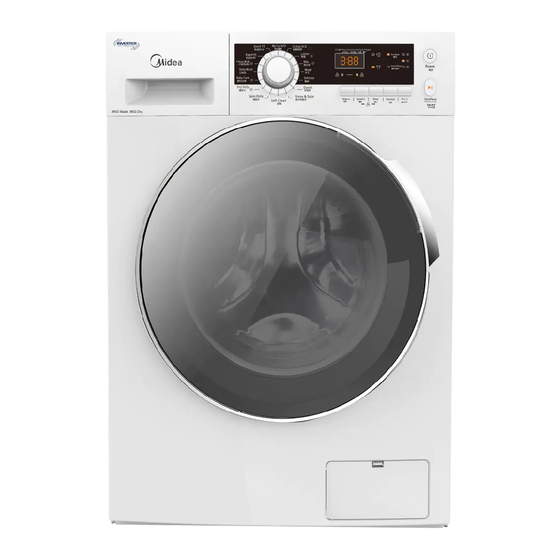

Washer Dryer
OWNER'S MANUAL
MFG80D14
Read This Manual
Use all instructions and explanations of
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
application is sold or passed on then ensure
that the new owner always receives those
operation instructions.
This manual is for reference only, if there is any
discrepancy, the factory specifications shall prevail.
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Midea MFG80D14
Summary of Contents for Midea MFG80D14
- Page 1 Washer Dryer OWNER’S MANUAL MFG80D14 Read This Manual Use all instructions and explanations of the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the application is sold or passed on then ensure that the new owner always receives those operation instructions.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Installation ............Product Description ..........OPERATIONS Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Option..............Other Functions ............Programmes............Washing Programmes Table ........MAINTENANCES Cleaning And Care ..........Trouble Shooting ............ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: ！ Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in... - Page 4 SAFETY INSTRUCTIONS • Always unplug the machine and turn off the water supply after use. The max. inlet water pressure, in pascals. The min. inlet water pressure, in pascals. • To ensure your safety, power plug must be inserted into an earthed three-pole socket.
- Page 5 SAFETY INSTRUCTIONS • Glass door may be very hot during the operation. Keep kids and pets far away from the machine during the operation very wet rooms as well as in the rooms with explosive or caustic gas. • Remove all packages and transport bolts before using the appliance.
- Page 6 SAFETY INSTRUCTIONS hot water and cold water supply. • Plug must be accessible after installation. • The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer dryer. •...
- Page 7 SAFETY INSTRUCTIONS Operating the appliance! • Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside. • Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc.Shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for drum.
- Page 8 SAFETY INSTRUCTIONS • Items such as foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine. • Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
-
Page 9: Installation
INSTALLATION Installation Installation area ！ Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W> 20mm Before installing the machine, the location characterized as follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... -
Page 10: Product Description
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport Supply hose Owner’s manual hole plug... - Page 11 INSTALLATION Levelling the washer dryer ！ Warning! • The lock nuts on all four feet must be screwed tightly against the housing. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts. 2.
- Page 12 INSTALLATION Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise. water supply hose water Inlet valve Drain Hose ！ ！ Warning! Warning! • Do not kink or protract the drain hose. •...
-
Page 13: Operations
OPERATIONS Quick Start Caution! • Before washing, please make sure it’s installed properly. • Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. 1. Before Washing Main wash Softener... -
Page 14: Before Each Washing
OPERATIONS Before Each Washing • The working condition of the washer should be(0-40) °C .If used under 0 °C ,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0 °C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 15: Detergent Dispenser
OPERATIONS Detergent Dispenser Pre wash detergent Main wash detergent Softener Dam-board Dam-board Liquid detergent Powder detergent Pull out the dispenser Caution! • Detergent only need to be added in "case I “after selecting pre-washing for machines with this function. Programme Programme Dry Only... -
Page 16: Control Panel
OPERATIONS Control Panel MFG80D14 我的最愛 快速洗 棉質節能 按3秒進入”我的最愛”/ 設置”靜音” 預洗 棉質 快速洗 混合洗 一小時洗/乾 額外過水 電源 日常洗 羊毛 嬰兒衣物 纖柔 羽絨被 僅乾衣 過水&脫水 僅脫水 潔桶 轉速 溫度 預約 功能 乾衣水平 啟動/暫停 按3秒重置 1 1 1 Note! • The chart is for reference only, Please refer to real product as standard. - Page 17 OPERATIONS Option Delay Set the Delay function: 1. Select a programme 2.Press the Delay button to choose the time(the delaying time is 0-24 H.) 3.Press [ Start/Pause ] to commence the delay operation Delay On/Off Setting time Start Choose the Programme (Power) Cancel the Delay function: Press the [Delay] button until the display be 0H.It should be pressed before...
- Page 18 OPERATIONS Dry Level Press the Dry button continuously to choose the dry level: Extra Dry/Normal Dry/ Gentle Dry. Extra Dry:Need to wear clothes immediately ,we can choose this function Normal Dry:The normal dry procedure Gentle Dry:Only to dry slightly and then is just ok . Note! •...
- Page 19 OPERATIONS Pre Wash Pre Wash The Prewash function can get an extra wash before main wash,it is suitable for washing the dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it. Extra Rinse Extra Rinse The laundry will undergo extra rinse once after you select it.
-
Page 20: Other Functions
OPERATIONS Other functions Mute the buzzer Temp. On/Off (Power) Press the [Temp.]button for 3sec.the buzzer is mute. To act the buzzer function, press the buttons again for 3 seconds. The setting will be kept until the next reset. Caution! • After Muting the buzzer function, the sounds will not be activated any more. My Cycle Memory the frequently used programmes Press [... -
Page 21: Programmes
OPERATIONS Programmes Programmes are available according to thelaundry type. Programmes Cotton Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Cotton ECO To increase the washing effects, washing time is increased. Washing the baby’s clothes, it can make the baby's wear cleaner. Baby Care and make the rinse performance better to protect the baby skin. - Page 22 OPERATIONS Programmes Programmes are available according to thelaundry type. Programmes Self Clean Specially set in this machine to clean the drum and tube. It applys 90 °C high temperature sterilization to make the clothes washing more green. When this programme is performed, the clothes or other washing cannot be added.
-
Page 23: Washing Programmes Table
OPERATIONS Washing Programmes Table Washing/Drying Load Programme °C Temp. Default Time(H) (kg) Default 1400 Cotton ECO 1:07 Quick(15') Cold 0:15 Delicate 1:00 Wool 1:07 Spin Only 0:12 Rinse&Spin 0:31 Baby Care 8.0/4.0 1:45 Dry Only /6.0 – 4:28 8.0/4.0 2:20 Cotton 2:40 8.0/6.0... -
Page 24: Maintenances
MAINTENANCES Cleaning The Inlet Filter Note! • Inlet filter must be cleaned if there is less water. Washing the filter in the tap 1. Close the tap. 2. Remove the water supply hose from the tap. 3. clean the filter. 4. - Page 25 MAINTENANCES Cleaning Drain Pump Filter ！ Warning! • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing.
-
Page 26: Trouble Shooting
MAINTENANCES Trouble Shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Description Reason Solution Washer dryer Restart after the door is closed Door is not closed properly cannot start up Check if the clothes is stuck... -
Page 27: Technical Specifications
MAINTENANCES Technical Specifications MAX.Current Standard Water Pressure 0.05MPa~1MPa Model MFG80D14 Power Supply 220-240V~,50Hz Washing Capacity 8.0kg Drying Capacity Dimension(W*D*H) 595*475*850mm Weight 65kg Rated Power 1900W Drying Power 1300W...
