Summary of Contents for Midea MF210D95WB

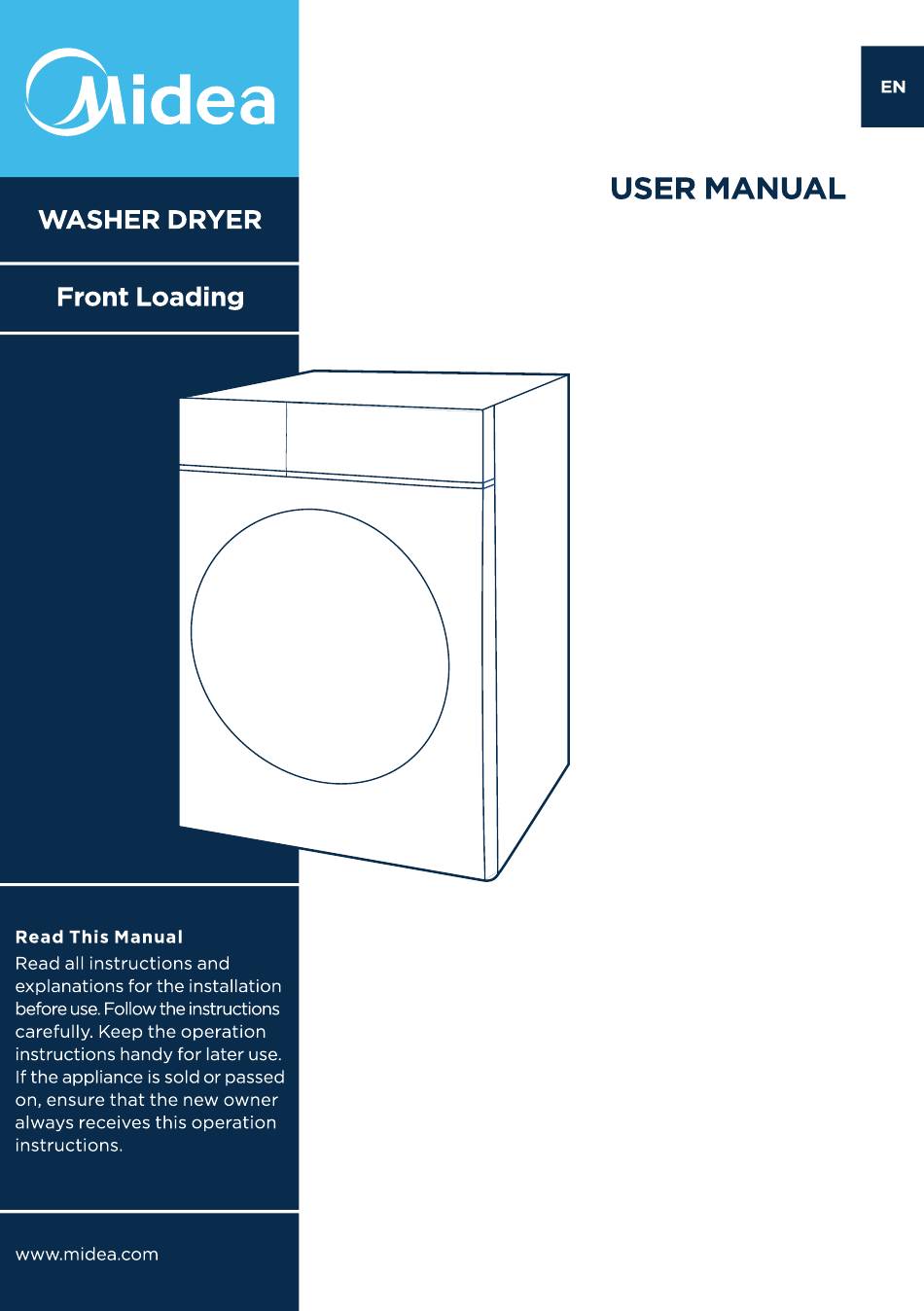

- Page 1 MODEL: MF210D95WB MF210D105WB...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS SPECIFICATIONS PRODUCT OVERVIEW QUICK START GUIDE PRODUCT INSTALLATION OPERATION INSTRUCTIONS APP SETUP AND OPERATION CLEANING AND MAINTENANCE TROUBLE SHOOTING DISPOSAL AND RECYCLING CAUTION: HOT SURFACE ! CAUTION: RISK OF FIRE ! Read all instructions and explanations before use.Follow the instructions carefully. Keep the operation instructions handy for later use. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Intended Use The product is intended only for home use and for textiles in household amounts suitable for washing. This appliance is for indoor use only and not intended for built in use. Only use according to these instructions. The appliance is not intended for commercial use. -
Page 4: Electric Shock Hazard
WARNING: Electric Shock Hazard • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons. -
Page 5: Electrical Connection
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. • Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa. Electrical Connection • Make sure the supply cable is not trapped by the machine, or it can get damaged. •... - Page 6 -Accumulated water shall be drained out of the machine. • This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door can not be used as a handle. Model Washing/Drying Capacity MF210D95WB 9.5/7.0kg MF210D105WB 10.5/7.0kg...
-
Page 7: Specifications
SPECIFICATIONS MF210D95WB MF210D105WB Model 220-240V~, 50Hz Power Supply MAX.Current Standard Water Pressure 0.05MPa~1MPa 9.5kg 10.5kg Washing Capacity Drying Capacity 7.0kg 7.0kg Dimension 590mm 845mm 535mm Weight 66kg Rated Power 1950W Drying Power 1300W Reference Dimension 550mm 530mm 1035mm 120mm... -
Page 8: Product Overview
PRODUCT OVERVIEW Door Drain hose Power supply cord Detergent dispenser Service flap Control panel NOTE The product picture is for illustration only, please refer to real product as reference. Accessories 4 x Cover 1 x Owner’s 1 x Supply hose Acoustic panel (optional) caps... -
Page 9: Quick Start Guide
QUICK START GUIDE CAUTION • Before washing, please make sure the machine is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use. -
Page 10: Before Washing
1. Before Washing 1. Plug in 2. Open tap 3. Load 4. Close door 5. Add detergent PRE WASH MAIN WASH DETERGENT SOFTENER NOTE Detergent need to be added in compartment PRE WASH if the Pre Wash • function is selected. When closing the door, please make sure that your clothes are not caught •... - Page 11 2. Washing 1.Power on 2.Select programme 3.Select function or remain 4.Press Start/Pause to default settings start the program NOTE 1 : If default is selected, step 3 can be skipped. 2: The function button line chart is for reference only, please refer to real product as standard.
-
Page 12: Product Installation
PRODUCT INSTALLATION Tools Needed If Installation By Yourself (not include) Installation Area WARNING • Stability is important to prevent the product from wandering! • Make sure the machine is standing leveled and stable. • Make sure that the product does not stand onto the power cord. •... -
Page 13: Unpacking The Machine
Unpacking the Machine WARNING • Packaging material (e.g. Films, Styrofoam) can be dangerous for children. • There is a risk of suffocation ! Keep all packaging well away from children. 1. Remove the cardboard box and styrofoam packing. 2. Lift the machine and remove the base packaging. Make sure the small triangle foam (a) is removed with the bottom packaging together. -
Page 14: Levelling The Machine
Levelling the Machine WARNING The lock nuts on all four feet must be screwed tightly against the housing. 1. Loosen the lock nut. 2. Turn the foot until it reaches the floor. 3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level using a spirit level. - Page 15 There are two ways to place the end of drain hose: 1.Put it into the water trough. 2.Connect it to the branch drain pipe of the trough. Water trough Acoustic Panel NOTE • Please make sure to assemble the acoustic panel, which can effectively reduce the noise caused by the machine while working, in order to provide you with a more peaceful and quiet living environment.
-
Page 16: Operation Instructions
OPERATION INSTRUCTIONS Before Each Washing • The ambient temperature of the machine should be 5 °C -40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use. -
Page 17: Detergent Dispenser
Detergent Dispenser PRE WASH Release button to MAIN WASH pull out the dispenser DETERGENT SOFTENER CAUTION • Detergent only need to be added in “case PRE WASH” after selecting Pre Wash for machines with this function. • Do not put laundry beads into the detergent dispenser. Programme Programme COTTON... -
Page 18: Control Panel
Control Panel Display The display shows settings, estimated remaining time, options and status messages. Option Press buttons to change program parameters or select additional functions. On/Off Power on or off machine. Start/Pause Start or pause your program. Program Choose appropriate program according to the laundry type. NOTE •... - Page 19 Display Display Wash Time Delay End Speed Error Temp. Remote Wireless Network Delay End Door Lock Child Lock Pre Wash Rinse+ Turbo Steam...
- Page 20 Programmes Programme Wash/Dry Load (kg) Temp. (°C) Default Time (h:min) 9.5/7.0 10.5/7.0 COTTON 1:28 .5/7.0 10.5/7.0 1:30 .5/7.0 10.5/7.0 WASH & DRY 7.0/7.0 7.0/7.0 DRY ONLY --/7.0 --/7.0 HealthGuard 2:39 5.0/3.5 5.0/3.5 DRUM CLEAN 1:18 DOWNLOAD 0:47 5.0/-- 5.0/-- SPIN ONLY 0:12 .5/-- 10.5/--...
- Page 21 Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton or linen. COTTON Hard-wearing textiles, heat-resistant textiles made of cotton or linen. COTTON ECO Energy-saving programme. OUTDOOR For outdoor clothes, skiwear, and sportswear that are made of functional materials such as spandex, stretch, and micro-fibre.
- Page 22 Option Default Default spin Additional Cycle speed (rpm) functions Temp.(℃) 1400 Soil Soak COTTON Level Soil Soak 1400 Level Soil WASH & DRY 1400 Level DRY ONLY Soil HealthGuard Level DRUM CLEAN Soil DOWNLOAD Soak Level SPIN ONLY 1000 Soil DUVET Soak Level...
- Page 23 Spin Spin When needed, the spinning speed can be adjusted pressing the Speed button in the following steps: 1400：0-400-600-800-1000-1200-1400. Remote This is the switch of remote control, if you want to use your smartphone to control the appliance remotely, you need to hold [Remote] button.
- Page 24 Rinse+ The laundry will undergo an extra rinse after selecting this function. Turbo The function can decrease the washing time. Soil Level Soil Level The washing time will increase or decrease after you select it. NOTE The function can be chosen from APP. Steam Steam is the function added before main wash, which will generate warm steam to sterilization and greater washing performance.
- Page 25 Reload This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To press [3s Reload] 3sec.
-
Page 26: App Setup And Operation
APP SETUP AND OPERATION Use Your Appliance With the SmartHome App Before you start, make sure that: 1. Your smartphone is connected to home wireless network,and you know the network password. 2. Make sure you are near the home appliance. 3. - Page 27 Start the Remote Control Rotate the knob randomly to indicate one of the programs, and press [ continuously until the remote control icon light up in the knob display, which means it has entered the remote control state and you can start to control remotely. Wireless Network Status Light Slowly flashing Waiting for connection...
-
Page 28: Cleaning And Maintenance
CLEANING AND MAINTENANCE Cleaning and Care WARNING • Always unplug the appliance and close the water tap before cleaning and maintenance. • When cleaning the product, do not stretch your hands, feet or arms into the bottom of the machine case to prevent scratches. Cleaning the Cabinet Proper maintenance on the machine can extend its working life. - Page 29 Cleaning the Inlet Filter NOTE • Diminishing water flow is a sign that the filter needs to be cleaned. 1. Close the tap and remove 2. Clean the filter with a brush. the water supply hose from it. 3. Unscrew the water supply 4.
- Page 30 Cleaning the Detergent Dispenser 1. Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush. 2. Lift the softener cover off the dispenser drawer and wash both items with water. 3.
- Page 31 Cleaning the Drain Pump Filter WARNING • Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. • Be careful of hot water. Wait for water cooling down. Risk of scalding! •...
-
Page 32: Trouble Shooting
TROUBLE SHOOTING Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible Cause Solution Appliance does Door is not closed Close the door properly not start and restart. -
Page 33: Disposal And Recycling
DISPOSAL AND RECYCLING Important Instructions for Environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. -
Page 34: Customer Service
Customer Service In case of questions, please contact our local customer service center. WARNING Risk of electric shock • Never try to repair an appliance which is defective or presumed to defective. You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work. - Page 35 V1.0 16238000A *****...
