Operation & Maintenance Manual

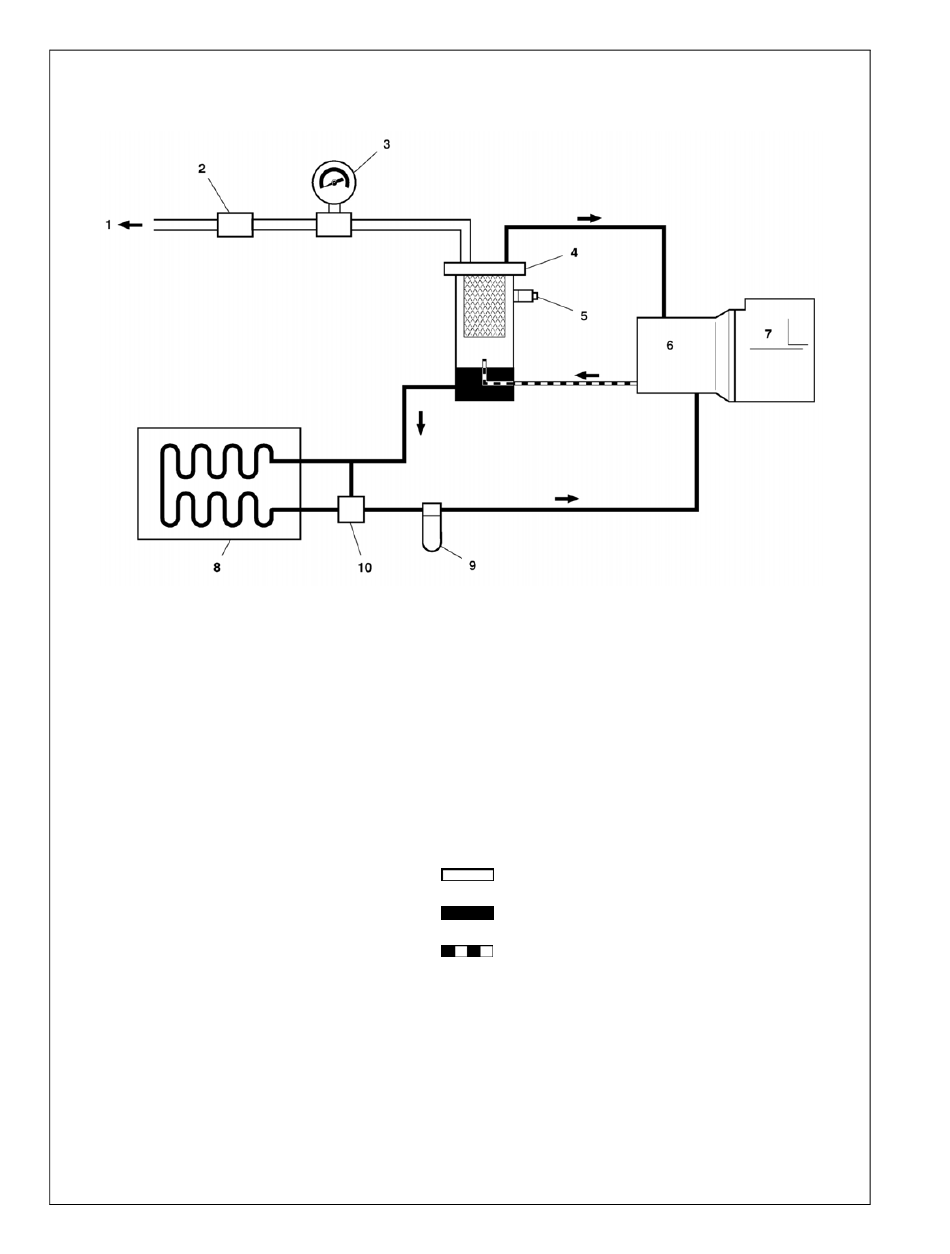

Piping and Instrumentation System
KEY
1.
Air discharge
2.
Sonic orifice (restricts flow)
3.
Pressure gauge
4.
Separator tank
5.
Safety valve
100
Piping and Instrumentation System
6.
Compressor
7.
Engine
8.
Oil cooler
9.
Oil filter
10.
Thermostatic valve (Where fitted)
Air
Oil
Air/Oil
22221949
