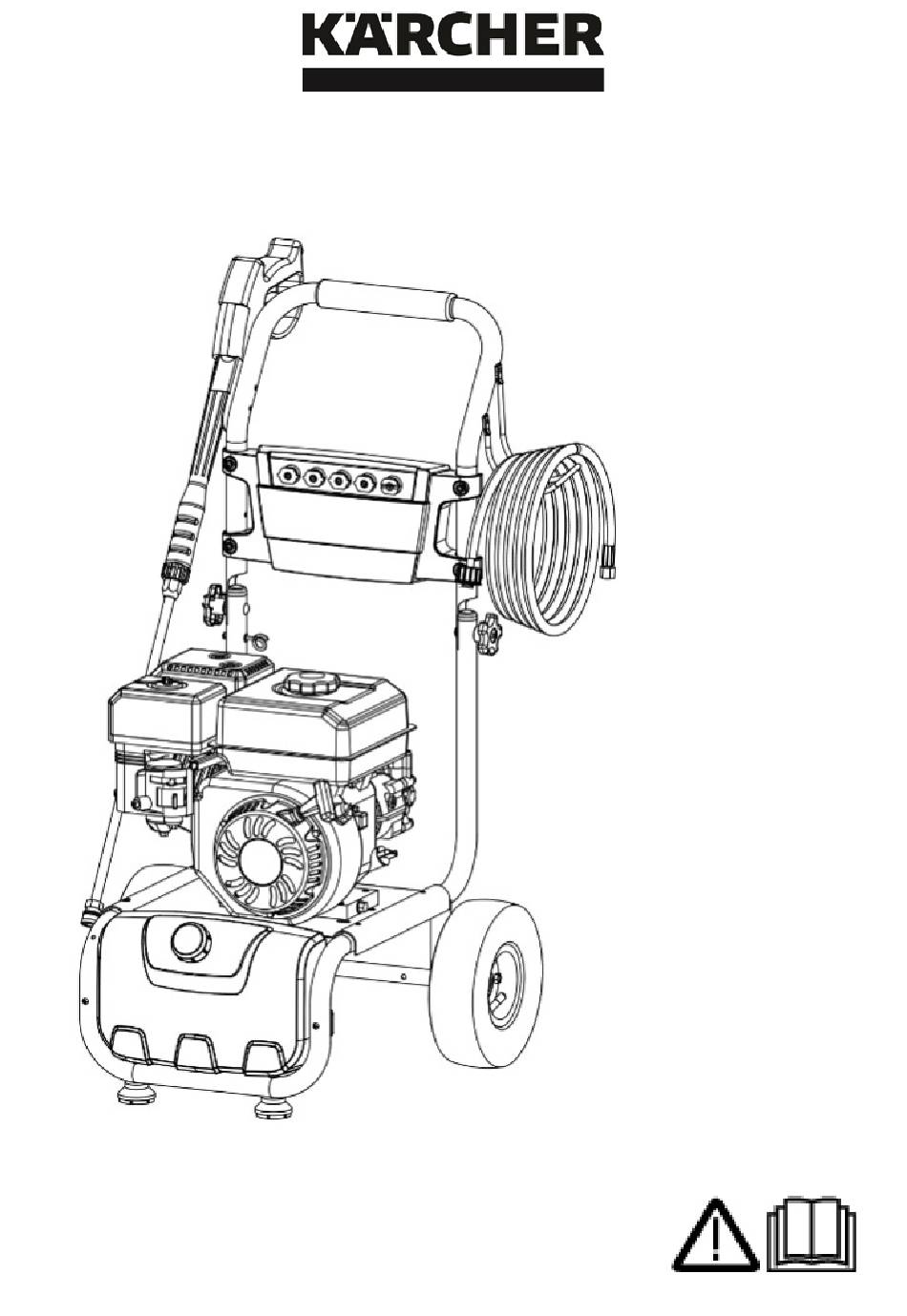

- Page 1 G 2800 G 2800 1.107-316.0 9.807-913.0-A 02/17...
- Page 2 Machine Parts List 1. Spray Gun 2. Nozzles 3. Muffler 4. Air Filter 5. Throttle Lever 6. Choke Lever 7. Fuel Valve 8. Detergent Tank Cap 9. Detergent Tank 10. Fuel Tank Cap 11. Fuel Tank 12. Hand Cord 13. Engine Switch 14.
- Page 3 12 13...
-
Page 4: Table Of Contents
G 2800 Please read and Engine Oil Type SAE 10W-30 comply with these original instruc- Model Number 1.107-316.0 tions prior to the Serial Number initial operation of your appliance and store them for later use or subsequent owners. Hazard Levels Contents Safety Instructions . -
Page 5: Safety Instructions
Safety Instructions When using this product, basic precautions should always be followed, including the following: ● Read the operating instructions of the engine manufacturer before start-up and follow the safety instructions carefully. Risk of injection or injury – Do not ●... - Page 6 ● Do not touch hot surfaces or allow accessories to contact hot surfaces. ● Do not leave machine running unat- tended. ● Avoid tipping machine on its side. Water Supply (Cold Water Only) Risk of asphyxiation – Use this product only in a well ventilated area.
-
Page 7: Assembly Instructions
water source. Use additional water filter. ● Do not operate pressure washer with- out the water turned on. Assembly Instructions Part List B - Handle C - Gun Hook & Hose Hook A - Main Frame D - Knobs & Bolts E - Pressure Hose English 7... - Page 8 Assembling 1. Install the wheels to the main frame by pressing the spring loaded pin on wheel axle, then insert wheel axle into frame. Ensure that the spring pin is fixed in position. Repeat for the other wheel. F - Spray Gun & Wand G- Wheels Parts not shown: 1 - Manual...
-
Page 9: Preparation
3. Attach the gun & hose hooks to the 1. Remove the filler cap/dipstick and handle. wipe it clean. 2. Insert and remove the dipstick without screwing it into the filler neck. Check the oil level shown on the dipstick. 3. - Page 10 Fuel Level Air Filter Make sure there is enough fuel in The air filter should be checked the fuel tank before operating. This after prolonged storage, the is a 4-cycle engine and does not following steps should be done require a gas/oil mixture. There is a when checking the air filter.
-
Page 11: Operating Instructions
4. Inspect both air filter elements, and replace them if they are damaged. Operating Instructions Always replace the paper air filter element at the scheduled interval. Starting Procedure: 5. Clean the air filter elements if they 1. Connect garden hose. are to be reused. - Page 12 3. Open water source. ► STEP 3: Turn the fuel valve to "ON" position. ► STEP 4: Put the throttle lever to the "FAST" position. ► STEP 5: Pull trigger on spray gun to release pressure. ► STEP 6: Locate recoil cord and pull slowly until resistance is felt.
-
Page 13: Using The Accessories
Using the Accessories High pressure in nozzle area. Risk The color-coded quick connect of injury caused by improperly nozzles provide a wide array of spray locked nozzle. widths from 0° to 65° and are easily accessible when placed in the ●... -
Page 14: Working With Detergents
The use of other cleaning detergent may affect the operation of the Working with Detergents machine and void the warranty. Detergents can only be applied with Always Use Kärcher Detergent for the black detergent nozzle. Best Results. ● Install the black detergent nozzle for Kärcher biodegradable detergents are detergent application at low pressure. -
Page 15: Taking A Break
● Turn engine switch to the OFF position. Taking a Break ● Disconnect all hoses..five minutes or more ● Unscrew cap from Pump Guard bottle. ● Move the engine stop switch to the ● Remove internal seal. OFF position. ●... -
Page 16: Maintenance Instructions
Rinse at high pressure in a long sweeping motion keeping the spray Maintenance Instructions nozzle approximately 8-15cm (3-6 inches) from the cleaning surface. Always clean from top to bottom and Pump from left to right. When moving on to a new section of the cleaning surface, Pump Inspection be sure to overlap the previous... - Page 17 Wash, apply to surface at low pres- sure (for best results, limit your work Barbecue Grills, Outdoor area to sections of approximately Power Equipment 1.8M (6 feet) and always apply & Gardening Tools detergent from bottom to top). Allow detergent to remain on surface 1-3 minutes.
- Page 18 Recommendations ● Before cleaning any surface, an inconspicuous area should be cleaned to test spray pattern and distance for maximum cleaning results. ● If painted surfaces are peeling or chipping, use extreme caution as pressure washer may remove the loose paint from the surface. ●...
-
Page 19: Troubleshooting
Troubleshooting Remove the spark plug cable to prevent accidental ignition of the engine before making any repair. Symptom Cause Solution Engine Will Not No Gasoline. Fill Gas Tank. Start Choke is not in the Slide lever out to closed position. correct position. - Page 20 Symptom Cause Solution Output Pump is sucking air. Check that hoses and fittings are air Pressure tight. Turn off machine and purge pump Varies Between by squeezing trigger gun until a steady High And Low flow of water emerges through the nozzle.
- Page 21 Symptom Cause Solution Spray Wand Spray wand not Turn the swivel nut of the gun clockwise Leaks properly attached. until connection is tight. Broken o-ring or Visit www.karcher.com.au or plastic insert. www.karcher.co.nz. Pump Is Noisy Not enough gas or Check that hoses and fittings are air engine oil.
- Page 23 High Pressure Washers Limited 24 month warranty Cold water gasoline pressure washers This Kärcher product is warranted by Kärcher to be free of defects in workmanship and materials under normal use. Specific warranty applies to: • Kärcher KPS and KXS series engines are warranted for two (2) years on parts and labor.
- Page 24 • Damage caused by misuse, neglect, accident, abuse, improper handling, freezing, normal wear and tear or non-compliance with operator's manual. • Damage caused by water sediment, contaminated water supply or use of chemicals and detergents not approved by or recommended by Kärcher. •...
