Summary of Contents for Kärcher G 2700

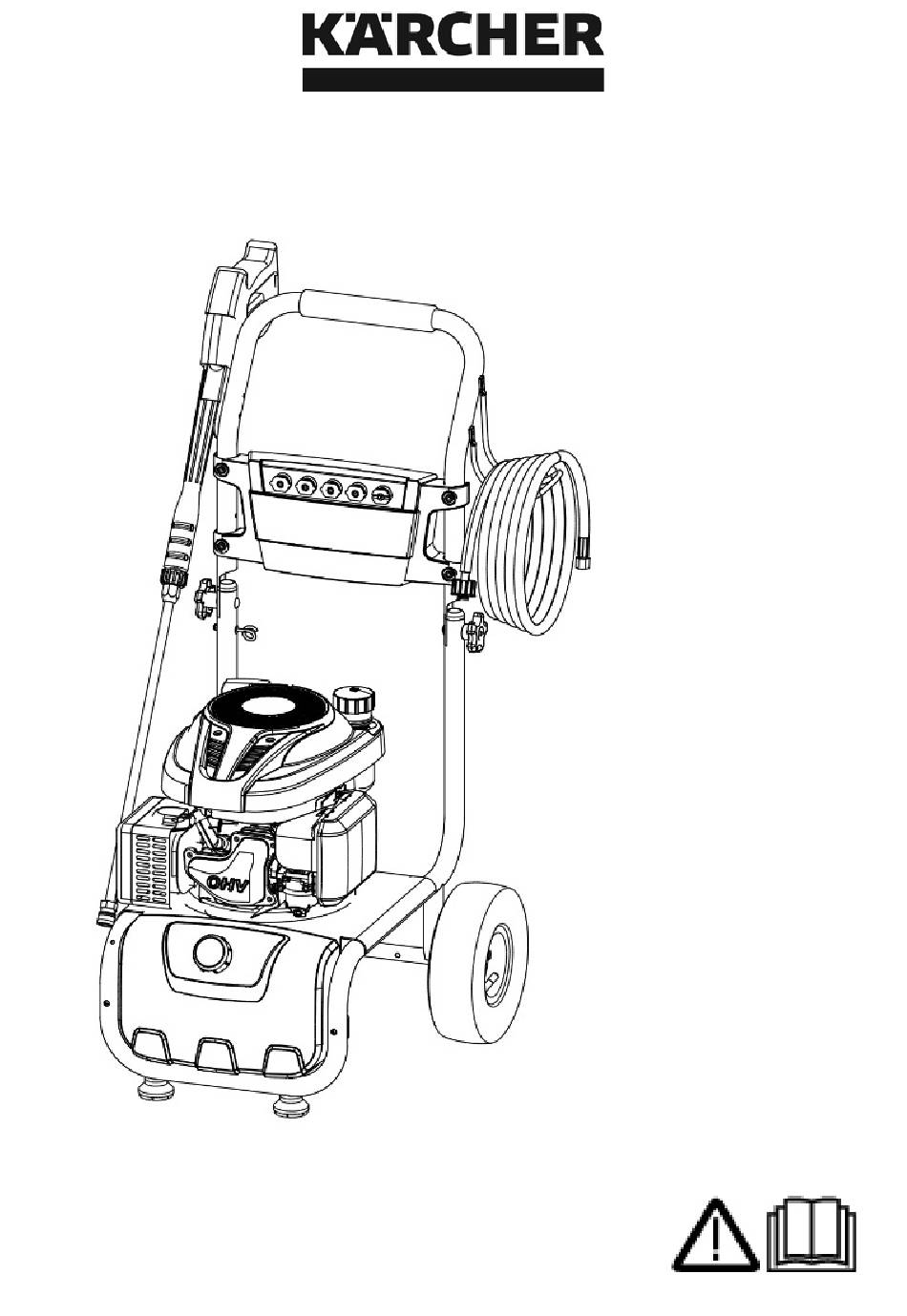

- Page 1 G 2700 English..4 Español ..22 Français..42 8.641-223.0 12/15...
- Page 2 G 2700...
-
Page 4: Table Of Contents
EN-4 16. Pump Outlet 17. Thermal Relieve Valve Safety Instructions EN-5 Assembly Instructions EN-7 Specifications Preparation EN-9 G 2700 C 0722 Operating Instruction EN-10 Operating Pressure 2700 PSI Using the Accessories EN-12 Water Volume 2.4 GPM Working with Detergents EN-12... -
Page 5: Safety Instructions
▬ Do not operate when fatigued or under the influence of alcohol or Hazard Levels drugs. ▬ Keep operating area clear of all persons. Indicates “an imminently hazardous ▬ Do not overreach or stand on situation which, if not avoided, will unstable support. - Page 6 ▬ The trigger gun safety lock prevents different location and avoid creating the trigger from accidentally being sparks. engaged. This safety feature must be ▬ This machine has hot surfaces which engaged when replacing nozzles or can cause burns. Operate in a safe not in use.
-
Page 7: Assembly Instructions
▬ Always prevent debris from being drawn into the unit by using a clean water source. Use additional water filter. ▬ Do not operate pressure washer without the water turned on. Assembly Instructions Part List B - Handle C - Gun Hook & Hose Hook D - Knobs &... - Page 8 F - Spray Gun & Wand ► Attach the handle and main frame with knobs and bolts. G - Wheels Parts not shown: 1 - Manual 1 - Nozzle Cleaner 1 - Spark Plug Wrench 1 - O-Ring Set (2 for pressure hose, 1 for spray gun) Assembling ►...
-
Page 9: Preparation
► Attach the gun & hose hooks to the handle. ► Fully reinsert the oil gauge dipstick and pull it out to check the oil level. ► If the oil level is halfway up the dipstick or below, refill with SAE 10W-30 oil through the dipstick hole until the oil level reaches 3/4 up the dipstick or until it reaches the bottom... -
Page 10: Operating Instruction
4-cycle engine and does not require a ► Press the two clips on the top of the gas/oil mixture. There is a separate air filter cover to remove the cover. reservoir for gas and a separate reservoir for oil. ► Remove the air filter, wash filter in ►... - Page 11 ► Connect spray gun and pressure ► Start the Engine hose. 1. Turn the engine switch to "ON" position. 2. Pull trigger on spray gun to release pressure. 3. Locate recoil cord and pull slowly ► Open water source. until resistance is felt. At this point, pull rapidly to start engine.
-
Page 12: Using The Accessories
Soap = Black nozzle Using the Accessories For operating with detergents or cleaning with low pressure. Quick Connect Nozzles The color-coded quick connect High pressure in nozzle area. Risk of nozzles provide a wide array of spray injury caused by improperly locked widths from 0°... -
Page 13: Taking A Break
washer. The special formula won't clog the filter and will protect the internal parts of the pressure washer for a longer life. For Kärcher Detergents, check your retailer or visit our website: www.karcherresidential.com Detergent Tank Never use: ▬ Bleach, chlorine products or other corrosive chemicals. -
Page 14: Winterizing & Long Term
for one minute to clear the line of ► Turn on the machine for a few residual detergent. seconds, until the water which remained in the pump exits. Turn off ► Move the engine stop switch to the OFF position. Close the fuel valve. engine immediately. -
Page 15: Cleaning Tips
from the cleaning surface (distance should increase when rinsing Cleaning Tips pin-striping or other sensitive surfaces). Always clean from top to bottom and from left to right. For best Deck Cleaning results, wipe surface dry with a chamois or soft dry cloth. With or Without Detergent Pre-rinse deck and surrounding area with fresh water. - Page 16 Cement Patios, Brick & Patio & Lawn Furniture Stone With or Without Detergent Pre-rinse furniture and surrounding With or Without Detergent area with fresh water. If using Pre-rinse cleaning surface with fresh Pressure Wash, apply to surface at water. If using Kärcher Pressure Wash low pressure.
- Page 17 Recommendations ▬ Before cleaning any surface, an inconspicuous area should be cleaned to test spray pattern and distance for maximum cleaning results. ▬ If painted surfaces are peeling or chipping, use extreme caution as pressure washer may remove the loose paint from the surface. ▬...
-
Page 18: Troubleshooting
Troubleshooting Remove the spark plug cable to pre- vent accidental ignition of the engine before making any repair. Symptom Cause Solution Engine Will Not No Gasoline. Fill Gas Tank. Start Choke is not in the Slide lever out to closed position. correct position. - Page 19 Symptom Cause Solution Output Pump is sucking air. Check that hoses and fittings are air Pressure tight. Turn off machine and purge pump Varies Between by squeezing trigger gun until a steady High And Low flow of water emerges through the nozzle Water inlet filter is Remove filter and rinse out in warm...
-
Page 20: Engine Ohv
Symptom Cause Solution Spray Wand Spray wand not Turn the swivel nut of the gun clockwise Leaks properly attached. until connection is tight. Broken o-ring or Visit www.karcher-help.com or locate a plastic insert. service center at www.karcher-service.com. Pump Is Noisy Not enough gas or Check that hoses and fittings are air engine oil.
