Summary of Contents for Kärcher G 2600 FC

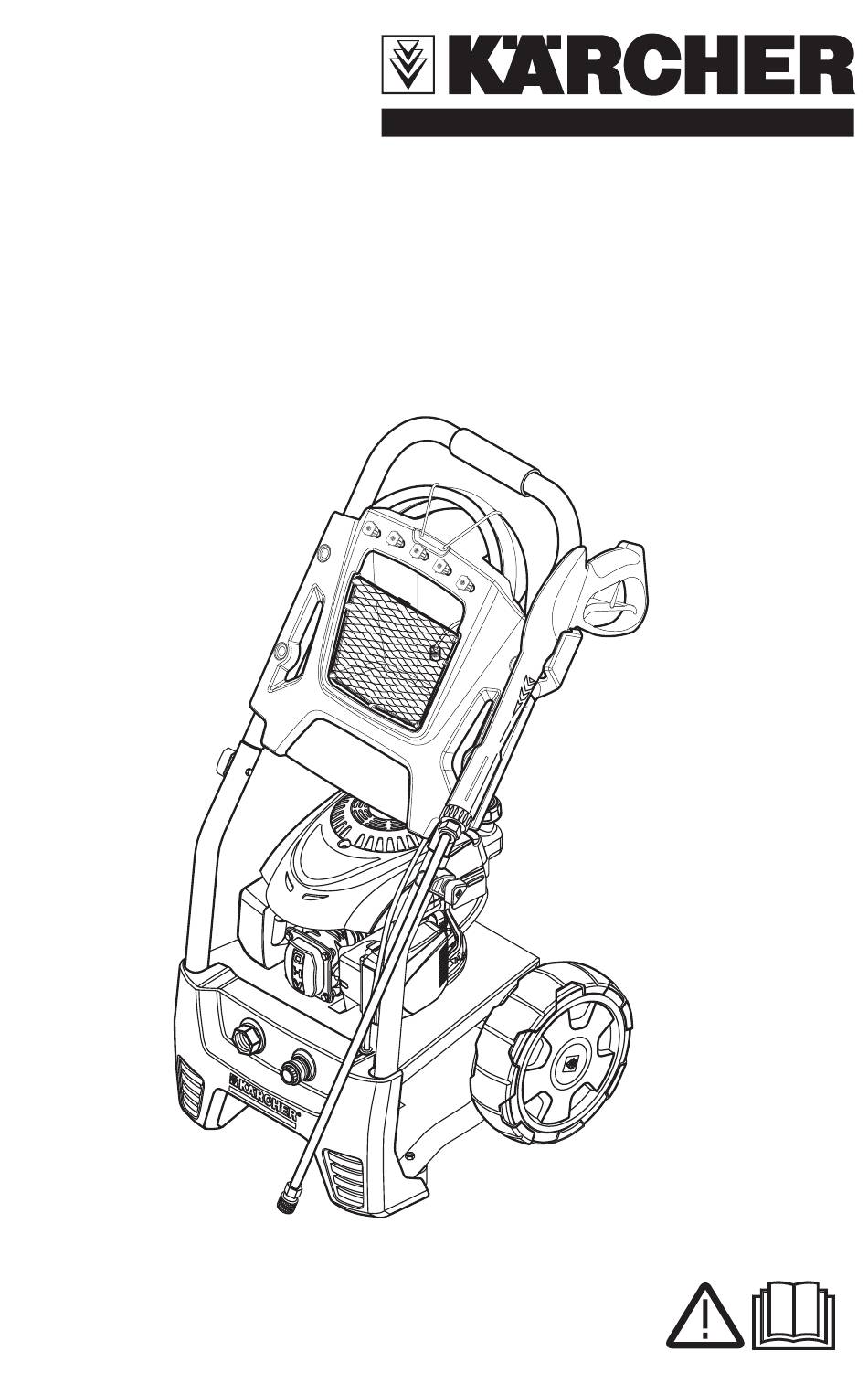

- Page 1 ® G 2600 FC G 2800 FC English Español Français 8.751-846.0 02/12...
- Page 2 Troubleshooting Specifi cations Owner/User Responsibility The owner and/or user must have an understand- G 2600 FC ing of the manufacturer’s operating instructions Operating Pressure 2600 PSI and warnings before using this pressure washer. Warning information should be emphasized and Water Volume 2.5 GPM...

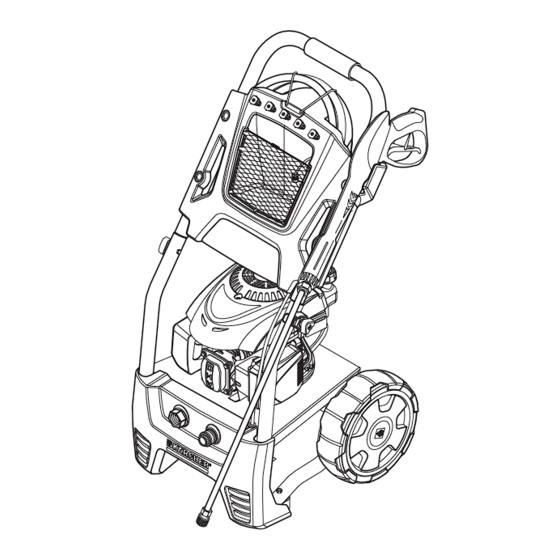

- Page 3 MODEL OVERVIEW Handle Water Inlet With Garden Hose Connector Trigger Gun Quick Connect High Pressure Outlet Trigger Gun Safety Lock 10. Detergent suction tube with fi lter High Pressure Hose 11. Dipstick Gas Tank 12. Quick Connect Nozzles Spray Wand For Engine Details See Engine Manual Nozzle Holder English 3...
- Page 4 IMPORTANT SAFETY INSTRUCTIONS ■ ■ Read the operating instructions of the engine Do not use acids, solvents, or any fl ammable manufacturer before start-up and follow the or alkaline material in this product. These safety instructions carefully. products can cause physical injuries to the operator and irreversible damage to the ma- WARNING chine.
- Page 5 WATER SUPPLY (Cold Water Only) ■ CAUTION Flow rate can be determined by running the water for one minute into an empty 5-gallon When connecting to water supply mains, local container. regulations of your municipal water company ■ must be observed. In some areas connecting The water supply temperature must not ex- directly to public drinking water supply may ceed 104°F/40°C.
- Page 6 Hardware (included) Description Purpose Illustration Spray Gun Spray Gun Assembly Quick Nozzles Kit Assembly Connect Nozzle Kit (5 pc.) Wand Wand Assembly Nylon Rivet Gun Holder Assembly Assembling Scan QR Code with smartphone for detailed instructions STEP 1: STEP 3: Attach the handle to the frame of the pressure Place the quick connect nozzles (H) in the washer.
- Page 7 Assembling STEP 5: Place the Spray Gun (G) into the Gun Holder (E) and the Wand (I) into the Wand Holder (D). OPERATING INSTRUCTIONS STEP 1: STEP 2: Pull the spring-loaded collar of the wand Pull back the spring loaded collar at the spray back to insert your choice of quick connect gun and insert the high pressure hose.
- Page 8 OPERATING INSTRUCTIONS CAUTION CAUTION Engine shipped without oil. Before starting High pressure in quick connect area. engine, fi ll with oil. Do not over-fi ll. Do not run Risk of injury caused by improperly locked the engine with a high or low oil level as this high pressure hose.
- Page 9 OPERATING INSTRUCTIONS STEP 12: Pull the starter handle. If the engine fails to After the engine warms up enough to run smoothly start after 3 pulls, squeeze the trigger gun to move choke rod to OFF position. release pressure, and repeat step. USING THE ACCESSORIES Quick connect nozzles 40°...
- Page 10 Detergents CAUTION CAUTION This unit has been designed for use with cleaning Never use: detergents recommended by the manufacturer. – Bleach, chlorine products or other corrosive The use of other cleaning detergent may affect the chemicals operation of the machine and void the warranty. –...
- Page 11 WINTERIZING AND LONG-TERM STORAGE 1: Disconnect all water connections. CAUTION 2: Turn on the machine for a few seconds, until Failure to follow the above directions will the water which had remained in the pump result in damage to the pump assembly and exits, turn off immediately.
- Page 12 Cement Patios, Brick and Stone Patio & Lawn Furniture (with or without detergent). Pre-rinse furniture (with or without detergent). Pre-rinse cleaning and surrounding area with fresh water. If using surface with fresh water. If using Kärcher Pres- Pressure Wash, apply to surface at low pressure. sure Wash or Degreaser, apply to surface at low Allow Pressure Wash to remain on surface 1-3 pressure.
- Page 13 TROUBLESHOOTING CAUTION Remove the spark plug cable to prevent accidental ignition of the engine before making any repair Symptom Cause Solution ENGINE WILL NOT No gasoline Fill gas tank START Choke is not in the correct Slide choke lever out to closed position position Water pressure built up in Squeeze the trigger to release the pressure...
- Page 14 Symptom Cause Solution NO DETERGENT Detergent suction tube not Check connection properly connected to the machine Detergent is too thick Dilute detergent, for best results use Kärcher detergent Filter on detergent suction Run warm water through fi lter to remove debris tube is clogged Damaged or clogged deter-...
