G 2800
(09/22)
59789480

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G 2800 and is the answer not in the manual?

Questions and answers

Related Manuals for Kärcher G 2800

Summary of Contents for Kärcher G 2800

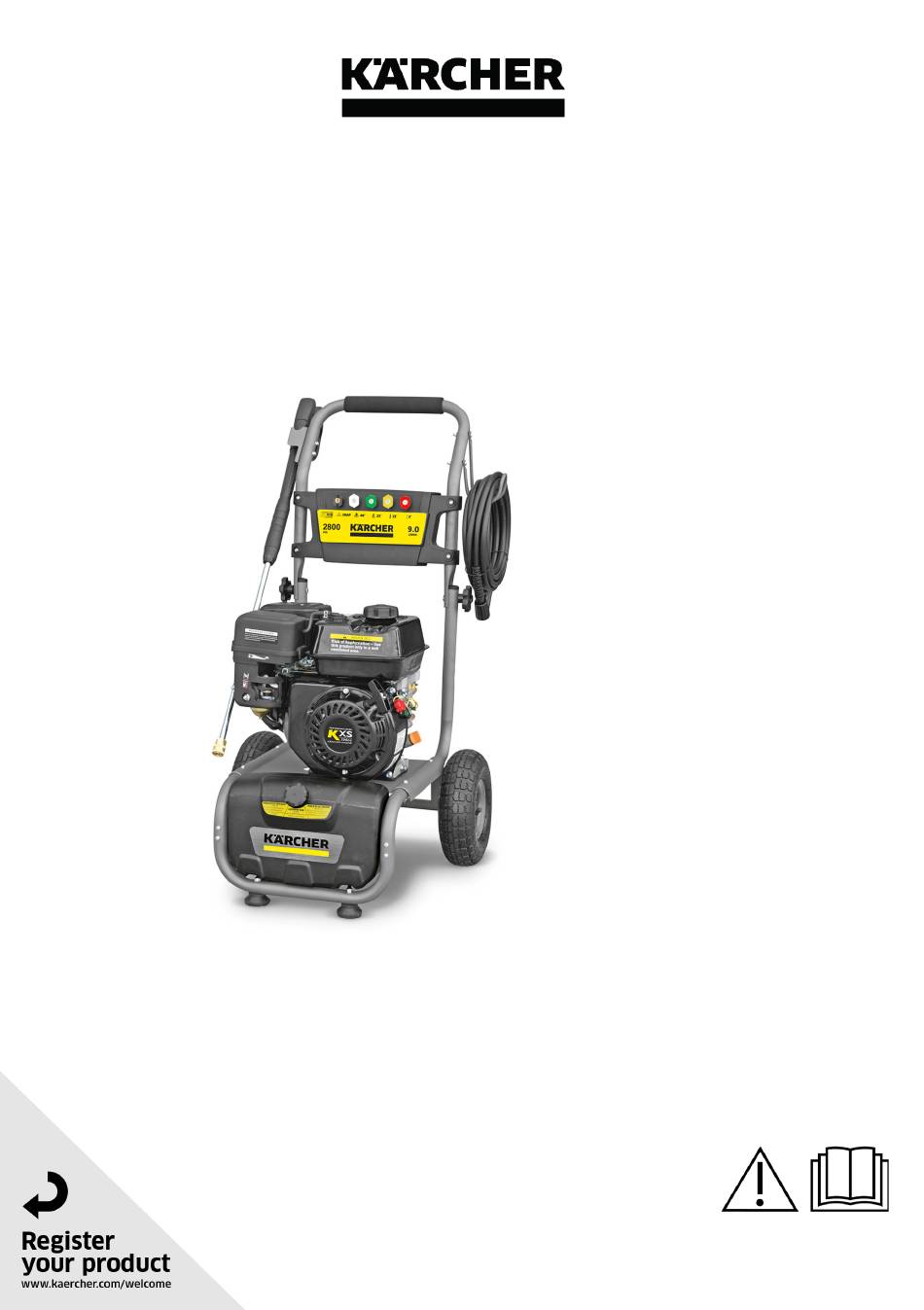

  • Page 1 G 2800 (09/22) 59789480...

  • Page 2: Table Of Contents

    Contents WARNING ● Only use the device for its proper use. Take into account the local conditions and beware Safety instructions ..........of third parties, in particular children, when working with Environmental protection........the device. ● This device must not be used by persons Intended use............

  • Page 3: Environmental Protection

    Operation with detergent The device is intended for cleaning machines, vehicles, buildings, tools, façades, terraces, garden machines WARNING ● Incorrect use of detergents can etc. using a high-pressure water jet. cause serious injuries or poisoning. Accessories and spare parts CAUTION ● Keep the detergent out of the reach of children.

  • Page 4: Description Of The Device

    Description of the device English...

  • Page 5: Safety Devices

    Supplied mounting parts High-pressure gun Jet nozzle Low-pressure jet: – Black (SOAP) High-pressure jet: – White, 40° jet angle – Green, 25° jet angle – Yellow, 15° jet angle – Red, 0° jet angle Handle High pressure hose hook High-pressure hose High-pressure spigot Star grip nuts (2 pieces) Thermostat valve...

  • Page 6: Symbols On The Device

    Symbols on the device Installing the high-pressure gun holder 1. Install the high pressure gun holder on the left side Do not connect the device directly to the of the handle with the M5x38 screws, washers and public drinking water network. M5 stop nuts.

  • Page 7: Initial Startup

    4. Screw the coupling plug into the union nut on the 2. Check the general condition of the engine and at- water spigot. tachments, see the engine operating instructions. 3. Check the engine oil level and correct if necessary, see the engine operating instructions. Filling with fuel 1.

  • Page 8: Operation

    Never use contaminated water, waste water or salt wa- Note: The spray lance or the jet nozzle can be re- ter. moved to facilitate the starting procedure, see chap- 1. Check the pressure, temperature and quantity of the ter Installing the spray lance on the high-pressure supply water for compliance with the requirements, gun or Changing the jet nozzle.

  • Page 9: Interrupting Operation

    3. Fill the detergent tank with a detergent suitable for Note the cleaning task. Use the black jet nozzle (SOAP) to add detergent or to 4. Screw the screw cap onto the detergent tank. work at low pressure. 4. Pull the jet nozzle to check that it is correctly seated. ATTENTION If necessary, fit the jet nozzle back into the jet nozzle Risk of damage due to detergents acting too long...

  • Page 10: Storage

    Pulling or pushing the device Folding the handle 1. Grasp the handle and tilt the device backwards via Note the wheels by max. 45°. The handle can be folded forwards or backwards for space-saving transport and storage. 1. Finish operation, see chapter Finishing operation. 2.
  • Page 11 5. Remove the water sieve from the union nut on the 3. Replace the sealing rings on the connections of the water spigot. high-pressure hose. 6. Clean the water sieve under running water. 4. Remove the spray lance from the high-pressure 7.

  • Page 12: Troubleshooting Guide

    Troubleshooting guide Malfunctions often have simple causes that you can doubt, or in the case of malfunctions not mentioned remedy yourself using the following overview. When in here, please contact your authorised Customer Service. Fault Cause Rectification The engine does not Various causes possible.

  • Page 13: Warranty

    Fault Cause Rectification The detergent is not The red, yellow, green or white jet nozzle 1. Install the black jet nozzle (SOAP) on the sucked in. is installed on the spray lance. spray lance, see chapter Changing the jet nozzle. The detergent suction hose is kinked, 1.

  • Page 14: Technical Data

    Technical data Electrical connection Degree of protection IPX5 Internal combustion engine Engine type Single-cylin- der 4-stroke petrol engine, G200F Type Overhead valves (OHV) Cooling type Air-cooled Engine capacity Engine performance kW/PS 4.1/5.6 Engine speed 1/min 3600 Fuel type Petrol, unleaded Fuel tank capacity Water connection Feed pressure (max.)
  • Page 16 THANK YOU! MERCI! DANKE! ¡ GRACIAS! Registrieren Sie Ihr Produkt und profitieren Sie von vielen Vorteilen. Register your product and benefit from many advantages. Enregistrez votre produit et bénéficier de nombreux avantages. Registre su producto y aproveche de muchas ventajas. www.kaercher.com/welcome Bewerten Sie Ihr Produkt und sagen Sie uns Ihre Meinung.
