Summary of Contents for Kärcher G 2900 R

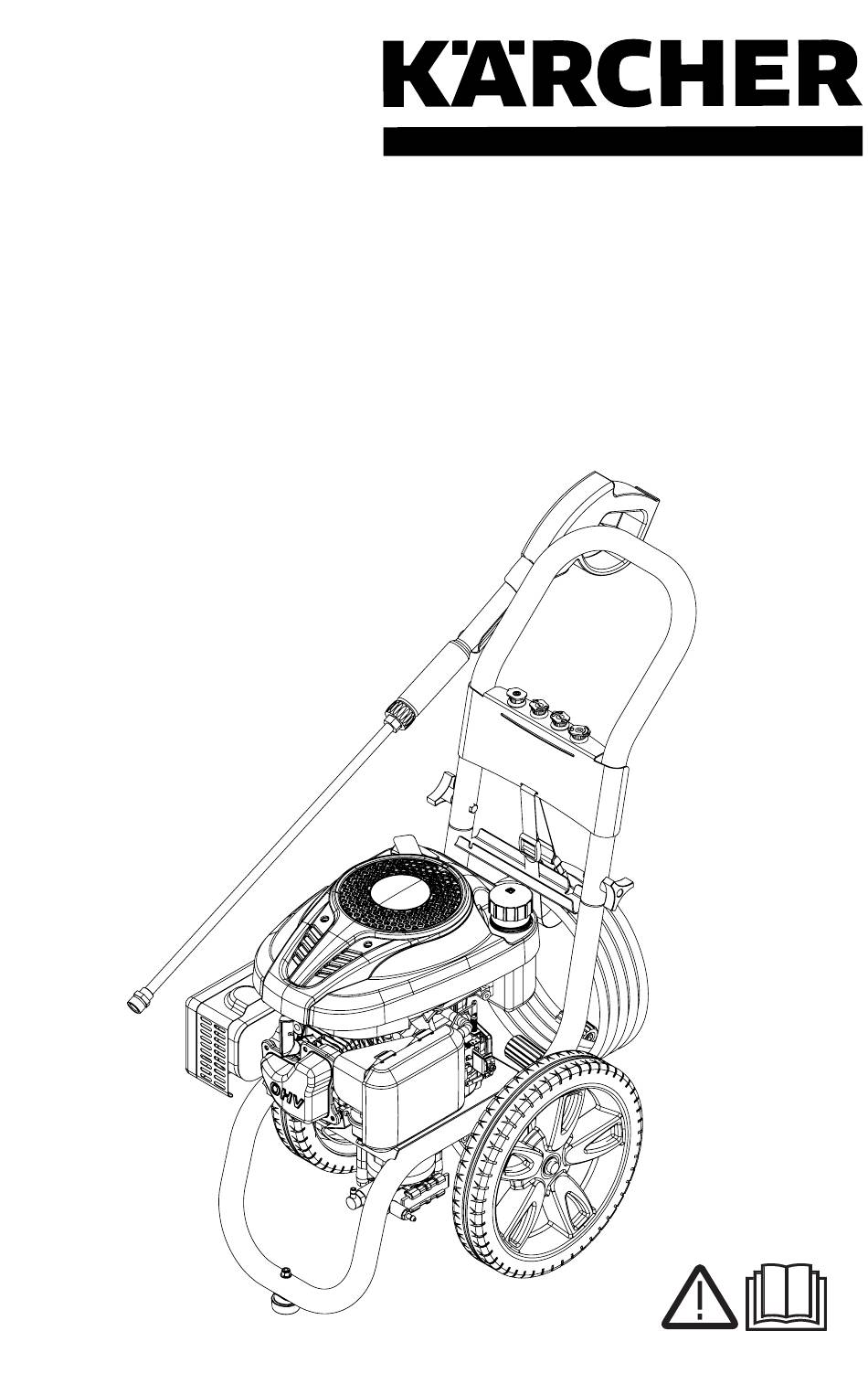

- Page 1 G 2900 R Manual Not For Use in USA and Canada! 8.757-207.0 03/18...
-
Page 2: Model Overview
MODEL OVERVIEW Handle Water inlet for garden hose High pressure outlet Trigger gun Spark plug Trigger gun safety lock Water inlet filter High pressure hose Detergent tube connection Spray wand Engine on/off switch Quick connect nozzles Tap adaptor Knob *For engine details see engine manual. Petrol Tank Oil Dipstick... -
Page 3: Table Of Contents
Troubleshooting arrange for the proper recycling. Warranty Information Old appliances contain valuable materials than can be recycled. please arrange for G 2900 R the proper recycling of old appliances. Max. Operating Please dispose your old appliances using 2900 PSI Pressure appropriate collection systems. - Page 4 HIGH PRESSURE WASHER OPERATOR MANUAL DANGER The high pressure jet may not be directed at persons, animals, live Indicates “an imminently hazardous situation electrical equipment or at the ap- which, if not avoided, will result in death or seri- ous injury.” pliance itself.
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Do not direct the jet against yourself or oth Read the operating instructions of ers in order to clean clothes or foot-wear. the engine manufacturer before start-up and follow the safety instructions carefully. Do not use the machine within range of Incorrect fuels shall not be used as they may persons unless they wear protective cloth prove hazardous. - Page 6 IMPORTANT SAFETY INSTRUCTIONS Do not use the machine if a supply cord or important parts of the machine are dam aged, e.g. safety devices, high pressure hoses, trigger gun. WARNING Always switch off the mains disconnecting switch when leaving the machine unatend WARNING Risk of fire, do not add fuel when the product is operating or still hot.
-
Page 7: Assembly Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING Never use the pressure washer to draw in water contaminated with solvents, e.g. paint Water that has flowed through backflow thinners, petrol, oil, etc. preventers is considered to be non potable. Always prevent debris from being drawn into Use a water filter to avoid potential damage the unit by using a clean water source. -
Page 8: Operating Instructions
ASSEMBLY INSTRUCTIONS Attach the wand (F) to the spray gun (E). Attach the handle to the pressure washer frame. Push the wand (F) into the trigger gun (E) and then thread the connection. Align holes, insert bolts (B), and tighten with knobs (A). - Page 9 OPERATING INSTRUCTIONS Connect garden hose to unit’s water inlet. Engine shipped without oil. Before starting engine, fill with oil. Do not over-fill. Do not run the engine with a high or low oil level as this can cause engine damage. If you have further questions regarding the engine, please refer to the engine manual included with the unit.
-
Page 10: Using The Accessories
USING THE ACCESSORIES For operating with detergents or cleaning with The color-coded quick connect nozzles provide a low pressure. wide array of spray widths from 15° to 65° and are easily accessible when placed in the convenient nozzle holder. For dirt accumulation over a surface. High pressure in nozzle area. -
Page 11: Taking A Break
WORKING WITH DETERGENTS This unit has been designed for use with cleaning detergents recommended by the manufacturer. – Bleach, chlorine products or other corrosive chemicals The use of other cleaning detergent may affect the – Liquids containing solvents (i.e., paint thin- operation of the machine and void the warranty. -
Page 12: Winterizing And Long-Term Storage
WINTERIZING AND LONG-TERM STORAGE It is highly recommended to use Kärcher's Pump Guard (part number 9.558-998.0) be- Screw bottle into water inlet on pressure washer pump and squeeze. fore winter storage and during the cleaning season to protect the pump from freezing and premature wear. -
Page 13: Maintenance Instructions
MAINTENANCE INSTRUCTIONS 4. Reinstall the oil level meter / dipstick (1). Starting the engine with a low oil level can cause damage to the engine. CLEANING TIPS Pre-rinse cleaning Pre-rinse deck and surface with fresh water. If using Karcher Multipur- surrounding area with fresh water. - Page 14 CLEANING TIPS Optional accessories are available to further enhance your cleaning capabilities. These acces- Pre-rinse cleaning sories are accurate as of the printing date of this surface with fresh water. If using Karcher Multi- manual. Please check our website: purpose Cleaner, apply detergent at low pressure. Allow Karcher Multipurpose Cleaner to remain on pricing and up-to-date information.
-
Page 15: Troubleshooting
TROUBLESHOOTING Remove the spark plug cable to prevent accidental ignition of the engine before making any repair. ENGINE WI No petrol. Fill petrol tank Engine switch OFF Turn engine switch to the ON position Water pressure built up in Squeeze the trigger to release the pressure the machine WA ER RE - Diameter of garden hose is... - Page 16 TROUBLESHOOTING GARDEN Loose fittings Tighten fittings C NNEC I N Missing/worn rubber Insert new washer washer RA WAND Spray wand not properly Turn the swivel nut of the gun clockwise until connection is tight attached Broken o-ring or plastic Visit www.karcher-help.com or locate a ser- vice center at www.karcher.com.au or insert www.karcher.co.nz...
-
Page 17: Warranty Information
WARRANTY INFORMATION This Kärcher product is warranted by Kärcher to be free of defects in workmanship and materials under normal use. Specific warranty applies to: serviced by a Kärcher service center a Honda authorized service center a Honda authorized service center a Kohler authorized service center service center year parts and labor warranty. - Page 18 WARRANTY INFORMATION or accessories will void implied warranty. tampering with Kärcher equipment or accessories will void the implied warranty. part or equipment. This warranty is non-transferable and applies only to products purchased through a Kärcher authorized reseller in the Australia and New Zealand. Equipment provided, but not manu- factured by Kärcher such as Honda and Kohler petrol engines are subject to warranties and service through said manufacturer’s service centers according to the terms and conditions provided by the respective original equipment manufacturer.
