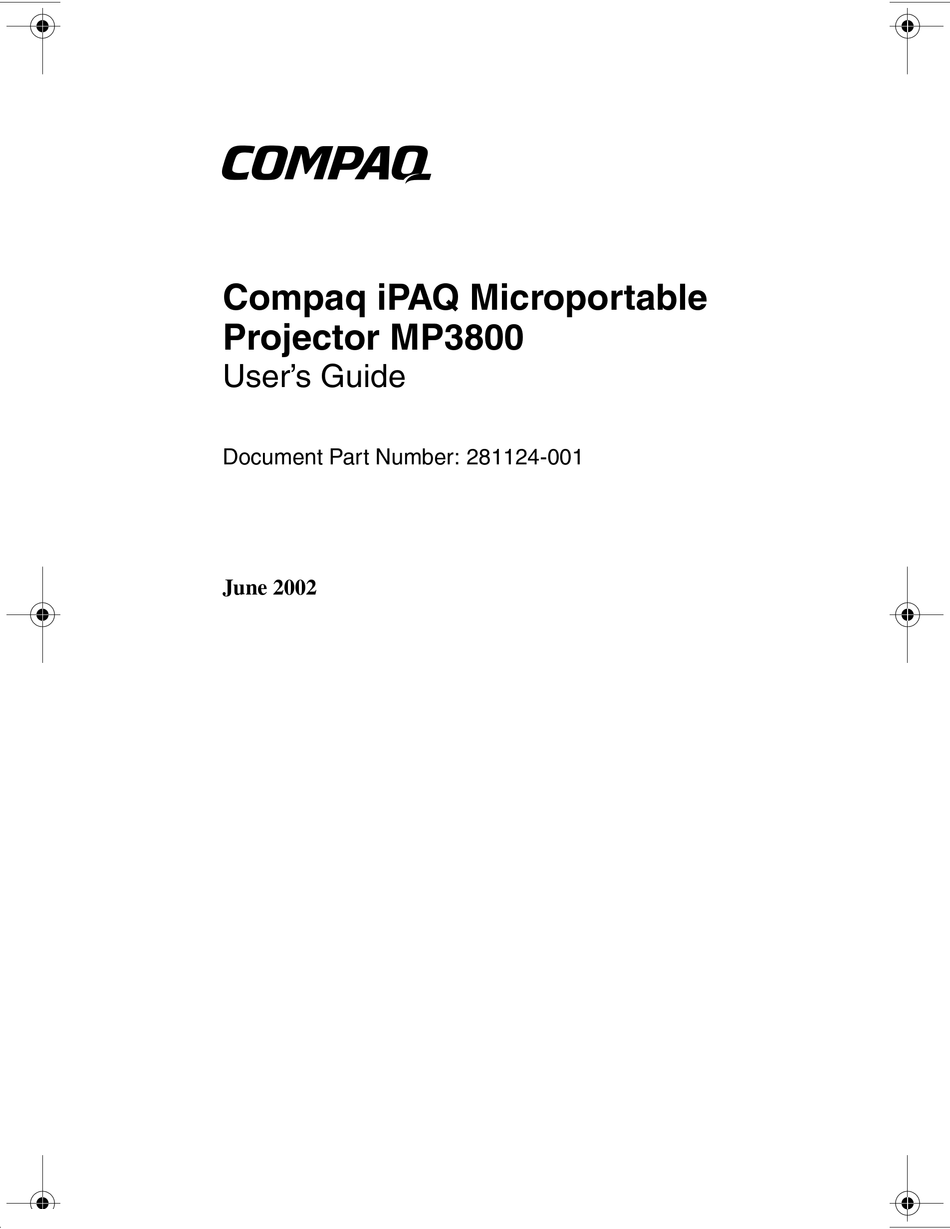

- Page 1 Compaq iPAQ Microportable Projector MP3800 User’s Guide Document Part Number: 281124-001 June 2002...
- Page 2 Ä CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information. Compaq iPAQ Microportable Projector MP3800 User’s Guide First Edition June 2002 Document Part Number: 281124-001...
-
Page 3: Getting Started

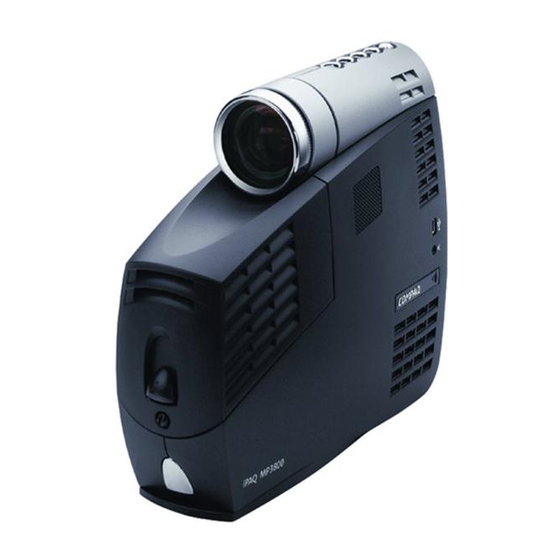

Product Features The Compaq iPAQ™ Microportable Projector MP3800 generates crisp, clear images onto a projection screen by using Digital Light Processing (DLP) technology. The microportable projector offers the latest in portable projection technology, including: ■ 1024 x 768 native XGA resolution ■... - Page 4 ■ Home Theater Kit [available option] ❏ DVI-Composite/S-video cable ❏ VGA-to-HDTV/Component video cable ❏ PC/RCA stereo audio cables ■ Multilingual on-screen adjustment menu ■ Plug and Play capability ■ Security lock slot 1–2 Compaq iPAQ Microportable Projector MP3800 User’s Guide...
- Page 5 Projector and lens cap 10-foot power cable VGA signal cable for use with computers, notebooks, and some handheld products USB cable Remote control (battery included) Compaq iPAQ Microportable Projector MP3800 User’s Guide Getting Started (Continued) 1–3...
- Page 6 If your shipping box does not contain all of the listed items, please contact your Compaq authorized dealer, reseller, or service provider. 1–4 Compaq iPAQ Microportable Projector MP3800 User’s Guide Projector Setup Guide CD-ROM containing the multilingual User’s Guide Important Safety Information booklet...
-
Page 7: Identifying The Projector Buttons
Identifying the Projector Buttons Identifying the Projector Buttons Item Symbol Compaq iPAQ Microportable Projector MP3800 User’s Guide Control Function Power/Standby Powers the projector lamp on and off. button The Power/Standby LED changes color modes to indicate the following operating modes: 1. - Page 8 Wait 45 seconds to allow the lamp to cool before pressing the again. To avoid going to Standby, press the again within the first five seconds. 1–6 Compaq iPAQ Microportable Projector MP3800 User’s Guide Control Function Menu button 1.
- Page 9 Component USB connector Audio-in connector Infrared receiver (both sides of projector) Speaker Compaq iPAQ Microportable Projector MP3800 User’s Guide Function Connects back to the computer allowing remote mouse functionality. Connects audio equipment, videocassette recorders, DVD players, personal computers, etc., allowing sound to be played through the projector speaker.
- Page 10 The optional Home Theater Kit provides standard video and HDTV connections using the DVI and VGA ports. Refer to Chapter 6, “Using the Home Theater Kit,” for more information. 1–8 Compaq iPAQ Microportable Projector MP3800 User’s Guide Function Connects digital equipment. Connects desktop or notebook computers, or pocket PCs.
-
Page 11: Using The Projector
Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug. Compaq iPAQ Microportable Projector MP3800 User’s Guide Using the Projector 2–1... -
Page 12: Balancing The Projector
Refer to the “Adjusting the Projector Height” section later in this chapter. Ä CAUTION: If the projector is mounted to a tripod, do not use the elevator foot. 2–2 Compaq iPAQ Microportable Projector MP3800 User’s Guide... - Page 13 Connecting the Projector to a Notebook Computer 1. Connect one end of the projector signal cable into the back of the projector and the other end to the DVI connector 1 A or the VGA connector 1 B on the notebook computer and tighten the screws.
-
Page 14: Connecting The Projector To A Desktop Computer
Using the Projector Connecting the Projector to a Desktop Computer 1. Connect one end of the projector signal cable into the back of the projector and the other end to the DVI connector 1 A or the VGA connector 1 B on the desktop computer and tighten the screws. - Page 15 2. Connect one end of the power cord 2 into the back of the projector, and the other end to an electrical outlet that is easily accessible and close to the projector. Compaq iPAQ Microportable Projector MP3800 User’s Guide http://www.compaq.com/products/iPAQ. Using the Projector...
-
Page 16: Powering On The Projector
4. Press the When the projector has warmed up, the Compaq startup screen displays and the LED on the turns green. 2–6 Compaq iPAQ Microportable Projector MP3800 User’s Guide button 2 on the top of the projector. Power/Standby button Power/Standby... - Page 17 When the startup screen disappears, the video from the attached computer displays. If there is no incoming video, the “No Source Found. Please Check Signal Cable” message will display on the projection screen. Compaq iPAQ Microportable Projector MP3800 User’s Guide Using the Projector 2–7...
-
Page 18: Powering Off The Projector
2. Once the disconnect the power cord from the electrical outlet and the projector 2 . 2–8 Compaq iPAQ Microportable Projector MP3800 User’s Guide button 1 to turn off the Power/Standby button blinks amber. Allow the projector to LED has turned steady amber,... -
Page 19: Adjusting The Projected Image
If the projector is mounted to a tripod, do not use the elevator foot. To adjust the height: 1. Raise the projector to the desired display angle, then press the elevator button 1 to release the elevator foot 2 . Compaq iPAQ Microportable Projector MP3800 User’s Guide Using the Projector 2–9... -
Page 20: Adjusting The Image Size
Adjusting the Image Size The projector zoom feature is capable of increasing the image size up to 20%. To increase or decrease the image size, turn the projector zoom ring left or right. 2–10 Compaq iPAQ Microportable Projector MP3800 User’s Guide... -
Page 21: Adjusting The Projector Focus
Image Control menu item in the on-screen display menu to manually adjust the synchronization and tracking. Refer to Chapter 3, “Using the On-Screen Display Menu,” for more information. Compaq iPAQ Microportable Projector MP3800 User’s Guide button 2 to automatically synchronize and Using the Projector 2–11... -
Page 22: Image Size Adjustment
Height Projected Image Sizes at Maximum Zoom 2 Projection Distance Screen Diagonal Screen Width Screen Height 2–12 Compaq iPAQ Microportable Projector MP3800 User’s Guide 3.7’ 6.5’ 13.1’ 1.1 m 2.0 m 4.0 m 1.9’ 3.3’ 6.7’ 0.6 m 1.0 m 2.0 m... -
Page 23: Using The On-Screen
Programmable Read Only Memory (EEPROM), a memory device which stores data even when the projector is turned off. ✎ The projector does not require a battery to store your settings. Compaq iPAQ Microportable Projector MP3800 User’s Guide Using the On-Screen Display Menu 3–1... - Page 24 The bar on the bottom of the on-screen display menu shows the current operating resolution as well as horizontal and vertical frequency. 3–2 Compaq iPAQ Microportable Projector MP3800 User’s Guide button 1 on the projector or the remote Menu (+) button 2 to scroll up...
- Page 25 Return. If the buttons remain untouched for 5 seconds, all current settings will be saved and the on-screen display menu will exit. Compaq iPAQ Microportable Projector MP3800 User’s Guide Using the On-Screen Display Menu (-) button to decrease and the...
- Page 26 Using the On-Screen Display Menu On-Screen Display Menu Adjustments Main Menu Brightness Contrast Image Control 3–4 Compaq iPAQ Microportable Projector MP3800 User’s Guide Menu Level 2 Adjustment Scale Adjustment Scale Horizontal Position Vertical Position Clock Clock Phase Zoom Vertical Keystone...
- Page 27 On-Screen Display Menu Adjustments (Continued) Main Menu Color Language Management Compaq iPAQ Microportable Projector MP3800 User’s Guide Using the On-Screen Display Menu Menu Level 2 7400 K (default) Custom Color Video Adjustments Save and Return Cancel Deutsch English Español Français...
- Page 28 Using the On-Screen Display Menu On-Screen Display Menu Adjustments (Continued) Main Menu A/V & HDTV Control Input Source Select Factory Reset Exit 3–6 Compaq iPAQ Microportable Projector MP3800 User’s Guide Menu Level 2 HDTV/Video Color Space Audio Gamma Save and Return Cancel...
- Page 29 Zoom—Magnifies an image up to a factor of 32 on the projection screen (zooms in to a specific area on the screen, and pans left, right, up, and down). Compaq iPAQ Microportable Projector MP3800 User’s Guide (-) button to darken the image. Press Minus (+) button to brighten the image.
- Page 30 Language—Allows you to change the on-screen display to one of the languages in their native spelling. The current language is highlighted. Select another language to display all menu functions in that language. 3–8 Compaq iPAQ Microportable Projector MP3800 User’s Guide...
-
Page 31: Special On-Screen Messages
Mode—Indicates the projector is unable to access the appropriate input signal. ■ Going to Standby—Indicates the projector is entering a sleep mode or is powering off the lamp. Compaq iPAQ Microportable Projector MP3800 User’s Guide Using the On-Screen Display Menu button on the remote Source 3–9... - Page 32 When the projector is started, the Compaq banner displays for approximately 10 seconds. To skip this banner display, turn off the function using the OSD menu. 3–10 Compaq iPAQ Microportable Projector MP3800 User’s Guide button has been pressed or Resync Source...
-
Page 33: Using The Tripod Mount
Ä CAUTION: Do not overtighten the tripod mount screw. Doing so could strip the screw and cause the projector to fall off the tripod. Compaq iPAQ Microportable Projector MP3800 User’s Guide Using the Tripod Mount 4–1... - Page 34 2. If there is a guide pin on the tripod mounting block, align it with the guide pin hole 1 on the bottom of the projector. 3. Attach the tripod mounting block to the tripod mount hole 2 on the bottom of the projector. 4–2 Compaq iPAQ Microportable Projector MP3800 User’s Guide...
- Page 35 4. Attach the projector and tripod mounting block to the tripod according to the tripod manufacturer’s instructions. ✎ The projector can also be used in a ceiling-mount application using the tripod mount screws. Compaq iPAQ Microportable Projector MP3800 User’s Guide 4–3...
-
Page 36: Using The Remote Control
Before using the remote control, be sure steps 1 through 3 have been completed under “Powering On the Projector” in Chapter 2. Compaq iPAQ Microportable Projector MP3800 User’s Guide 5–1... - Page 37 On-screen Enter/Accept button Zoom in button Page up button Zoom out 5–2 Compaq iPAQ Microportable Projector MP3800 User’s Guide Function Re-synchronizes the projector with the input source Menu button Launches the on-screen display menu Accepts the current selection and/or displays the next OSD menu level...
-
Page 38: Remote Control Functions
Remote Control Functions The remote control performs duplicates the functions of the projector buttons including adjusting the on-screen buttons. Compaq iPAQ Microportable Projector MP3800 User’s Guide Function button Turns the projector on and off OR powers the projector into and out of... - Page 39 USB connector on the computer. ✎ Microsoft Windows XP, Windows ME, Windows 2000, and Windows 98 support USB connections. Microsoft Windows NT and early versions of Windows 95 do not support USB connections. 5–4 Compaq iPAQ Microportable Projector MP3800 User’s Guide...
- Page 40 To locate a dealer or reseller near you, refer to the Worldwide Telephone Numbers booklet that came with your projector or, to purchase directly from Compaq, refer to the Compaq website at http://www.compaq.com/products/projectors. Compaq iPAQ Microportable Projector MP3800 User’s Guide 6–1...
- Page 41 HDTV support, refer to “HDTV Modes” later in this chapter. Home Theater audio cable—connects a home theater device with stereo speakers to the projector. PC audio cable—connects a personal computer with a single audio input connector to the projector. 6–2 Compaq iPAQ Microportable Projector MP3800 User’s Guide...
-
Page 42: Connecting A Dvd Player
3. Connect one end of the power cord into the back of the projector and the other end to an electrical outlet that is easily accessible and close to the projector. Compaq iPAQ Microportable Projector MP3800 User’s Guide Using the Home Theater Kit 6–3... -
Page 43: Connecting A Videocassette Recorder (Vcr)
2 . 3. Connect one end of the power cord into the back of the projector and the other end to an electrical outlet that is easily accessible and close to the projector. 6–4 Compaq iPAQ Microportable Projector MP3800 User’s Guide... -
Page 44: Connecting A Camcorder
3. Connect one end of the power cord into the back of the projector and the other end to an electrical outlet that is easily accessible and close to the projector. Compaq iPAQ Microportable Projector MP3800 User’s Guide Using the Home Theater Kit 6–5... - Page 45 4 . 5. Connect one end of the power cord into the back of the projector and the other end to an electrical outlet that is easily accessible and close to the projector. 6–6 Compaq iPAQ Microportable Projector MP3800 User’s Guide...
-
Page 46: Connecting A Personal Computer (Pc)
5. Connect one end of the power cord into the back of the projector and the other end to an electrical outlet that is easily accessible and close to the projector. Compaq iPAQ Microportable Projector MP3800 User’s Guide Using the Home Theater Kit 6–7... - Page 47 VGA input connector. The following modes are supported on the DVI interface: ■ ❏ 640 x 480p (480 progressive) ❏ 640 x 480i (component video) ❏ 1280 x 720p ■ HD1—1920 x 1080i 6–8 Compaq iPAQ Microportable Projector MP3800 User’s Guide...
- Page 48 (XGA, or 1024 x 768). Therefore, the projector will normally downscale the HDTV data to fit the complete image within the displayable 1024 x 768 resolution. Compaq iPAQ Microportable Projector MP3800 User’s Guide 6–9...
-
Page 49: Care And Maintenance
Slots and openings in the cabinet are provided for ventilation. These openings must not be blocked or covered. Never push objects of any kind into cabinet slots or other openings. Compaq iPAQ Microportable Projector MP3800 User’s Guide Care and Maintenance 7–1... -
Page 50: Cleaning The Lens
Do not store a cleaning cloth in contact with the lens for a long time as doing so may contaminate the lens with dye from the cloth. The cloth can be contaminated if left in the open air. 7–2 Compaq iPAQ Microportable Projector MP3800 User’s Guide... -
Page 51: Replacing The Projector Lamp Module
WARNING: The lamp assembly operates at a very high temperature. To reduce the risk of personal injury, allow the projector to cool down for at least 30 minutes before opening the lamp cover. Never open the lamp cover while the projector is operating or when the lamp is hot. - Page 52 The lamp contains < 0.125% mercury by weight. If the projection lamp breaks, the mercury may be released into the atmosphere. Please follow applicable federal, state, and local regulations for disposal and/or recycling. 7–4 Compaq iPAQ Microportable Projector MP3800 User’s Guide...
- Page 53 6. Select Reset Lamp Hours from the Service menu and press Menu 7. Select Yes from the Confirm Reset menu and press the button. Menu 8. Select Save and Return. Compaq iPAQ Microportable Projector MP3800 User’s Guide button on top of the projector while Menu Menu button. Care and Maintenance button on the top of the 7–5...
-
Page 54: Troubleshooting
Troubleshooting Problem Image does not appear on the projection screen. Compaq iPAQ Microportable Projector MP3800 User’s Guide Troubleshooting Solutions 1. Make sure the projector is powered on. 2. Ensure the lens cap has been removed. Power/Standby 3. Press the again. - Page 55 Troubleshooting (Continued) Problem Scrolling, cut-off, or incorrect image displayed. Image is flickering or unstable. 8–2 Compaq iPAQ Microportable Projector MP3800 User’s Guide Solutions Resync 1. Press the 2. Turn everything off, then power on the projector first and power on the notebook or desktop computer second.
- Page 56 Troubleshooting (Continued) Problem Notebook computer or iPAQ Pocket PC screen is not displaying the presentation. Compaq iPAQ Microportable Projector MP3800 User’s Guide Solutions Notebook computer: Most notebook computers have a monitor loop-through or simultaneous viewing Fn + F4 function. Press the...
- Page 57 When the projector is in HDTV mode, the colors are incorrect. 8–4 Compaq iPAQ Microportable Projector MP3800 User’s Guide Solutions 1. Adjust the Focus Ring on the projection lens. 2. Make sure the projection screen is within the required distance (3.7 to...
- Page 58 Screen is dimmer than normal. Lamp shuts off. Compaq iPAQ Microportable Projector MP3800 User’s Guide Solutions 1. Check that the cables are connected securely. 2. Verify that the proper input source is connected.
- Page 59 LED blinks rapidly. Speaker does not operate. 8–6 Compaq iPAQ Microportable Projector MP3800 User’s Guide Solutions When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced.
- Page 60 Image size is too small or too large. Compaq iPAQ Microportable Projector MP3800 User’s Guide Solutions 1. Ensure the remote control is pointed at the sensor and is within 21.0 feet (6.4 meters) of the projector.
- Page 61 The image is upside down or a mirror image is displayed. The desired source is not displayed. 8–8 Compaq iPAQ Microportable Projector MP3800 User’s Guide Solutions The projector has been set for operation in rear screen mode or ceiling mount mode. To display the image properly,...
-
Page 62: Agency Regulatory Notices
Connect the equipment into an outlet on a circuit different from the circuit that the receiver is connected. ■ Consult the dealer or an experienced radio or television technician for help. Compaq iPAQ Microportable Projector MP3800 User’s Guide Appendix Appendix–1... -
Page 63: Declaration Of Conformity For Products Marked With The Fcc Logo, United States Only
Compaq Computer Corporation P.O. Box 692000, Mail Stop 510101 Houston, Texas 77269-2000 Or, call (281) 514-3333 To identify this product, refer to the Part, Series, or Model number found on the product. Appendix–2 Compaq iPAQ Microportable Projector MP3800 User’s Guide... -
Page 64: Canadian Notice
EN 55022 (CISPR 22)—Electromagnetic Interference ■ EN55024 (IEC6100-4-2, 3, 4, 5, 6, 8, 11)—Electromagnetic Immunity ■ EN61000-3-2 (IEC6100-3-2)—Power Line Harmonics ■ EN61000-3-3 (IEC61000-3-3)—Power Line Flicker ■ EN 60950 (IEC 60950)—Product Safety Compaq iPAQ Microportable Projector MP3800 User’s Guide Agency Regulatory Notices Appendix–3... -
Page 65: Japanese Notice
A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against it. Particular attention should be paid to the plug, electrical outlet, and the point where the cord exits from the product. Appendix–4 Compaq iPAQ Microportable Projector MP3800 User’s Guide...
