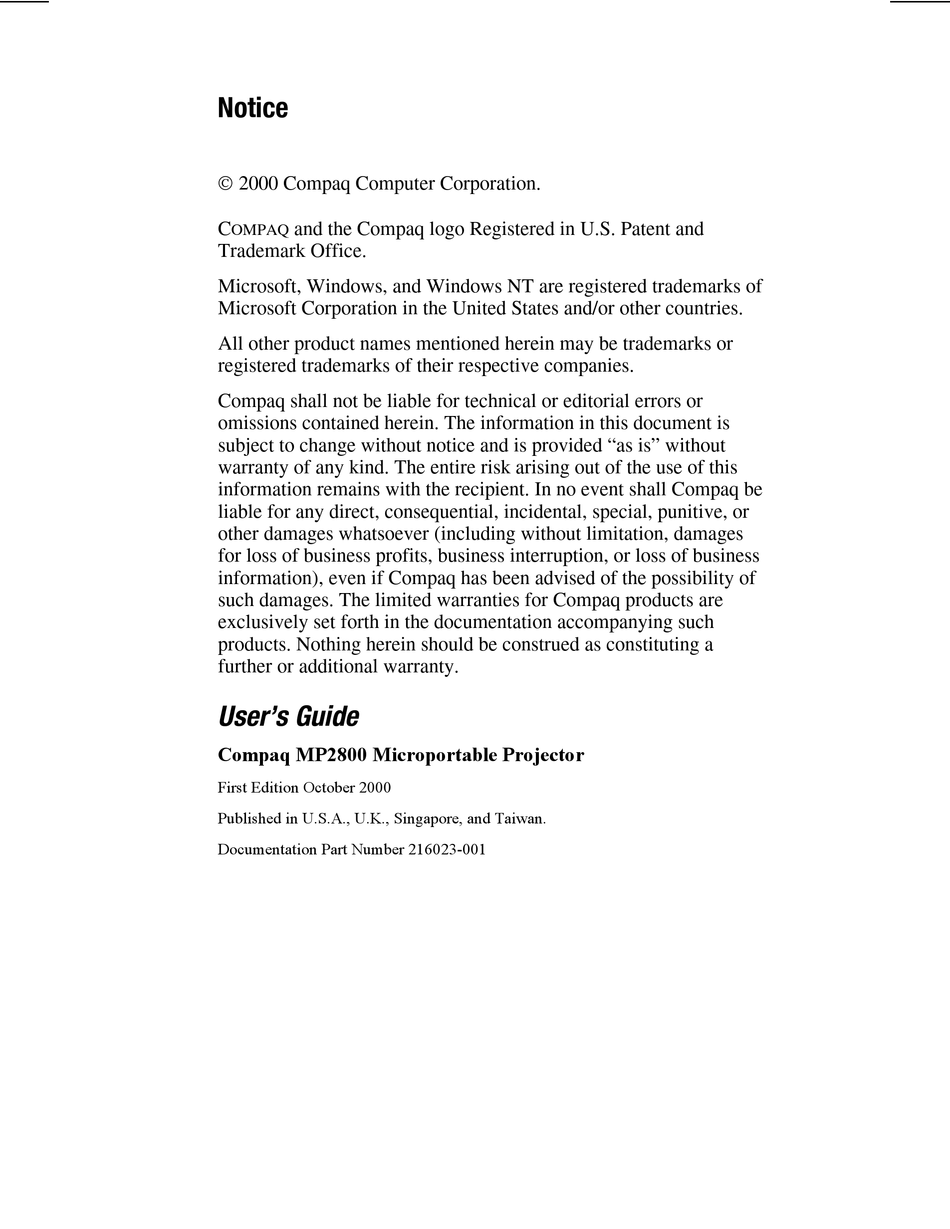

Notice
 2000 Compaq Computer Corporation.
C
and the Compaq logo Registered in U.S. Patent and
OMPAQ
Trademark Office.
Microsoft, Windows, and Windows NT are registered trademarks of
Microsoft Corporation in the United States and/or other countries.
All other product names mentioned herein may be trademarks or
registered trademarks of their respective companies.
Compaq shall not be liable for technical or editorial errors or
omissions contained herein. The information in this document is
subject to change without notice and is provided "as is" without
warranty of any kind. The entire risk arising out of the use of this
information remains with the recipient. In no event shall Compaq be
liable for any direct, consequential, incidental, special, punitive, or
other damages whatsoever (including without limitation, damages
for loss of business profits, business interruption, or loss of business
information), even if Compaq has been advised of the possibility of
such damages. The limited warranties for Compaq products are
exclusively set forth in the documentation accompanying such
products. Nothing herein should be construed as constituting a
further or additional warranty.
User's Guide

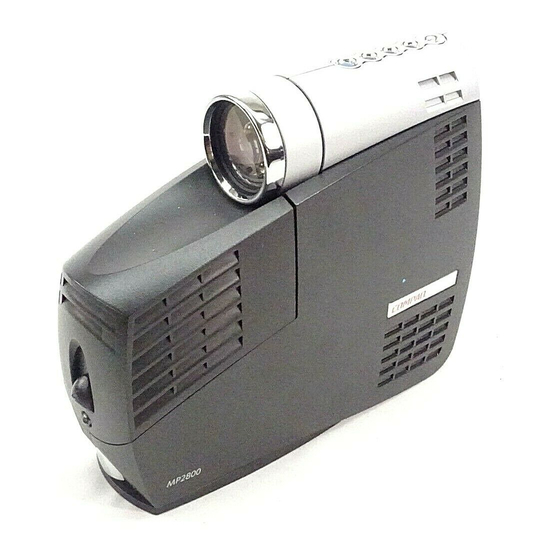

Compaq MP2800 Microportable Projector
First Edition October 2000
Published in U.S.A., U.K., Singapore, and Taiwan.
Documentation Part Number 216023-001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP2800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Compaq MP2800

  • Page 1 All other product names mentioned herein may be trademarks or registered trademarks of their respective companies. Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information in this document is subject to change without notice and is provided “as is” without warranty of any kind.
  • Page 2: Using This Guide

    Preface Using This Guide The User's Guide includes general information about your projector, troubleshooting and diagnostics, and technical specifications. Symbols and Conventions The following words and symbols mark special messages throughout this guide: ✎ Text set off in this manner presents clarifying information, specific instructions, commentary, sidelights, or interesting points of view.
  • Page 3: Warning Messages

    Warning Messages Before operating the projector, please read the following messages. WARNING: Preface To reduce the risk of harm to your eyes, do not look directly into the bright light of the projection lens. To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
  • Page 4: Getting Started

    Chapter 1 Getting Started Product Features The Compaq MP2800 Microportable Projector generates crisp, clear images onto a projection screen by using Digital Light Processing (DLP) technology. The microportable projector offers the latest in portable projection technology, including: 1024 × 768 native XGA resolution...
  • Page 5 Compaq Projector Display Assistant utility to adjust screen settings Security lock slot Introduction Before setting up your Compaq Microportable Projector, be sure your shipping box includes the following items: Getting Started...
  • Page 6 Compaq Multimedia Adapter (optional use) Remote control, including two AAA batteries (optional use) Carrying case CD-ROM containing the Compaq Presentation utility program, Compaq Projector Display Assistant utility, RS232 driver, and the User’s Guide Two Quick Setup cards and the Agency Regulatory Notices booklet...
  • Page 7: Setting Up The Projector

    If your shipping box does not contain all of the listed items, please contact your Compaq authorized dealer, reseller, or service provider. Setting Up the Projector Follow the instructions below and on the following pages to set up the projector. Separate setup instructions are described for the...
  • Page 8 Balancing the Projector The projector has a built-in elevator foot used to balance and elevate the projector. Always balance the projector before connecting any device to it. Turn the elevator foot sideways to balance the projector. WARNING: tipping or overturning, always turn the elevator foot 90°...
  • Page 9 The projector will automatically be placed into Standby mode. 4. Press the blue Standby button on the top of the projector to turn on the projector first, then turn on the computer. ✎...
  • Page 10 Connecting the Projector to a Desktop Computer 1. Rotate the elevator foot to balance the projector. 2. Connect one end of the projector signal cable –B to the projector and the other end to the VGA connector on the desktop computer and tighten the screws.
  • Page 11 2. Connect one end of the signal cable – to the projector and connect the other end to the VGA-out PC Card. The VGA-out PC Card may be inserted into the PC slot on the Compaq PC Companion before or after connecting the signal cable.
  • Page 12 The projector will automatically be placed into Standby mode. 4. Press the blue Standby button on the top of the projector to turn on the projector first, then turn on the computer. ✎...
  • Page 13: Powering On The Projector

    Connecting the Projector to Other Video Sources The optional Compaq Multimedia Adapter must be used to connect the projector to a camcorder, DVD player, or videocassette recorder. This adapter converts signals from the camcorder, DVD player, or videocassette recorder for compatibility with the projector.
  • Page 14 If there is a long delay between the time the startup screen displays and the time the presentation software is launched, the lamp may shut off and the projector will automatically go into standby mode. If this happens, press the button to power on the lamp.
  • Page 15: Powering Off The Projector

    2. Disconnect the power cord from the electrical outlet and the projector —. CAUTION: After the projector is turned off, wait at least one minute before turning the projector back on. Failure to follow this caution can result in damage to the projector.
  • Page 16: Adjusting The Projected Image

    Adjusting the projector zoom Adjusting the Projector Height The projector has a built-in elevator foot that can raise the projector approximately 1 inch (2.54 cm). To adjust the height: 1. Ensure the foot is turned 90° to balance the projector.
  • Page 17 Adjusting the Projector Focus To focus the projected image, rotate the focus ring – until the image is clear. The projector will focus at distances from 3.74 (1.14 meters) to 32.8 feet (10 meters). If vertical bars appear on the display after adjusting the focus, press button —...
  • Page 18 Adjusting the Projector Zoom To adjust the size of the projected image, rotate the zoom lever until the projected image is the desired size. Getting Started...
  • Page 19: Image Size Adjustment

    (.97m) Height 1.35 ft. 2.40 ft. (.41m) (.73m) ✎ If the projector is used at the maximum distance in this chart, the display may appear to be dimmer than usual. Getting Started 9.84 ft. 13.12 ft. 16.40 ft. (3m) (4m) (5m) 5.02 ft.
  • Page 20: Using The Compaq Presentation Utility

    Using the Compaq Presentation Utility The Compaq Presentation utility included on the CD-ROM is for use with portable computers. The purpose of the Presentation utility is to disable power management features of the portable computer while the Compaq Microportable Projector is connected to it. The utility also disables the computer’s screen savers and auto-suspend...
  • Page 21: Using The Compaq Projector Display Assistant Utility

    Using the Compaq Projector Display Assistant Utility The Compaq Projector Display Assistant utility included on the CD-ROM is an adjustment tool for improving the display quality of the projector. Adjustments need to be made when the projector is first attached to a computer or when a different display mode is selected for the first time.
  • Page 22: Using The Projector

    Chapter 2 Using the Projector Identifying the Projector Buttons Using the Projector...
  • Page 23 IMPORTANT: To use standby mode, press the and, after a six to ten-second delay, the unit enters Standby mode and the projector lamp turns off. A “Going to Standby” message appears on the screen for the duration of the six to ten-second delay.
  • Page 24: Introducing The Analog On-Screen Menu

    (Color temperature) Custom Color Saturation Save and Return Cancel Clock Digital Clock Phase Conversion Save and Return Cancel Using the Projector button. Select Menu Level 3 Adjustment scale Adjustment scale Adjustment scale Adjustment scale Adjustment scale Adjustment scale Adjustment scale...
  • Page 25 Lamp Hours Reset Lamp Hours Flip Image Serial Number Master Reset Save and Return Cancel Confirm Reset Factory Reset Exit Using the Projector Menu Level 3 Adjustment scale Adjustment scale YPrPb YPrPb On-Off Display hours - 5 digits Confirmation Horizontal...
  • Page 26 — until is highlighted, then press the Position display the level 2 menu for expanded menu items. Using the Projector button – on the projector panel or the remote Minus function, press the Position . The level 2 menu displays Position (-) button —...
  • Page 27 Zoom—Magnifies an image up to a factor of 32 on the projection screen (zooms in to a specific area on the screen, and pans left, right, up, and down). Using the Projector functions display the adjustment scales. button to decrease and the...
  • Page 28 Select another language to display all menu functions in that language. Menu Location—Positions the on-screen menu at a convenient location on the projector screen; positions the menu up or down, left or right. HDTV Setup—Allows the user to stretch the format to fill the screen or to use the original aspect ratio and fill the screen, using HDTV (High Definition Television) format.
  • Page 29 Special on-screen messages will appear on the projection display to identify the following conditions: Check Video Cable: Indicates the video cable may not be plugged into the projector or the selected video input is not accurate. Input Signal Out of Range—Indicates the projector is unable to access the appropriate input signal.
  • Page 30 If HDTV is connected, HDTV is the default setting. Press the HDTV (Optional Use) The Compaq Microportable Projector is capable of displaying various High Definition TV display modes. The Multimedia Adapter is not required to take advantage of this functionality.
  • Page 31 When displaying HDTV content, it is recommended that you display it in its native 16:9 widescreen mode. For this, you may need to select the HDTV Fill to Aspect Ratio mode on the projector to preserve the height-to-width relationship of the material. Note...
  • Page 32: Using The Compaq Multimedia Adapter

    Using the Compaq Multimedia Adapter The Compaq Multimedia Adapter (optional use) is specifically designed to fit the Compaq Microportable Projector. This adapter enables signals from camcorders, DVD players, or videocassette recorders to be shown through the projector. To connect the...
  • Page 33 Release buttons Speaker − Volume Source button Computer LED Video/RCA port Audio-in jack Using the Compaq Multimedia Adapter Function Interprets signals received from the remote control Increases volume When lit, indicates video input Connects camcorders or DVD players Connects back to the computer...
  • Page 34 2. Insert the adapter plug into the digital connector of the projector. ✎ When the adapter is activated, one of the LEDs the Multimedia Adapter turns green. Using the Compaq Multimedia Adapter on the back...
  • Page 35 3. Press the Source different input sources. The Compaq Multimedia Adapter can remain attached to the projector, or it can be removed and stored in the carrying case. Using the Compaq Multimedia Adapter button š on the Multimedia Adapter to select...
  • Page 36: Connecting A Video Player

    TV tuner, videocassette recorder, or camera. With the Compaq Multimedia Adapter attached, the projector is compatible with major video standards such as NTSC, PAL, and SECAM. Use the on-screen menu to adjust the video performance...
  • Page 37: Video On-Screen Menu Adjustments

    Video On-Screen Menu Adjustments When the Multimedia Adapter is attached to the projector and the video source is selected, an alternate video on-screen menu can be displayed on the projected screen. This menu includes some selections that are relevant to the functions of the Multimedia Adapter.
  • Page 38 Sharpness-adjusts screen image sharpness. Audio-adjusts the audio controls for the Multimedia Adapter speaker. Source-selects between composite, S-video, DVI, analog, and HDTV input. Using the Compaq Multimedia Adapter Video Menu Level 3 On - Off Adjustment scale Adjustment scale Adjustment scale...
  • Page 39: Using The Remote Control

    “Powering On the Projector.” ✎ The remote control operates only when the Compaq Multimedia Adapter is connected to the projector. WARNING: To reduce the risk of injury to the eyes, do not look directly into the remote control laser light and do not point the laser light into anyone’s eyes.
  • Page 40 Glows green when the remote control is operating Controls the on-screen cursor and alternate left-mouse functions Turns the projector on and off OR powers the projector into and out of Standby mode Selects the input source Scrolls projected image up...
  • Page 41 Controls right mouse functions Scrolls projected image down Mutes or silences the speaker on the Multimedia Adapter Increases speaker volume Decreases speaker volume Resynchronizes the projector with the input source Adjusts the video on-screen menu up Adjusts the video on-screen menu down...
  • Page 42 The remote control performs the following functions: Duplicates the functions of the projector buttons including adjusting the on-screen buttons. Controls the computer connected to the projector by navigating through the computer directories and opening and closing files. IMPORTANT: To operate a computer using the remote control, the remote control Y-cable (included with the Multimedia Adapter) must be used.
  • Page 43 ✎ Microsoft Windows 95 (OSR Version 2.1), Windows 98, and Windows 2000 support USB connection. Microsoft Windows NT does not currently support USB connection. Using the Remote Control...
  • Page 44: Care And Maintenance

    Chapter 5 Care and Maintenance This section explains how to care for and maintain your Compaq projector during normal everyday use. Protecting the Projector To protect your projector from overheating and other types of damage, follow these suggestions: Use only a power source and connection appropriate for this projector as indicated on the marking label.
  • Page 45: Cleaning The Lens

    Adjust only those controls that are covered by the operating instructions. If the projector is not operating properly or has been dropped or damaged, contact your Compaq authorized dealer, reseller, or service provider. Cleaning the Lens To minimize the risk of damaging or scratching the lens surface, this cleaning procedure has been developed.
  • Page 46: Replacing The Projector Lamp Module

    Replacement Suggested” displays on the projection screen, you should change the lamp as soon as possible. Contact your local Compaq authorized dealer, seller, or reseller to purchase a spare lamp or have the lamp changed. You can also purchase a lamp directly through www.compaq.com...
  • Page 47 Follow these steps to replace the projector lamp module: Turn off the power to the projector by pressing the blue Standby button –. 2. Allow the projector to cool down for at least 30 minutes. WARNING: The lamp assembly operates at a very high temperature.
  • Page 48 4. Use a coin to loosen the screw ˜ on the lamp module. 5. On the front of the lamp module, slide up the release latch ™ to disengage it from the projector base. 6. Pull out the lamp module WARNING: To reduce the risk of personal injury, do not drop the lamp module or touch the glass bulb.
  • Page 49: Troubleshooting

    Press the Resync button. Turn everything off; then power on the projector first and power on the portable or desktop computer second. If the above steps do not correct the display image, adjust the resolution of the portable or desktop computer to 1024 ×...
  • Page 50 Monitors. Press the Resync button on the projector panel to adjust the tracking. If that does not stop the flickering, adjust the Clock Phase function in the analog on-screen menu.
  • Page 51 Image is out of focus Projected colors do not match computer or camcorder color Black or gray border visible outside the usable area of the projection screen Only the Compaq startup screen displays Troubleshooting Solution Adjust the Focus Ring on the projection lens.
  • Page 52 If this happens, the projector will not turn back on until the lamp module has been replaced. Contact your local Compaq authorized dealer, seller, or reseller to purchase a replacement lamp module. To replace the lamp, follow the procedures in the "Replacing the Projector Lamp...
  • Page 53 Refer to Appendix B “Flash ROM Upgrade” for more information. If this does not resolve the problem, contact your Compaq authorized service provider or call Compaq Customer Support for help. Refer to the “Worldwide Telephone Numbers” booklet included in the projector documentation kit for a complete list of customer support numbers to call.
  • Page 54: Agency Regulatory Notices

    Modifications The FCC requires the user to be notified that if any changes or modifications are made to this device, not expressly approved by Compaq Computer Corporation, this may void the user’s authority to operate the equipment. Agency Regulatory Notices...
  • Page 55: Declaration Of Conformity For Products Marked With The Fcc Logo, United States Only

    For questions regarding your product, contact: Compaq Computer Corporation P.O. Box 692000, Mail Stop 530113 Houston, Texas 77269-2000 Or, call 1-800-652-6672 (1-800-OK COMPAQ) For questions regarding this FCC declaration, contact: Compaq Computer Corporation P.O. Box 692000, Mail Stop 510101 Houston, Texas 77269-2000...
  • Page 56: European Notice

    100-120V or 200-240V. The power cord set (flexible cord or wall plug) received with the projector meets the requirements for use in the country where you purchased the equipment. If you need to obtain a power cord for a different country, you should purchase a power cord that is approved for use in that country.
  • Page 57 6 feet (1.8 m) and 12 feet (3.6 m). If you have questions about the type of power cord to use, contact your Compaq authorized service provider. A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against it.
  • Page 58: Flash Rom Upgrade

    Flash ROM Upgrade The Compaq Microportable Projector can be upgraded by flashing the ROM (Read Only Memory) resident on the projector. This will be available from Compaq in the future only if necessary. NOTE: Before attempting these steps, make sure the projector is turned off.
  • Page 59 RS232 (serial) connector on the computer. 2. Power on the computer and monitor only (if applicable). 3. Access the Compaq website at: http://www.compaq.com 4. Follow the steps outlined on the website. 5. Power on the projector.
  • Page 60: Specifications

    Operating Non-Operating Power Source Power Consumption Input Terminal Specifications Compaq Microportable Projector XGA 1024 × 768 × 1 130 watt High Brightness Lamp See the Image Size Adjustment table. 1,500 hours 4.92 to 32.8 feet (1.14 to 10 meters) 3.0 lbs (without cables) 2.5 in (w) ×...
  • Page 61: Preset Display Resolutions Table

    Preset Display Resolutions Table This projector automatically recognizes the preset display resolutions listed in the following table. Preset Modes 1. Industry Standard 2. VESA Standard 3. Industry Standard 4. VESA Standard 5. VESA Standard 6. Industry Standard 7. VESA Standard 8.
