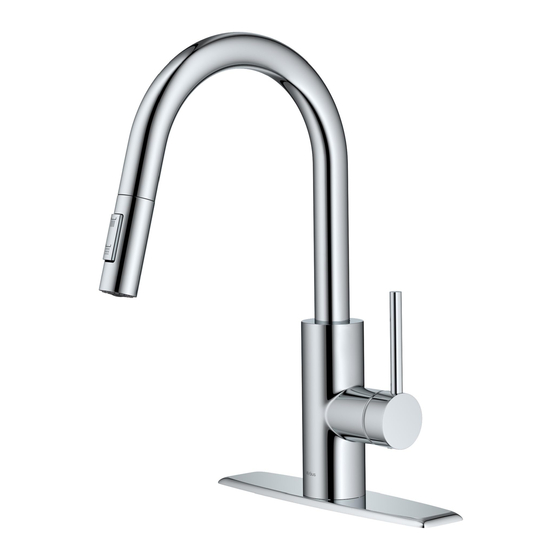

- Page 1 INSTALLATION GUIDE Oletto™ Single Handle Kitchen Faucet KPF- 2620 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2022 Kraus USA Plumbing LLC I REV. Jul 18, 2022...
- Page 2 Congratulations on the purchase of your new Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com Have the model number available, and retain a copy of your receipt...
-
Page 3: Prior To Installation
Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775- 0703 for a replacement • to release any built-up pressure •... - Page 4 Diagram and Parts List G. Weight Clip A. Spray Head H. Quick Connector B. Faucet Body I. 2.5mm Hex Wrench C. Escutcheon D. Gasket J. 6mm Hex Wrench E. Easy Install Assembly F. Weight...
- Page 5 Faucet Dimension 10 5/8'' 10 1/2'' [269.7mm] [265.2mm] 10 1/8'' 8 7/8'' 8 7/8'' [258.8mm] [224.6mm] [224.6mm] 2 1/2'' Ø2 1/8'' [62.9mm] [53.0mm] 3/8”-compression Installer Tip:...
- Page 6 Step 1a: Installing the easy install assembly (Without escutcheon) Shut o the water supply. Remove the old faucet. Clean the mounting surface. Check for the proper thickness of the sink. Insert the base (a) into sink. If your model does have a escutcheon, skip to step 1 b. NOTE : “Front”...
- Page 7 Step 2: Installing the easy install assembly Fig 1 Fig 2 Fig 4 Fig 3 Press the base (a) and escutcheon (C) so that they can not move, then turn the screws with the provided hex wrench (J, HEX: 6.0mm) clockwise, as shown Fig 1. When the mounting plates (b) make contact with the sink (1), continue to turn the screw with the provided hex wrench (J, HEX: 6.0mm) clockwise, as shown Fig 2, until the base (a) is completely tightened and secured, as shown Fig.4.
-
Page 8: Step 3: Installing The Faucet
Step 3: Installing the faucet Insert the hose (1)、supply lines (2) and quick connect hose (3) one by one through the hole of the base (a). Carefully insert the hoses into the base. Place the faucet assembly onto the base (a) as shown in the above gure. Secure the faucet assembly (B) by tightening the set screw with the provided hex wrench (I, Hex: 2.5 mm). - Page 9 Step 4: Securing the faucet assembly Install the weight clip (G) at the point of the hose marking "weight here". Insert the weight (F) onto the weight clip (G) by sliding it down onto the weight clip (G). Step 5: Connect waterlines to main valve Attach waterlines to angle stops and tighten until snug.
- Page 10 Step 6: Flush faucet Pull the hose assembly out of the spout and remove the spray head (A) by unscrewing it from the hose in a counterclockwise direction. Be sure to hold the end of the hose down into the sink and turn the faucet on to the warm position where it mixes hot and cold water.
-
Page 11: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # BB, CH, SFS, MB, 1. Spray Head KP27296 SFACB* 2. Washer KP27208 BLBB, GRCH, 3. Spray Hose KP27290 GRSFS, BLMB, BLSFACB* 4. Quick connector assembly KP27090 5. O-Ring KP27210 6. Inverter KP27211 7. -
Page 12: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following coorective steps: P R O B L E M C A U S E A C T I O N Leakage under the Bonnet nut (9) has Remove the cover button (12). - Page 13 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 14 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
- Page 15 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
