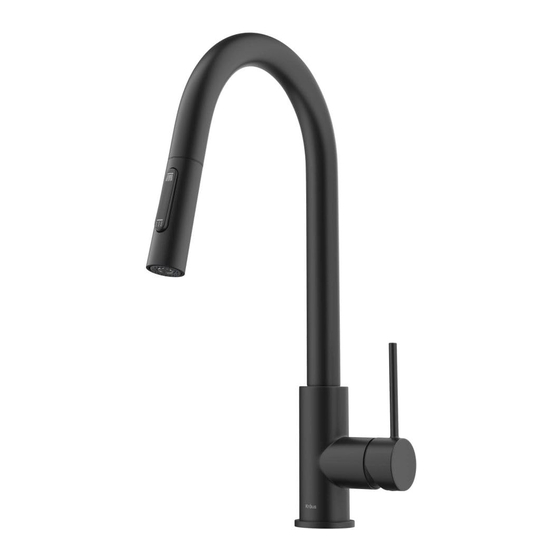

- Page 1 INSTALLATION MANUAL Oletto Pull Down Kitchen Faucet KPF-3104 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2022 Kraus USA Plumbing LLC I REV. April 11, 2022...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Prior to Installation: · Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. · Read all instructions and safety warnings and ensure you have all tools, parts, and equipment necessary for a safe installation. - Page 4 1. Rubber & Metal Washer 2. Mounting Nut 3. Mounting Screws C. Weight D. Hex Key Base Seat Assembly For technical assistance or replacement parts, please contact Kraus Customer Service and one of our representatives will be happy to help: Toll-Free: 800-775-0703 or Customerservice@kraususa.com...
- Page 5 Faucet Dimension 4 1/8" (104mm) 10 3/4" (272mm) 3 1/2" (90mm) 9" (230mm) 3/8" Compression Installer Tip: Shut off main water supply before installing new faucet.
- Page 6 Step 1. Installing the faucet assembly Insert all the hoses through the Base Seat Assembly (E). Insert the faucet body through the hole in the sink or countertop. Step 2. Securing the faucet assembly Install the rubber washer and metal washer (B1) onto the threaded mounting shank.
- Page 7 Step 3. Securing the faucet assembly Push the quick connector (1) firmly upward and attach it to the receiving block (2). Pull down moderately to ensure the connection has been made. Step 4. Attach the counterweight Install the weight (C) on the marked area of the spray hose.
- Page 8 Step 5. Making the waterline connections Thread the nut (1) on the supply line onto the outlet of the water supply valve and tighten with a wrench. Do not overtighten. NOTE: Please make sure filter washers are installed before connecting to the main valve. Step 6.
-
Page 9: Replacement Parts
Replacement Parts Replacement Parts List Finish/Color Part # 1. Sprayer Head KP46002 CH,SFS,MB,BG* 2. Check Valve KP46025 3. Sprayer Hose KP46001 CH,SFS,MB,BG* KP46022 4. Handle Assembly CH,SFS,MB,BG* 5. Cartridge Cover KP46015 CH,SFS,MB,BG* KP46013 6. Locking Nut 7. Cartridge KP46012 8. Base Seat Assembly KP46021 CH,SFS,MB,BG* 9. -
Page 10: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under faucet handle Locking nut has come loose or Remove button located at top of handle. cartridge needs to be reseated. - Page 11 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 12 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 13 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
