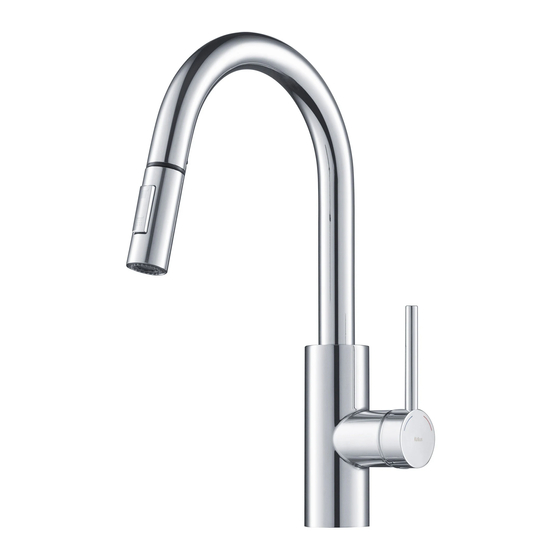

Kraus Oletto KPF-2620 Instruction Manual

Single lever pull down kitchen faucet
Hide thumbs Also See for Oletto KPF-2620:

Advertisement

Quick Links

Download this manual
I N S TA L L AT I O N MA N UA L
Oletto
Single Lever Pull Down
™
Kitchen Faucet
KPF-2620
www.kraususa.com I toll free: 1.800.775.0703 I © 2014-2015 Kraus USA Inc. I REV. March 30, 2017

Advertisement

loading

Related Manuals for Kraus Oletto KPF-2620

Summary of Contents for Kraus Oletto KPF-2620

  • Page 1 I N S TA L L AT I O N MA N UA L Oletto Single Lever Pull Down ™ Kitchen Faucet KPF-2620 www.kraususa.com I toll free: 1.800.775.0703 I © 2014-2015 Kraus USA Inc. I REV. March 30, 2017...
  • Page 2 Thank you for your purchase We would like to take this opportunity to thank you for choosing Kraus. We hope that you are completely satisfied with your purchase, and enjoy it for years to come. If you have any questions, or require technical assistance, please contact us at 800.775.0703 and one of our representatives will be happy to help.
  • Page 3 8 5/16” • Make sure you have all necessary parts by checking the diagram and parts list. If (257mm) (21mm) any part is missing or damaged, please contact Kraus Customer Service at 800- 1 15/16” ∅ 775-0703 for a replacement 50mm) 1 3/8”...
  • Page 4 Diagram and Parts List A. Spray Head B. Faucet Body C. Deck & Putty Plate D. Base E. Spray Hose F. Supply Hose G. Hot & Cold Waterlines H. Weight I. Quick Connect J. Hex Wrench Set J1. 2.5mm J2. 4mm...

  • Page 5: Faucet Dimensions

    Faucet Dimensions 10-1/2” 10-1/4” (267mm) (260mm) 8-3/4 (221mm) 4-1/4” (109mm) º 2-1/2” (62mm) Check Value 9/16-24 UNEF (3/8” Compression)
  • Page 6 Step 1A: Install base without deck & putty plate Insert base (D) into sink or countertop with “FR↑NT” facing forward. Tighten screws on base (D) with 4mm hex wrench (J) until base is secure on sink or countertop Installer Tip: Rotate the two half-moon shaped Half locking nuts inward before...
  • Page 7 Step 1B: Install base with deck & putty plate Place a bead of clear silicone sealant (not included) around the edge of the putty plate (C). Secure deck & putty plate (C) on sink or countertop. Insert base (D) into hole of deck &...

  • Page 8: Step 2: Install Faucet

    Step 2: Install faucet Remove Quick Connect (I) from spray hose (E). Insert spray hose (E) into small hole of base (D). Insert hot & cold waterlines and supply hose (F), one by one, in large hole of base Step 3: Secure faucet Align arrow on faucet body (B) with arrow on base (D).
  • Page 9 Step 4: Connect waterlines to main valve Thread hot & cold waterlines (G) onto angle stops. Tighten with adjustable wrench until snug. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON) Installer Tip: Use two wrenches when securing waterlines to angle stops to Cold...
  • Page 10 Cold Step 6: Install weight Attach weight (H) on the designated mark on the spray Cold hose (E) Designated Mark Step 7: Flush faucet Remove spray head (A). Hold tip of spray hose (E). Turn faucet on for 1 minute to flush any debris. Reconnect spray head (A)

  • Page 11: Replacement Part List

    Replacement Part List 1. A Index Button B Set Screw 2. Metal Handle 3. Cartridge Cover 4. Locking Nut 5. Cartridge 6. Spray Head 7. Set Screw 8. Quick Connect Assembly 9. Spray Hose 10. Weight 11. Cover & Putty Plate 12.

  • Page 12: Troubleshooting

    Trouble - Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leaking from spray Quick Connect (8) may Remove Quick Connect...

  • Page 13: Care And Maintenance

    Do not clean with soaps, acid, polish, abrasives, or harsh cleaners Do not use cloth with a coarse surface Unscrew the aerator and clean when necessary *This installation manual is subject to change without further notice. Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance...
  • Page 14 Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
  • Page 15 www.kraususa.com...
  • Page 16 Please take a moment to share your experience. Visit http://www.kraususa.com/review to let us know what you think about your new Kraus product. Contact Us to Learn More 1.800.775.0703 / www.kraususa.com / customerservice@kraususa.com Like & Follow KrausUSA Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance www.kraususa.com...
  • Page 17 I N S TA L L AT I O N MA N UA L Handmade Stainless Steel Undermount Sink KHU100-30 / KHU100-32 / KHU101-23 / KHU102-33 / KHU103-33 / KHU104-33 / KHU105-32 / KHU121-23 / KHU122-23 / KHU123-32 www.kraususa.com I toll free: 1.800.775.0703 I © 2016 Kraus USA Inc.
  • Page 18 Thank you for your purchase We would like to take this opportunity to thank you for choosing Kraus. We hope that you are completely satisfied with your purchase, and enjoy it for years to come. If you have any questions, or require technical assistance, please contact us at 800.775.0703 and one of our representatives will be happy to help.
  • Page 19 Toll-Free: 800-775-0703 or Customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional.

  • Page 20: Tools You Will Need

    Phillips Screwdriver Putty Knife Tape Measure Pencil Screwdriver NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Undermount sinks with countertop materials other than wood, marble, or granite Parts List • Cut-Out Template • Mounting Hardware • Bottom Grids...
  • Page 21 Dimensions 28” 711mm 30” 30” 762mm 762mm 32” 813mm KHU100-30 KHU100-32 30” x 18” x 10” 32” x 17” x 10” Min Cabinet Size: 33” Min Cabinet Size: 36” Matching Grid: KBG-100-30 Matching Grid: KBG-100-32 KHU102-33 Drain Model #: BST-1 Drain Model #: BST-1 21”...
  • Page 22 Dimensions KHU105-32 KHU104-33 KHU103-33 12-7/8” 16-7/8” 12-7/8” 16-7/8” 327mm 429mm 327mm 429mm 14” 13-1/2” 32-3/4” 32-3/4” 356mm 832mm 343mm 832mm 30-1/2” 775mm KHU103-33 KHU104-33 KHU105-32 32 3/4” x 19” x 10” 32 3/4” x 19” x 10” 30 1/2” x 18” x 10” Min Cabinet Size: 36”...
  • Page 23 (Negative, Positive, or Flushed Reveal) 3/8“ Positive Reveal 3/8“ Positive Reveal 3/8“ Positive Reveal Zero Reveal Flushed/Zero Reveal Flushed/Zero Reveal Flushed/Zero Reveal 1/8“ Negative Reveal ative Reveal KRAUS Recommended Installation Type 1/8“ Negative Reveal 3/8”POSITIV 3/8”POSITIVE 1/8“ Negative Reveal 3/8”POSITIV 1/8”NEGATI 3/8”POSITIV 1/8”NEGATIVE 1/8”NEGATI FLUSHED/ZERO 1/8”NEGATI...
  • Page 24 Step1 2. Position Template • Check the cut-out template against the actual sink to ensure a proper sized cut-out • Place the cut-out template in the desired location on the countertop NOTE: Make sure clearance is suitable for backsplash, faucet, and plumbing for the sink...
  • Page 25 3. Trace Template • Trace template on countertop with a pencil...
  • Page 26 4. Cut Countertop • Cut the opening in the countertop by carefully following the traced line Step3 Please use the appropriate saw that best fits your countertop NOTE: material...
  • Page 27 Determine location for mounting brackets; space 5. Set up Mounting Brackets 3/8”POSITIVE 1/8”NEGATIVE • Turn countertop over and align sink with countertop. Decide location for mounting brackets Centerline • Mounting holes should be ½” from edge of sink Step5 Step6 1/2"...
  • Page 28 Step6 7. Install Anchors • Insert anchors into drilled holes and lightly tap with a hammer until flush Step7 8. Secure Sink to Countertop • Use a bead of silicone (or preferred adhesive) around the rim of the sink. Check the alignment of the sink to the cutout in the countertop. Place sink over cutout hole and press firmly...

  • Page 29: Attach Mounting Hardware

    9. Attach Mounting Hardware • Attach mounting hardware to secure bowl. Remove excess sealant from inside lip Step8 • Allow sealant to set for 30 – 60 minutes Use acetone or rubbing alcohol to remove any excess sealant NOTE:...
  • Page 30 10. Install Plumbing Fixtures • Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer’s instructions • Run water into sink and check for leaks...
  • Page 31 Our customer service hours are Monday – Friday, 9am – 8pm EST. Be sure to visit our website at www.kraususa.com If you are a HOMEOWNER please contact a Kraus Customer Service Representative at: Kraus USA, Inc. 12 Harbor Park Drive...
  • Page 32 Please take a moment to share your experience. Visit http://www.kraususa.com/review to let us know what you think about your new Kraus product. Contact Us to Learn More 1.800.775.0703 / www.kraususa.com / customerservice@kraususa.com Like & Follow KrausUSA Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance www.kraususa.com...
  • Page 33 I N S TA L L AT I O N MA N UA L Soap Dispensers KSD-30 KSD-33 KSD-35 KSD-41 KSD-42 SD-20 SD-25 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2014-2015 Kraus USA Inc. I REV. August 16, 2016...
  • Page 34 Thank you for your purchase We would like to take this opportunity to thank you for choosing Kraus. We hope that you are completely satisfied with your purchase, and enjoy it for years to come. If you have any questions, or require technical assistance, please contact us at 800.775.0703 and one of our representatives will be happy to help.
  • Page 35 Toll-Free: 800.775.0703 or Customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional.
  • Page 36 GDA-1 Diagram and Parts List: a. Pump b. Dispenser Base c. Rubber Washer A d. Rubber Washer B e. Mounting Nut f. Dispenser Bottle TOOLS REQUIRED: *Adjustable Wrench...
  • Page 37 Step 1 Disassemble soap dispenser...
  • Page 38 Step 2 Install dispenser base (b) with rubber washer A (c) attached into the hole in the countertop. Re-install rubber washer B (d) and mounting nut (e) on the dispenser base (b) from underneath the countertop. Tighten mounting nut (e) with adjustable wrench until snug...
  • Page 39 Step 3 Screw the dispenser bottle (f ) to the dispenser base (b) from underneath the countertop. Tighten as required. Fill the dispenser bottle (f ) from the top with 12 ounces of soap...
  • Page 40 Step 4 Insert pump (a) into dispenser base (b) from the top. Press the pump several times to make sure soap is evenly distributed Press...
  • Page 41 Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a PLUMBING CONTRACTOR OR TRADE PROFESSIONAL please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
