2. Set the address on the module per job drawings.
3. Secure module to electrical box (supplied by installer), as shown in
Figure 2A.
IMPORTANT: When using the M500SAP for fire fighter telephone applica-
tions, remove Jumper (J1) and discard. The Jumper is located on the back as
shown in figure 1B. The module does not provide ring back when used as a
fire fighter telephone circuit.
FIGURE 3. TYPICAL NOTIFICATION APPLIANCE CIRCUIT CONFIGURATION, NFPA CLASS B
24 VDC POWER SUPPLY
ISOLATED, REGULATED,
POWER LIMITED PER NFPA 70.
LISTED FOR FIRE PROTECTION
WITH BATTERY BACKUP.
MODULE POLARITIES ARE
47K EOL
RESISTOR
ELR-47K
UL LISTED EOL RELAY
SHOWN ENERGIZED
24 VDC COIL EOLR-1
24 VDC CIRCUIT
DO NOT LOOP WIRE ON TERMINALS 10 & 11. BREAK WIRE
RUN TO PROVIDE SUPERVISION OF CONNECTIONS.
(−)
) ( +
SHOWN IN ALARM
(−) (−)
) ( +
) ( +
TO NEXT CONTROL MODULE OR END-OF-LINE
RELAY. ONE RELAY REQUIRED FOR EACH
CIRCUIT. SOME CONTROL PANELS HAVE RELAY
BUILT IN AND DO NOT REQUIRE EXTERNAL
WIRING. REFER TO PANEL MANUAL.

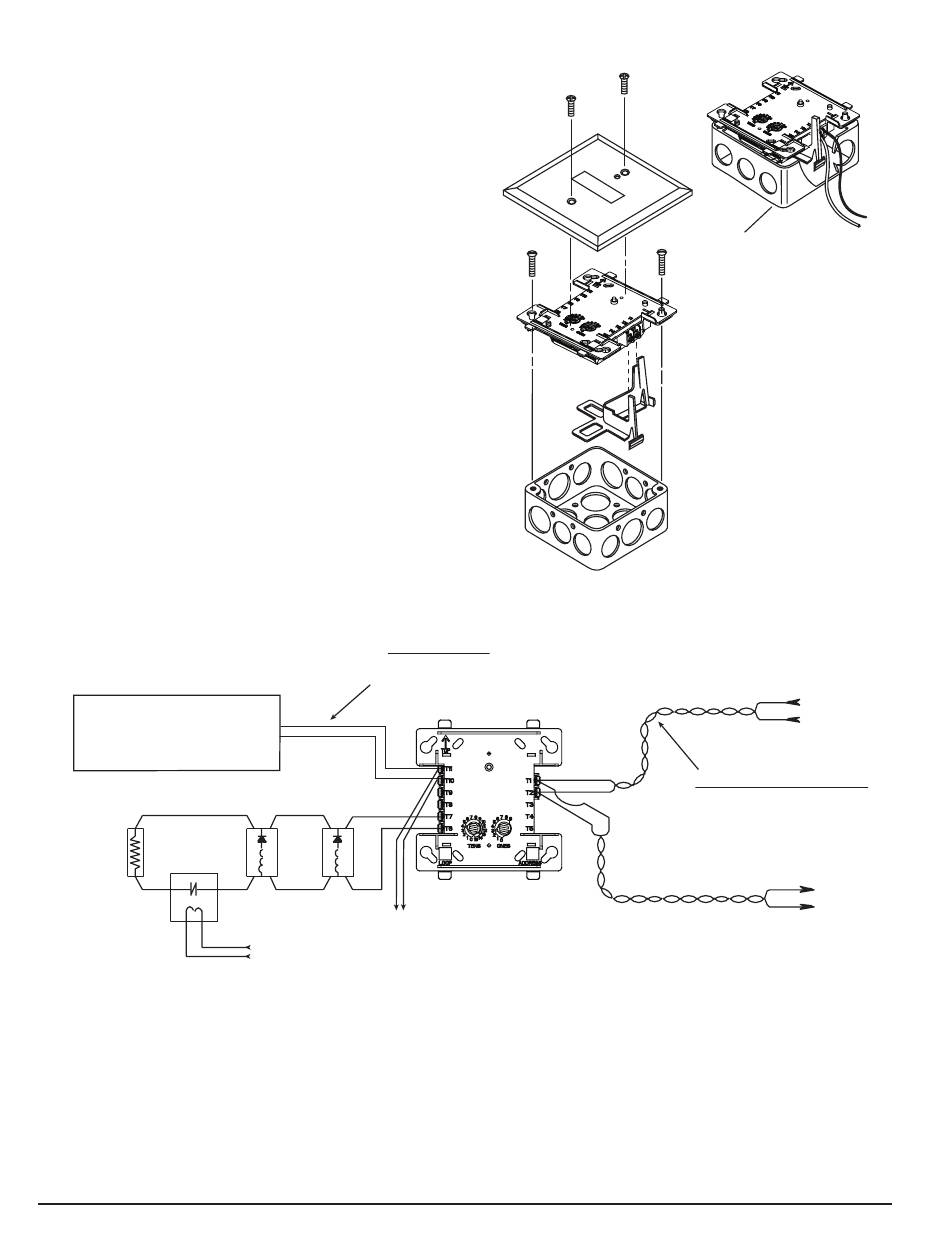

FIGURE 2A. MODULE MOUNTING
WITH BARRIER
CONTROL
MODULE
(−)
) ( +
ALL WIRING SHOWN IS SUPERVISED
*NOTE: ANY FAULT IN THE POWER SUPPLY IS
LIMITED TO THAT ZONE AND DOES NOT
RESULT IN A FAULT IN A SEPARATE ZONE.
2
FIGURE 2B.
ISOLATED
QUADRANT
C1050-00
CONNECT MODULES TO
LISTED COMPATIBLE
CONTROL PANELS ONLY
(−)
FROM
PANEL OR
) ( +
PREVIOUS
DEVICE
SIGNAL LINE CIRCUIT (SLC)
32 VDC MAX.
TWISTED PAIR
IS RECOMMENDED
AND POWER LIMITED
(−)
TO NEXT
(+)
DEVICE
C0913-07
