Extron electronics VN-MATRIX Quick Start Manual page 2

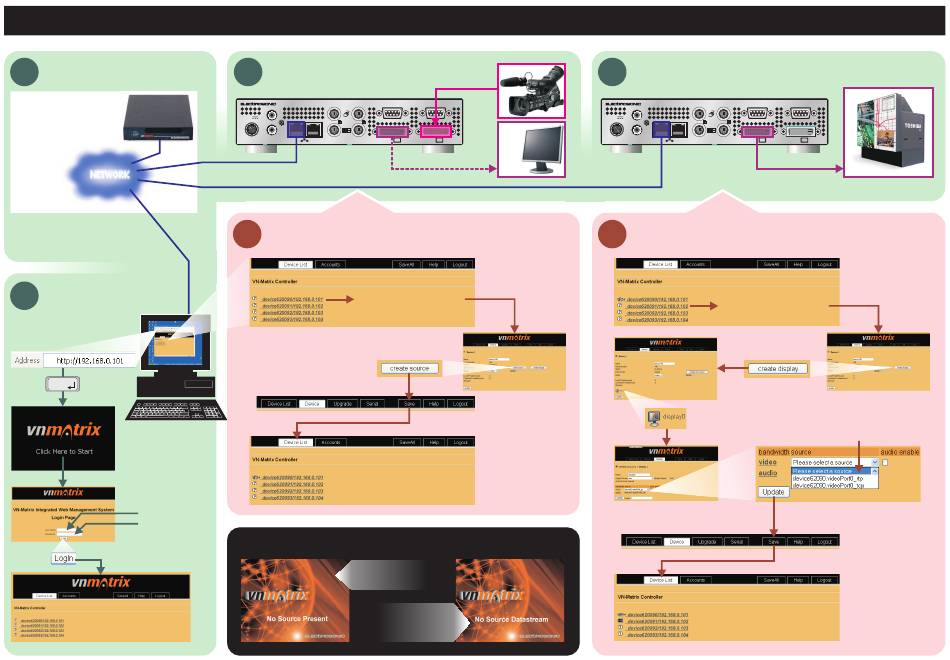

System Connections & Setup
5
Connect to Network
Reboot each VN-MATRIX
once it is connected to
the network
NETWORK
Control computer must be
on the same subnet as
the VN-MATRIX units
8
Run Web Interface
Type the Controller IP into
a web browser address bar...
enter
admin
admin
6
Connect a Source (Encoder)
ES3401 www.electrosonic.com COM 1
IN
12V DC
REG
OUT
DIGITAL
6A MAX I II PERIPH PC OUT DVI-I
AUDIO
IP Address:
192.168.0.101 local monitor (optional)
9
Configure VN-MATRIX as an Encoder
click on a device to setup
Local Monitor and Display Messages
Device is configured as an
but either no source is connected or
is not compatible with VN-MATRIX.
Device is configured as a
but either no display source is
currently selected, or the chosen
source Encoder is not streaming.
COM 2
IN DVI-I
10
Encoder
Decoder
7
Connect a Display (Decoder)
ES3401 www.electrosonic.com COM 1
IN
12V DC
REG
OUT
DIGITAL
6A MAX I II PERIPH PC OUT DVI-I
AUDIO
IP Address:
192.168.0.102
Configure VN-MATRIX as a Decoder
click on a device to setup
COM 2
IN DVI-I
rtp
choose ' ' for Unicast RTP or
tcp
' ' for Unicast TCP streaming
