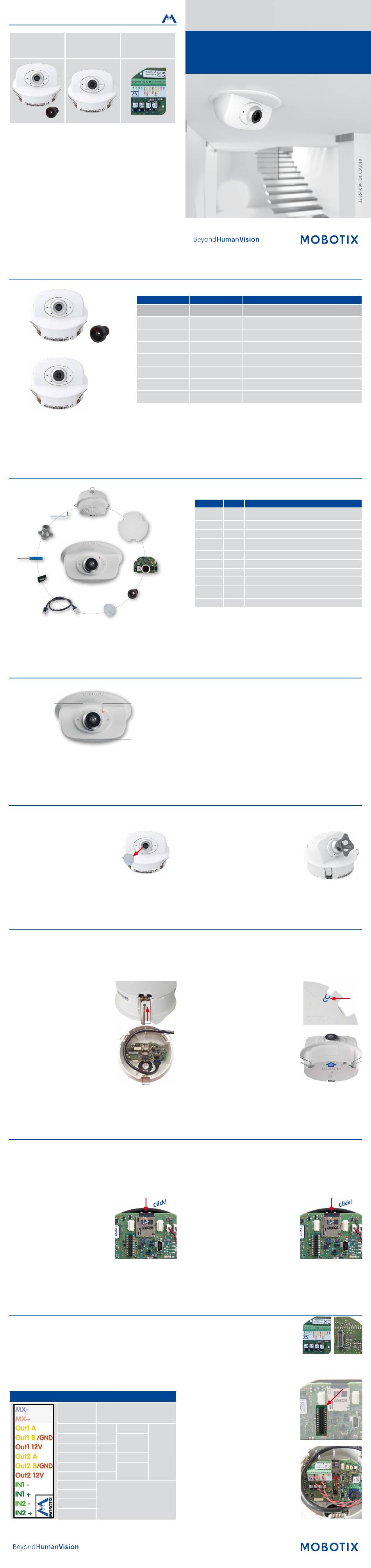

Mobotix p26 Indoor PT Series Quick Install

Variants/Accessories

Mx-p26A/B* camera body
Mx-p26A/B* camera,
and lenses; B036 to B237
lens B016-B237
for self-mounting
+
*Variant Mx-p26B supports MOBOTIX MxBus modules

Variants of the p26

p26 camera body and lenses B036-B237
for self-mounting
p26 camera,
lens B016 to B237

Standard Delivery

1.10
1.9
1.8
1.7
1.6

Connecting the p26

Power/Status
Microphone

Installing the Lens (Not for Hemispheric Variants with Lens B016)

The steps listed below are only required if the p26 has been ordered with separate lens for self-mounting (see «Variants of the p26»).
1. Remove the blind cover
Remove the blind cover that protects the image
sensor during shipping from the lens mount.
This should be done in a relatively dust-free
environment.

Removing/Installing the Back Cover

The steps listed below are only required if you need to access the inside of the camera housing.
nected before opening the housing!
Caution: In order to avoid damage from electrostatic discharge, you should touch a grounded device before opening the housing of the camera (e.g., the
blank metal at the back of a computer). This will remove any static electricity that may have built up.
1. Remove the cover
Insert a small screwdriver into one of the holes
at the side as shown in the figure and gently
press inward to release the lock. Repeat the
process for the two other locks and lift the
back cover from the housing.
2. Follow the procedures
Follow the procedures for the work inside the
housing as described in the sections listed
below:
• ➔ Inserting/Exchanging the SD Card
• ➔ Installing the Mx-A-IOA-IC

Inserting/Exchanging the SD Card

All camera models can use the integrated MicroSD card to record video data. In order to exchange the MicroSD card, please proceed as outlined in the
following instruction. For information on reliable SD cards, please see the MOBOTIX website www.mobotix.com > Support > Download Center > Docu-
mentation > White Lists in the document MicroSD Card Whitelist for MOBOTIX Cameras.
When replacing the SD card, make sure that recording has been deactivated in the browser (Admin Menu > Storage > Storage on External File Server /
Flash Device; activate recording again in the same dialog). Follow the instructions in section «Removing/Installing the Back Cover» to access the inside
of the camera and to close it again after inserting the SD card.
1. Remove the SD card
If a MicroSD card has been installed, gently
press with your finger as indicated by the arrow
until you hear a click. Then release the SD
card. The card is protruding slightly and can
be easily removed.

Installing the Mx-A-IOA-IC

For the Mx-p26A/B, you can use the optionally available Mx-A-IOA-IC to attach external sensors using the signal inputs and
to switch other devices via the signal outputs. When used with the the Mx-p26B, you can also attach MxBus devices (e.g., an
MX-GPS-Box). To facilitate the installation of the module, you should attach the connection wires before inserting the module.
Follow the instructions in section «Removing/Installing the Back Cover» to access the inside of the camera and to close it again
after inserting the module.
1. Attach the connection cables
Attach the connection cables as shown in the terminal connector overview.
Terminal Connectors
MxBus connectors
Output 1 A
Output 1 B/GND
Output 1 12 V
Output 2 A
Output 2 B/GND
Output 2 12 V
Input 1 –
Input 1 +
Input 2 –
Input 2 +
Mx-A-IOA-IC
for MxBus modules* and
signal inputs/outputs
Mx-p26A-6Day
+
(3072x2048)
Color
Mx-p26A/B-6D
Mx-p26A/B-AU-6D
Mx-p26A/B-6D016
Mx-p26A/B-AU-6D016
Mx-p26A/B-6D036
Mx-p26A/B-AU-6D036
Mx-p26A/B-6D061
Mx-p26A/B-6D079
Mx-p26A/B-6D119
Mx-p26A/B-6D237
1.1
1.2
1.3
1.4
1.5
Recording
Receptacle for
adjusting the
camera tilt
Screw for
locking the
camera tilt
MxBus functionality is only supported
by the camera variant Mx-p26B.
–
Relay
pot.-
free
Output 1
12 V
–
Outputs
–
Relay
pot.-
free
Output 2
12 V
–
Inputs
p26 Indoor PT
Quick Install
Mx-p26A-6Night
(3072x2048)
Variant
Black&White
Mx-p26A/B-6N p26 camera module with/without audio package, for lenses
Mx-p26A/B-AU-6N MX-B036 to MX-B237 (f/1.8, 103° bis 15°) for self-mounting
Mx-p26A/B-6N016 p26 with/without audio package with Fisheye lens MX-B016
Mx-p26A/B-AU-6N016 (f/2.0, 180° horiz. angle of view)
Mx-p26A/B-6N036 p26 with/without audio package with ultra-wide-angle lens
Mx-p26A/B-AU-6N036 MX-B036 (f/1.8, 103° horiz. angle of view)
p26without audio package with wide-angle lens MX-B061 (f/1.8,
self-mounting only
60° horiz. angle of view)
p26 without audio package with standard lens MX-B079 (f/1.8, 45°
self-mounting only
horiz. angle of view)
p26 without audio package with tele lens MX-B119
self-mounting only
(f/1.8, 31° horiz. angle of view)
p26 without audio package with distance tele lens MX-B237 (f/1.8,
self-mounting only
15° horiz. angle of view)
Item Count Part Name
Housing with spring clips and tiltable camera receptacle
1.1 1
(installed)
1.2 1 Back cover (installed)
1.3 1 Main board with lens mount (installed)
Lens (only installed in camera models listed in «Variants of
1.4 1
the p26»)
1.5 1 Blind cover (only when self-mounting the lens)
1.6 1 Ethernet patch cable, 50 cm/19.7 in, black (installed)
1.7 1 MicroSD card pre-installed (SDHC installed, SDXC supported)
1.8 1 Flat-head screwdriver, blue
Lens wrench gray (not with hemispheric variants with lens
1.9 1
B016)
1.10 1 Allen wrench 1.5 mm
You can find detailed information on the installation and connections of
the p26 in the M25 Camera Manual (PDF, available on www.mobotix.com >
Support > Download Center > Documentation > Manuals).
Regarding the initial operation of the p26, please see the M25 Camera Manual
in Chapter 3, «Initial Operation».
2. Install the lens
Screw the lens into the lens mount. Depending
on the physical length of the lens, you can
use your hand and then the gray lens wrench
(item 1.9). After initial operation of the camera,
remember to adjust the focus of the lens (see
«Initial Operation of the p26» on page 2).
Make sure the power supply to the camera is discon-
3. If required, enlarge the cable guide
If the cable guide is not large enough for addi-
tional cables, enlarge the guide accordingly.
Depending on the size required, break out either
one or two elements of the cable guide using
pliers (see blue markings in the figure).
4. Attach back cover
Insert the back cover, so that the large arrow
(highlighted blue in the figure) is positioned
in the viewing direction of the camera. Make
sure the cables and wires are guided properly
thought the cable guide, then carefully press
the back cover into the housing until it clicks
into place.
2. Insert the SD card
Insert the MicroSD card and gently press with
your finger as indicated by the arrow until you
hear another click.
Make sure that the SD card is fully inserted.
2. Insert the Mx-A-IOA-IC
Hold the Mx-A-IOA-IC with attached connection
wires over the receptacle on the main board
(red arrow in figure).
Use one finger to carefully press the board of
the module onto the receptacle. Make sure that
the green terminal connector block is pointing
upward (towards the SD card, see red arrow
in figure below).
Make sure that the Mx-A-IOA-IC is fully inserted.
Please also make sure that the connection
wires are guided through the housing without
tension and in a loop so that the cables do
not lift the module out of its receptacle when
adjusting the camera tilt (see figure).
