Using Your CD-ROM Drive
Operating the CD-ROM Drive

Unloading a CD-ROM Disc in a Vertically Mounted Drive

Perform the following steps to unload a disc from the CD-ROM drive:
Figure 14
1 Press the eject button to eject the disc tray from the drive. If the drive is in use,
NOTICE: You must unmount the disc before you eject it from the drive. Refer to the
subsection, "Unmounting a CD-ROM Disc Using SAM," for instruction on
unmounting a disc.
2 Press down gently against the spring tension of disc holders A and B and swing
3 Remove the disc from disc holders A and B.
4 To close the Disc Tray, push the front of the disc tray gently towards the drive
34

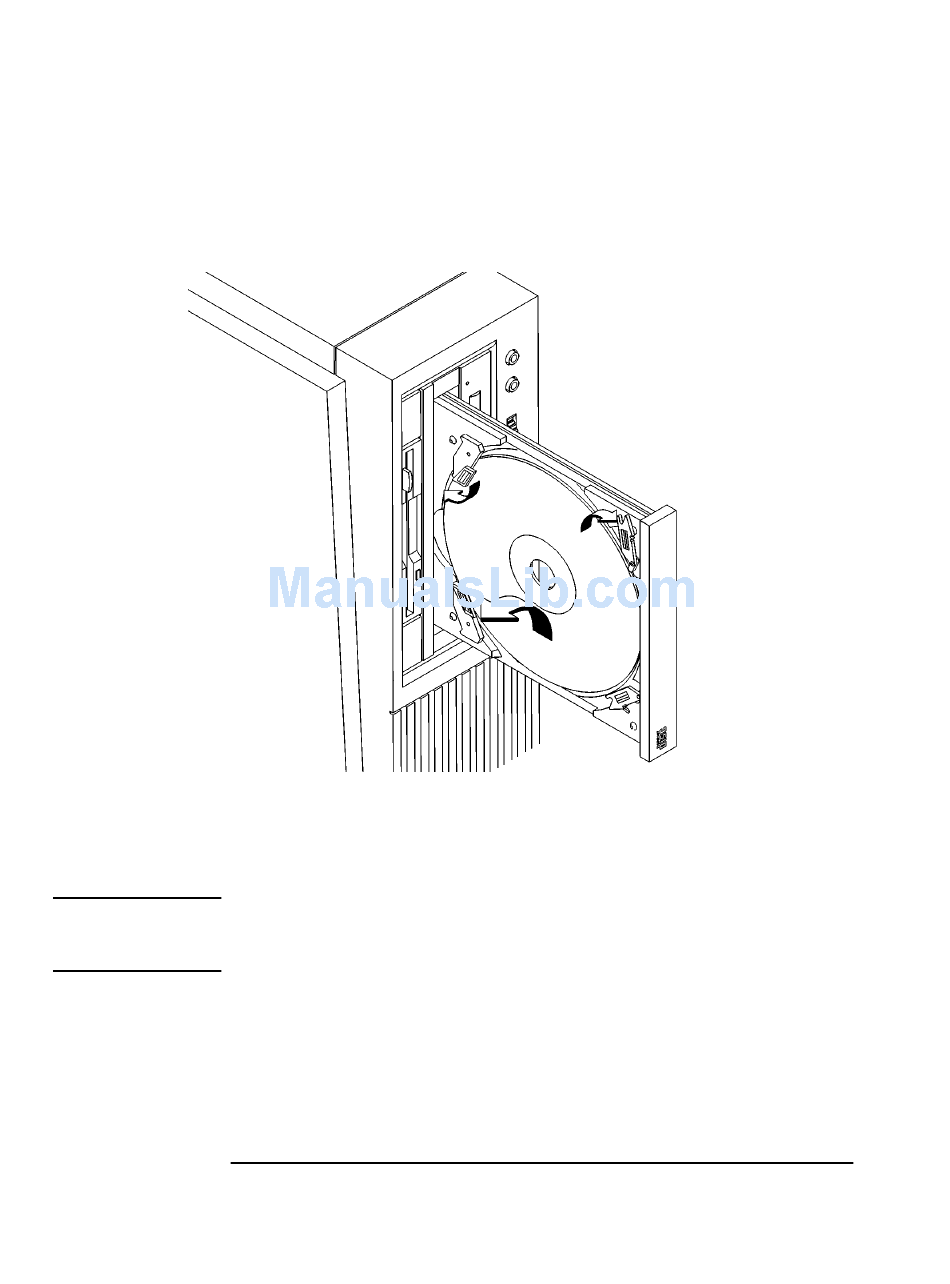

Removing a CD-ROM Disc From a Vertically Mounted Drive
you must press the eject button for more than one second to eject the disc tray.
the top of the disc away from disc holders C and D as shown in Figure 14.
until it closes by itself.
