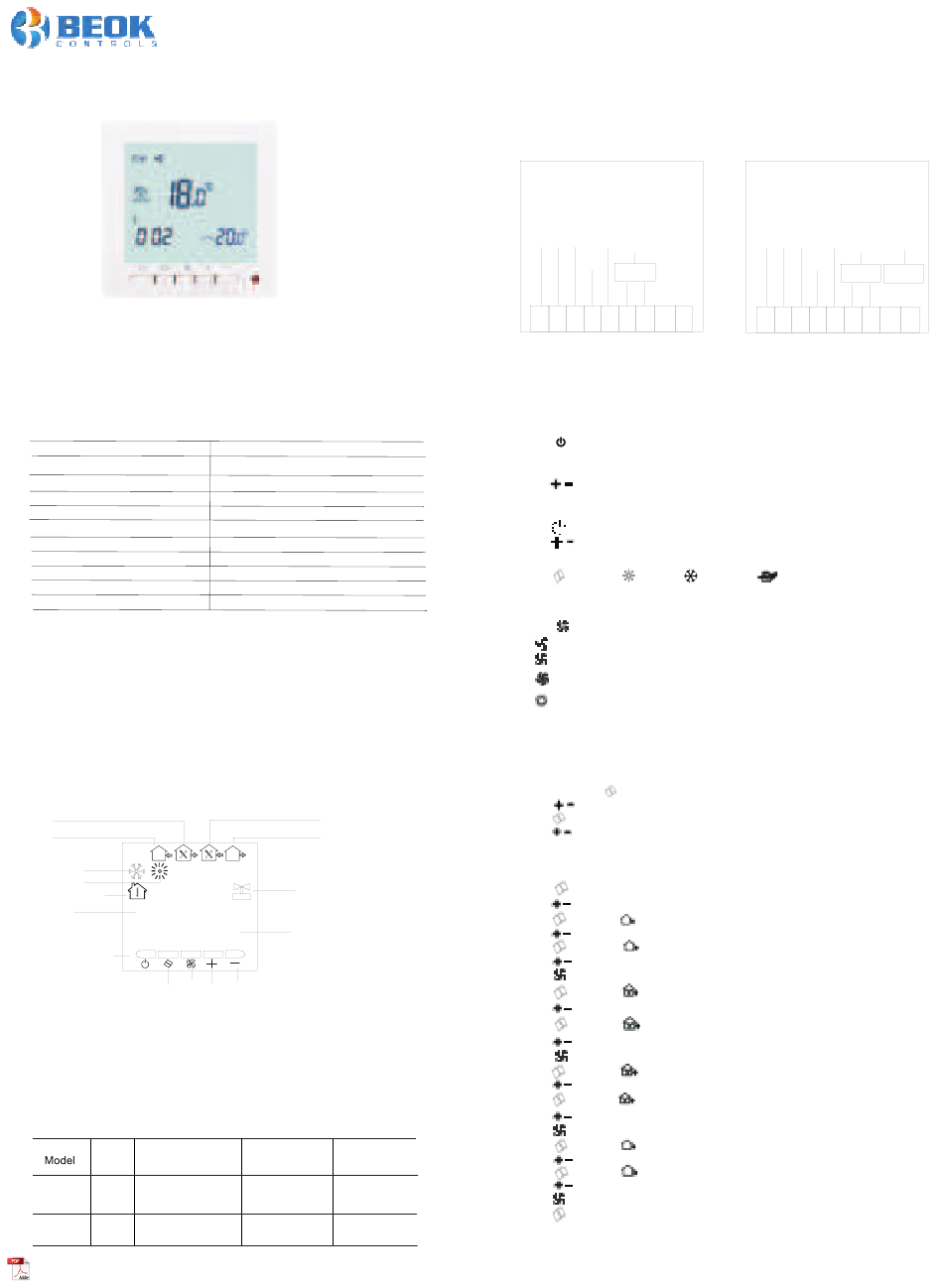

Beok Controls TOL63R Quick Manual

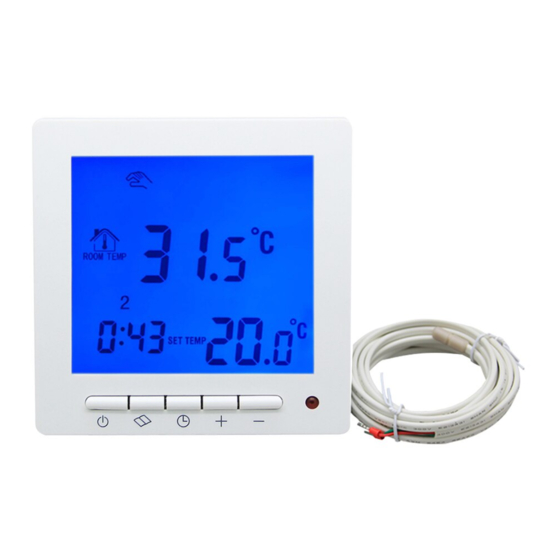

TOL63R LCD SCREEN R/C THERMOSTAT
I. Product Summary:
TOL63R-AC Series thermostats are designed to control the fans and valves
in air conditioner applications via comparison of the room temperature and
setting temperature as reaching the aim of comfort and saving energy.
II. Technical Parameter:
Power Supply
Current Load
Power Consumption
External Material
Sensing Element
Set Temp. Range
Accuracy
Dimension
Ambient Temp.
Storage Temp.
Installation Box
III. Main Functions and Characteristics
1.Square LCD screen display.
2.Blue or White backlight for choose;
3.2 pipe or 4 pipe for choose.
3 Fan speed+auto speed.
4.
5.Timer on/off function for daily or week.
6.Room temp calibration function.
7.Selectable 80mmx80mm hidden box.
8.Can be remote controlled by controller.
IV. User Interface Explanation
Timer off setting 1
Timer on setting 1
Cooling
28
Heating
Room Temp
ROOM
TEMP
1 2 3 4 5 6 7
Week
0:00
SET TEMP
Power on/off
Fan Up Down
Mode
V. Model Definition
AC 2: Two pipe, for air conditioning
AC 4: Four pipe, for air conditioning
For example: TOL63R-AC2
VI. Model Spec
Spec
Fan Speed
TOL43-AC2
2 Pipe
3 Fan speed+Auto
TOL43-AC4
4 Pipe
3 Fan speed+Auto
AC200~240V, 50/60HZ
3A~5A
<0.5W
PC+ABS (flame retardant）
NTC
10℃ - 40℃
±1℃
86x86x13.3mm
0-45℃,5-95％RH(Non-condensing）
-5~55
℃
80x80mm
Timer on setting 2
Timer off setting 2
℃
Valve on
22
℃
Set Temp
Remote
Timer Switch
controller
√
optional
√
optional
VII.Wiring Digram
AC230V 50/60HZ
L N Hi Low
Val 1
Mid
NO NC
9
1 2 3 4 5 6 7 8
2 pipe
VIII. Operation Instruction
1. Setting Power on/off
Press to turn on/off the power.
2. Setting Temperature
Press to set the temperature.
3. Setting the Clock
Press to set minute, hour and week.
Press for adjusting.
4. Setting the System Mode
Press to select heating,
5. Setting the Fan Speed
Press to select the fan speed.
is Low speed(Factory default);
is Mid speed;
is High speed;
is Auto speed.
In auto mode, the fan will run according to the comparison of room
temperature and set temperature.
6. Setting the Day Program Schedules.
Press and hold for 3 sec., hh will flash in the position of hh: mm.
Press to adjust the hour.
Press , mm will flash in the position of hh: mm.
Press to adjust the minute.
The above is the steps to set real time.
Then go into day programmable setting.
Press , 1 (for example) will flash in the position of 1234567.
Press to adjust the week.
Press , period 1 and hh will flash.
Press to adjust the hour.
Press , period 1 and mm will flash.
Press to adjust the minute.
Press to confirm the setting;
Press , period 2 and hh will flash.
Press to adjust the hour.
Press , period 2 and mm will flash.
Press to adjust the minute.
Press to confirm the setting;
Press , period 3 and hh will flash.
Press to adjust the hour.
Press , period 3 and mm will flash.
Press to adjust the minute.
Press to confirm the setting;
Press , period 4 and hh will flash.
Press to adjust the hour.
Press , period 4 and mm will flash.
Press to adjust the minute.
Press to confirm the setting;
Press , loop will display in the screen.
One day programmable setting is finished.
AC230V 50/60HZ
L N Hi Low
Val 1
Mid
NO NC
1 2 3 4 5 6 7
4 pipe
cooling or ventilation.
Val 2
NO NC
9
8
