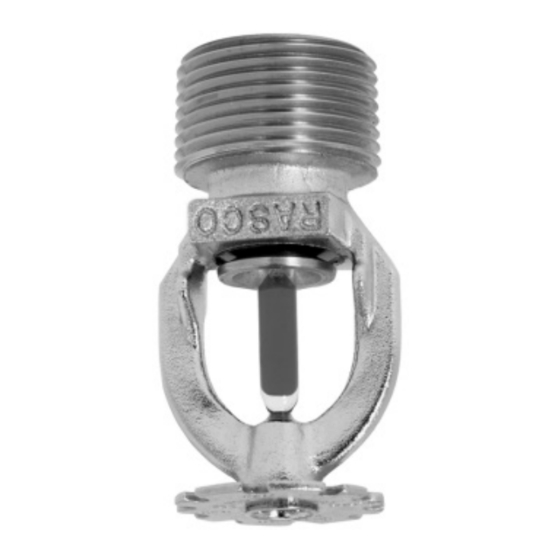

Model F1-300
Standard Response Sprinkler
Sprinkler Types
• Upright
• Pendent
• Recessed Pendent
Listings & Approvals
1. Listed by Underwriters Laboratories, Inc. and
Certified for Canada (cULus)
2. NYC MEA 258-93-E
UL Listing Category
Sprinklers, Automatic & Open (VNIV)
Product Description
Reliable Models F1-300 Upright, Pendent and
Recessed Pendent Sprinklers are high pressure rated
automatic sprinklers which can handle a maximum
service pressure of 300 psi (20,7 bar).
The Model F1-300 glass bulb sprinkler combines
durability with the attractive low profile of a decorative
sprinkler. Whether installed on exposed piping or below
an office ceiling, it is functional and attractive.
The Model F1 Recessed Escutcheon provides
convenient adjustment for Model F1-300 Sprinklers. The
two-piece construction makes field installation an easy
and rapid task. This also allows ceiling panels to later be
removed without shutting down the fire protection
system, thus facilitating maintenance of above ceiling
services.
The Models F1-300 Upright, Pendent and Recessed
Pendent automatic sprinklers are standard response
sprinklers which utilize a 5.0mm frangible glass bulb. The
glass bulb contains an accurately controlled amount of
special fluid hermetically sealed inside. The other
sprinkler parts are made of brass, copper or beryllium
nickel.
At normal temperatures, the glass bulb contains fluid
in both the liquid and vapor phases. The vapor phase
can be seen as a small bubble. As heat is applied, the
liquid expands, forcing the bubble smaller and smaller as
the liquid pressure increases. Continued heating forces
the liquid to push out against the bulb, causing the glass
to shatter, opening the waterway and allowing the
deflector to distribute the discharging water.
The temperature rating of the sprinkler is identified by
the color of the glass bulb.
The Reliable Automatic Sprinkler Co., Inc. 525 North MacQuesten Parkway, Mount Vernon, New York 10552
Model F1-300
300 psi (20,7 bar) Rated
Standard Response
Sprinklers
Recessed Pendent
Application
The most common applications for Model F1-300
sprinklers will be in fire protection systems for high rise
buildings or where the pressure entering the sprinkler
system is in excess of 175 psi (12 bar). The use of these
sprinklers will provide opportunity to reduce or eliminate
the need for pressure reducing valves.
Bulletin 155
Upright
Pendent
.C
Rev
Advertisement
Table of Contents
Related Manuals for Reliable F1-300
Summary of Contents for Reliable F1-300
- Page 1 The temperature rating of the sprinkler is identified by the need for pressure reducing valves. the color of the glass bulb. The Reliable Automatic Sprinkler Co., Inc. 525 North MacQuesten Parkway, Mount Vernon, New York 10552...
-
Page 2: Installation Data
Model F1-300 Upright and Pendent Sprinklers Installation Wrench: Model D Sprinkler Wrench Installation Data: Nominal K Factor Sprinkler Sprinkler Nominal Thread Sprinkler Identification Type Orifice Size Size Height Metric Number (SIN) ½² (15mm) ½² NPT (R½) 2.2² (56mm) R5525 Upright ²... -
Page 3: Installation
Chrome Plated Chrome Plated sprinklers. White Polyester Coated White Painted Model F1-300 Recessed Pendent Sprinklers are to be Special Application Finishes: installed with a maximum recess of ¾² (19mm). The Sprinkler Escutcheon Model F1 Escutcheon illustrated is the only recessed... - Page 4 Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable. Products manufactured and distributed by Reliable have been protecting life and property for over 80 years, and are installed and serviced by the most highly qualified and reputable sprinkler contractors located throughout the United States, Canada and foreign countries.
-
Page 5: Adjustment Features
The Reliable Automatic Sprinkler Co., Inc., 525 North MacQuesten Parkway, Mount Vernon, New York10552... - Page 6 Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable. Products manufactured and distributed by Reliable have been protecting life and property for over 80 years, and are installed and serviced by the most highly qualified and reputable sprinkler contractors located throughout the United States, Canada and foreign countries.
- Page 7 Apply a Teflon* based sealant to the sprinkler finishing operations. The DH80 can be combined in the field threads before installing in the fitting. When inserting or The Reliable Automatic Sprinkler Co., Inc., 525 North MacQuesten Parkway, Mount Vernon, New York 10552...
-
Page 8: Technical Data
removing the wrench from the sprinkler cup, care must be Coverage Area taken to prevent damage to the sprinkler. Wrench only on the square boss. DO NOT WRENCH ON ANY OTHER Maximum Coverage Area Flow Rate Pressure Width x Length PART OF THE SPRINKLER. - Page 9 Figure 1. Figure 2. Figure 3.
- Page 10 Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable. Products manufactured and distributed by Reliable have been protecting life and property for over 80 years, and are installed and serviced by the most highly qualified and reputable sprinkler contractors located throughout the United States, Canada and foreign countries.
