Standard response sprinklers

Advertisement

Quick Links

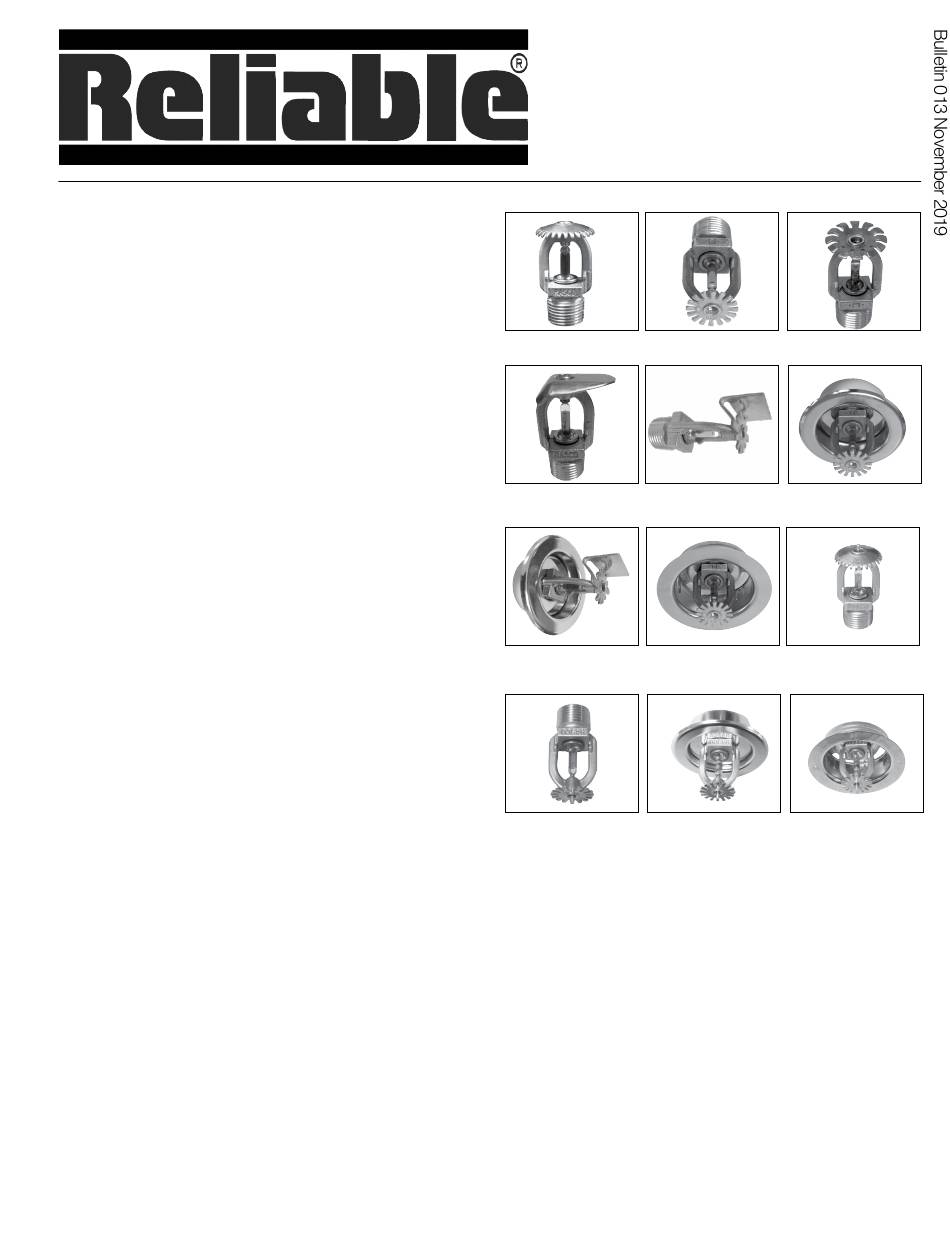

Model F156 Sprinkler Types

Standard Upright
Standard Pendent
Conventional
Vertical Sidewall
Horizontal Sidewall
Model F156 Recessed Sprinkler Types
Pendent/F1/F2/FP
Horizontal Sidewall
Model F142, F1XLH & F128 Sprinkler Types
Standard Upright
Standard Pendent
Model F142, F1XLH & F128 Recessed Sprinkler
Types
Pendent/F1/F2/FP

Approval Organizations

1. Underwriters Laboratories Inc. and certified for
Canada (cULus)
2. Factory Mutual Approvals (FM)
3. Loss Prevention Council (LPCB, UK)
4. VdS Schadenverhütung GmbH
5. EC Certificate: 0786-CPD-40237 (RA1314)
0786-CPD-40253 (RA1325)
0786-CPD-40254 (RA1375)
UL Listing Category
Sprinklers, Automatic & Open (VNIV)
Product Description

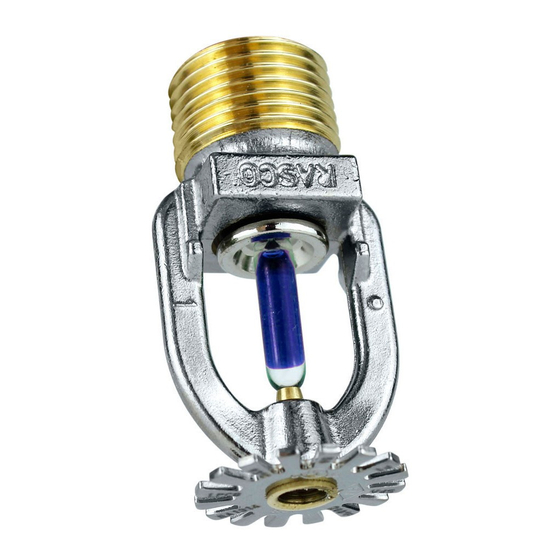

The F156, F142, F1XLH & F128 Series Glass Bulb
Sprinkler combines the durability of a standard sprinkler
with the attractive low profile of a decorative sprinkler.
Whether installed on exposed piping or in an office ceil-
ing, it is functional and attractive.
Beautifully versatile is the description for the Reliable
Models F156, F142, F1XLH & F128 Series Recessed
glass bulb sprinkler. Recessing the F156, F142, F1XLH &
F128 Series enhances its already low profile decorative
appearance, and facilitates a rapid and perfect installa-
tion.
The recessed escutcheon of the Models F156, F142,
F1XLH & F128 are highly adjustable. The two piece con-
struction makes field installation a very easy and rapid
task. This also allows ceiling panels to later be removed
without shutting down the fire protection system, thus fa-
cilitating maintenance of above ceiling services.
Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Models F1 Series
Standard Response
Sprinklers
Upright
Vertical Sidewall
Horizontal Sidewall
Recessed
Recessed
Horizontal Sidewall
Pendent/FP
XLH Recessed
XLH Pendent
Pendent F1/F2
The F156, F142, F1XLH & F128 Series Automatic Sprin-
kler utilizes a 5.0 mm frangible glass bulb. The glass bulb
consists of an accurately controlled amount of special
fluid hermetically sealed inside a precisely manufactured
glass capsule. This glass bulb is specially constructed to
provide fast thermal response.
At normal temperatures, the glass bulb contains the
fluid in both the liquid phase and in the vapor phase. The
vapor phase can be seen as a small bubble. As heat is
applied, the liquid expands forcing the bubble smaller
and smaller as the liquid pressure increases. Continued
heating forces the liquid to push out against the bulb,
causing the glass to shatter, opening the waterway and
allowing the deflector to distribute the discharging water.
The F156, F142, F1XLH & F128 Series Sprinkler tem-
perature rating is identified by the color of the glass bulb
capsule as well as frame color where applicable.
Bulletin 013 November 2019
Pendent
Conventional
Recessed
Pendent/F1/F2
XLH Upright
XLH Recessed
Pendent FP
