Reliable F1 Series Quick Start Manual

Features
• Standard Response or Quick Response
• Conventional deflector
• Low profile, compact design
• Available in a wide variety of finishes
Product Description
Conventional (or "old-syle" sprinklers) direct approximately
40% of their water discharge up against the ceiling and the
remainder downward to the floor, and may be used in either
the upright or pendent position.
Reliable Model F1 Conventional Sprinklers are standard
response fire sprinklers utilizing a 5.0 mm glass bulb thermal
element.
Reliable Model F1FR Conventional Sprinklers are quick
response fire sprinklers utilizing a sensitive 3.0 mm thermal
glass bulb element.
These sprinklers are available in 5.6 (80 metric) and 8.0 (115
metric) K factor.
When used in the pendent position, sprinklers may be
installed exposed or surface mounted using escutcheons
such as the Reliable Models B, C, or HB (reference Technical
Bulletin 204).
Table A provides a summary of the approvals and availability
of specific Model F1 and F1FR Series Conventional sprinkler
configurations. Additional technical information for each
sprinkler model is provided on the following pages.
F1 and F1FR Series Conventional Sprinklers
Sprinkler K-Factor gpm/
psi (lpm/bar
Model 1/2
F1-56 5.6 (80)
F1FR56 5.6 (80)
F1-80 8.0 (115)
F1FR80 8.0 (115)
Orientation Response
)
1/2
Conventional SR
Conventional QR
Conventional SR
Conventional QR
www.reliablesprinkler.com
Conventional Sprinklers

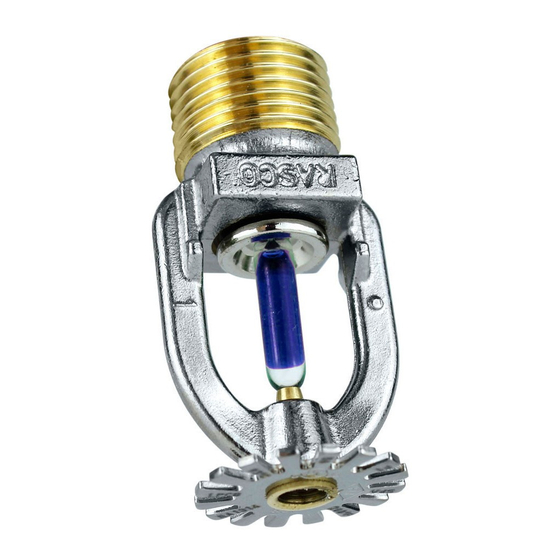

Model F1-56 Conventional
Model F1-80 Conventional
Note: Not all versions of
the product are shown.
Max. Working
Listings &
Approvals Pressure psi (bar)
LPCB, VdS, CE 175 psi (12 bar)
LPCB, VdS, CE, WM 175 psi (12 bar)
LPCB, VdS 175 psi (12 bar)
LPCB 175 psi (12 bar)
Bulletin 182 January 2022
F1 and F1FR Series
K-factor 5.6 (80) and 8.0 (115)
Model F1FR56 Conventional
Model F1FR80 Conventional
Table A
Sprinkler
Identification
Number (SIN)
RA1375
RA1475
R1772
R3672
